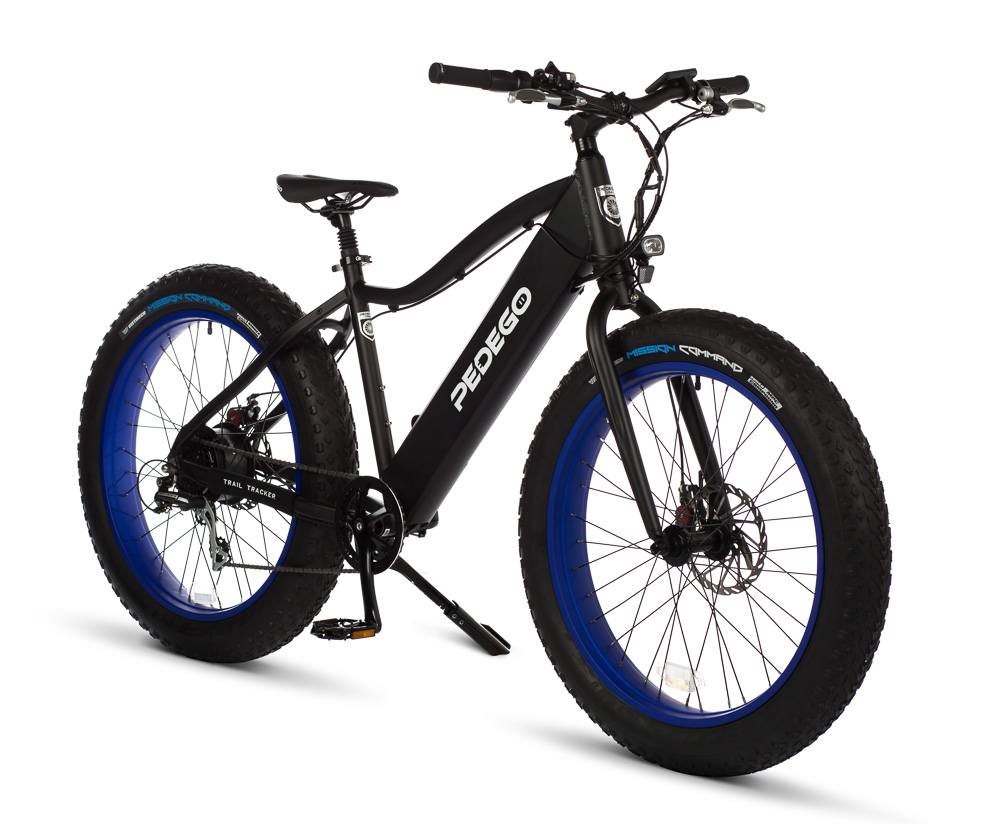

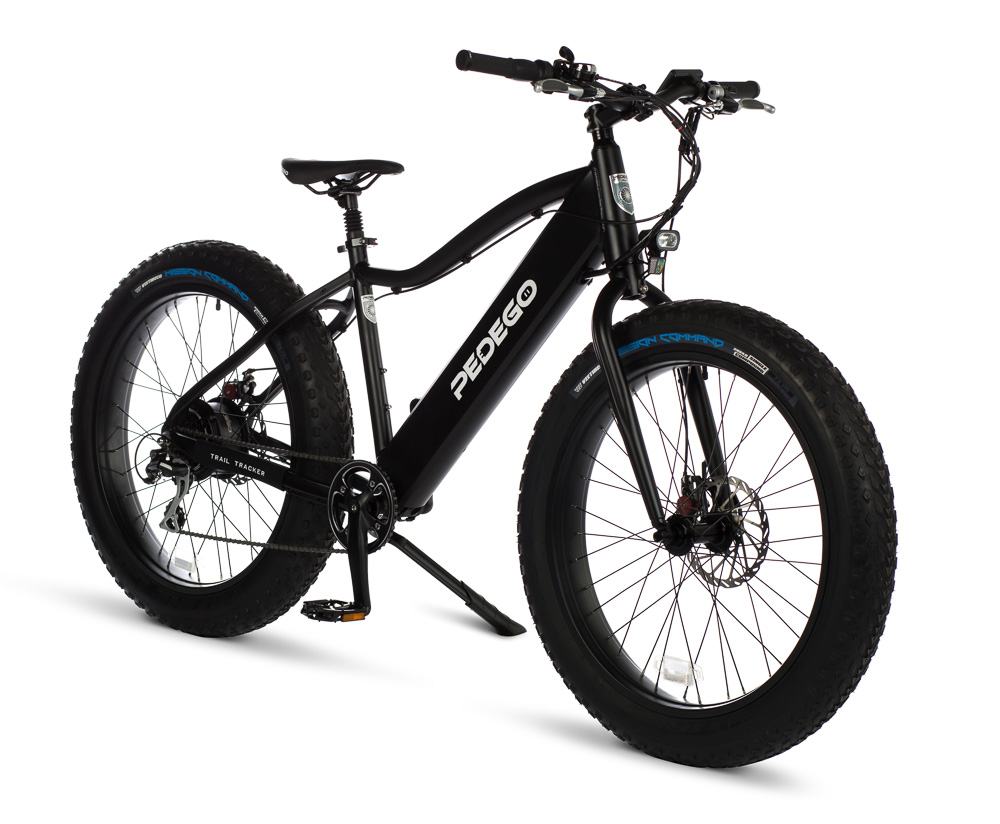

Pedego – Trail Tracker: 26″ Edition
$1,846.00
Pedego Trail Tracker 26″ Adventure E-Bike: Dominate off-road trails with fat 4.0″ tires, a powerful 48V 749W motor (60Nm torque), and your choice of cadence or torque sensing (5 levels each). The custom PedalSense® system and twist throttle put you in control, while the suspension seatpost (and optional Rockshox Bluto fork) smooths out rough terrain. With a 3.5″ LCD display, integrated battery, and bright front light, this UL-certified e-bike is ready for serious adventure.
Description
Pedego Trail Tracker: Conquer Any Trail with Confidence
The Pedego Trail Tracker is built for adventure, offering a smooth and powerful riding experience across challenging terrains. Its thoughtful design ensures comfort and ease, making it perfect for those seeking to explore off-road with unmatched reliability and control. With best-in-class features, this e-bike is your ultimate companion for dirt paths, forest trails, and mountain adventures.
Trail-Ready Performance and Control
Navigate rugged terrain with confidence thanks to the Trail Tracker’s premium componentry. The 26″ x 4.0″ fat tires provide exceptional traction and stability on loose surfaces, while the 48V 749W nominal motor (60Nm torque) delivers smooth, responsive power exactly when you need it. The advanced PedalSense® system offers both cadence and torque sensing with 5 levels each, allowing you to fine-tune your ride. For instant power, the custom twist-and-go throttle with LED indicator provides on-demand acceleration.
Designed for Comfort on Rough Terrain
Long rides on bumpy trails are no match for the Trail Tracker’s comfort features. The 27.2mm coil-sprung suspension seatpost with 40mm of travel and adjustable preload absorbs impacts, while the optional Rockshox Bluto RL suspension fork (80mm travel, adjustable rebound and compression/lockout) can handle the biggest obstacles. The integrated downtube battery keeps weight low and centered for balanced handling, and the bright front LED light ensures visibility on twilight rides.
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| General Info | Model | Trail Tracker: 26″ Edition |
| Weight Limit | 250 LB | |
| Ideal Use | Adventure | |
| Speed | UP TO 28 MPH* (Class 3 with dealer software upgrade) | |
| Range | UP TO 56 MILES | |
| Pedal Assist | 5 Levels Cadence Assist | 5 Levels Torque Assist | |
| Rider Height | 5’7″+ | |
| Electronics | Motor | Black 48V Brushless Geared Rear Hub Motor; 749 Watt Nominal Power Rating; 60Nm Torque; Quick Disconnect Cable with Waterproof Connection |
| Battery | 48 Volt 14 Amp Hour with Premium Lithium Ion 18650 Cells; Smart Bike Technology with CANBUS Communication; Auto Sleep Function | |
| Charger | Pedego 2 Amp Smart Charger with a Completely Sealed Case and Charge Indicator Light | |
| Controller | 48 Volt 20 Amp Sine Wave Controller with Custom PedalSense® Software and Waterproof Connections | |
| Throttle | Custom Pedego Twist and Go Throttle with Color LED Assist Indicator for Maximum Safety; Threaded Waterproof Connection | |
| PedalSense® | Free Ride Mode (No Power), Five Levels of Pedal Assist with Throttle Override, and Torque or Cadence Mode, Throttle Only Mode | |
| Display | 3.5″ Backlit LCD Screen with CANBUS Communication; 4 Buttons to Control Electronics, Toggle Info Displayed, and Customize Settings; USB Charging Port; Waterproof Threaded Connection; Custom PedalSense® Software | |
| Top Speed | Class 2: 20 MPH Max, with Pedal Assist and Throttle Assist / Class 3: 28 MPH Max, with Pedal Assist Only (Software Upgrade Available Through Pedego Dealer Only) | |
| Drivetrain | Derailleur | SRAM GX 10-Speed Rear Derailleur; Exact Actuation™ for Precise and Dependable 10-Speed Performance; Cage Length = Short |
| Cassette | SRAM PG-1030 10-Speed Cassette, 11-36T; Smooth, PowerGlide II™ Technology; Durable Nickel Chrome Finish | |
| Shifters | SRAM GX 10-Speed Trigger Shifter; SRAM X-Glide™ Shifting, Exact Actuation™ | |
| Bottom Bracket | 100mm x 167mm Square Taper Spindle with Sealed Cartridge Bearings; Integrated Torque Sensor | |
| Chain | KMC X10-EPT 10 Speed; RustBuster Treatment; 132 Links | |
| Crank | Black 3 Piece Crank with 5x130mm 52T Chainring; 170mm Forged Aluminum Crank Arms; Integrated Double Chainring Guard | |
| Pedals | Black Pedego Aluminum Platform Pedal; 9/16″ Spindle; Polymer DU Bushing; Integrated Pedal Reflectors | |
| Brakes | Calipers | Star Union 2 Piston Forged Aluminum Hydraulic Disc Brake; Mineral Oil Brake Fluid |
| Levers | Star Union 3 Finger Lever; Cast Aluminum with Motor Cutoff Switch for Maximum Safety | |
| Pads | Low Noise Resin Brake Pads with Steel Backing Plate | |
| Rotors | Stainless Steel; 180mm Diameter; Stiff, Durable Design | |
| Components | Frame | 6061-T6 Aluminum Alloy; 1 ?”-1 ½” Tapered Head Tube; Integrated Downtube Battery Mount; Internal/External Cable and Wire Routing |
| Fork (Standard) | 26″ Fat Tire Rigid High Tensile Steel; 1 ?”-1 ½” Tapered Threadless Steerer Tube; Quick Release 15mm x 150mm Thru-Axle; Disc Brake Mounts | |
| Fork (Aftermarket) | Rockshox Bluto RL; 80mm Travel, Solo Air Spring, 51mm Fork Offset; Motion Control Damper with Rebound and Compression/Lockout Adjustments | |
| Headset | Black Zero Stack Semi-Integrated; 1 ?” – 1 ½” Threadless Tapered; ZS44/28.6 | ZS56/40 | |
| Seatpost | Black 27.2mm x 350mm Coil Sprung Suspension Seatpost with 40mm of Travel and Adjustable Preload | |
| Saddle | MTB Style with Single Density Lightweight Foam; Chromoly Rails; Center Channel Relief; 270mm L x 144mm W | |
| Rims | 26″ x 3″ Fat Tire Extra Strength Double Wall; Lightweight Aluminum Alloy; 12G x 36 Hole | |
| Spokes | Front: Black 13 Gauge Heavy Duty Stainless Steel with Brass Nipples. Rear: Black 12 Gauge Heavy Duty Stainless Steel with Brass Nipples | |
| Grips | Pedego Rubber Lock On Grips; Diamond Grip Pattern | |
| Handlebar | Black MTB Riser; Aluminum Alloy; 31.8mm Stem Clamp Diameter; 9° Backsweep, 5° Upsweep; 20mm Rise; 720mm Width | |
| Stem | Black 3D Forged Aluminum Alloy; 80mm Length; 7° Rise; 31.8mm Handlebar Clamp Diameter; 1 ? (28.6mm) Threadless Steerer Tube Clamp Diameter | |
| Tires | Tires | Vee Rubber Mission Command 26″ x 4.0″; Multi Purpose Rubber Compound, 58 A Durometer; Wire Bead; 8-20 PSI; 26 x 4.0″ Vee Rubber Inner Tube, Schrader Valve |
| Extras | Lights | Front: LED with Adjustable Mount 60 Lux |
| Kickstand | Black Ursus Kaiser 69; Aluminum Alloy Center Kickstand; Adjustable Length Composite Foot | |
| Toolkit | Custom Pedego Tool Kit: 6″ Adjustable Wrench (Up to 15mm), 12/13G Spoke Wrench, T25 Torx Wrench, 6mm Hex Wrench, 5mm Hex Wrench with #2 Phillips Screwdriver, 4mm Hex Wrench | |
| Weight | Bike (No Battery) | Trail Tracker Classic 26″: 58.8 LB; Gorilla Edition: 62.2 LB; TT Step Thru 26″: 60 LB |
| Battery | 48V/14Ah: 8.2 LB |
Additional information

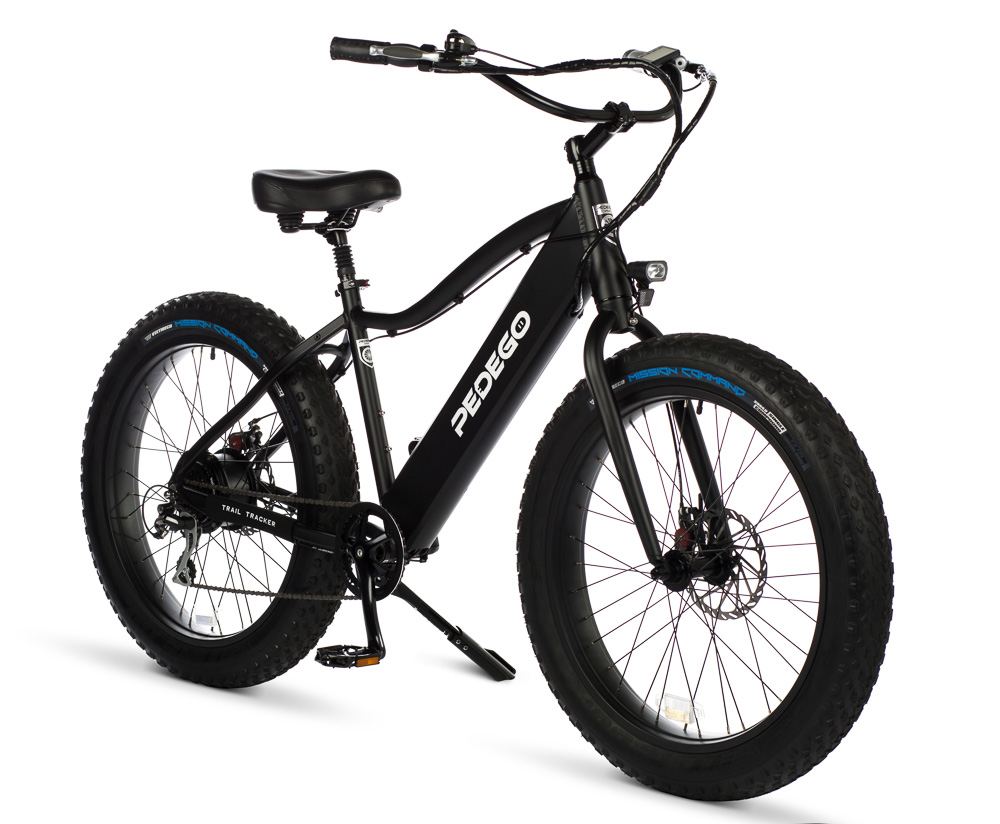

| Frame Style | 26″ Classic, 26″ Classic: Gorilla Edition, 26″ Step Thru, 26″ Step Thru: Gorilla Edition |
|---|---|

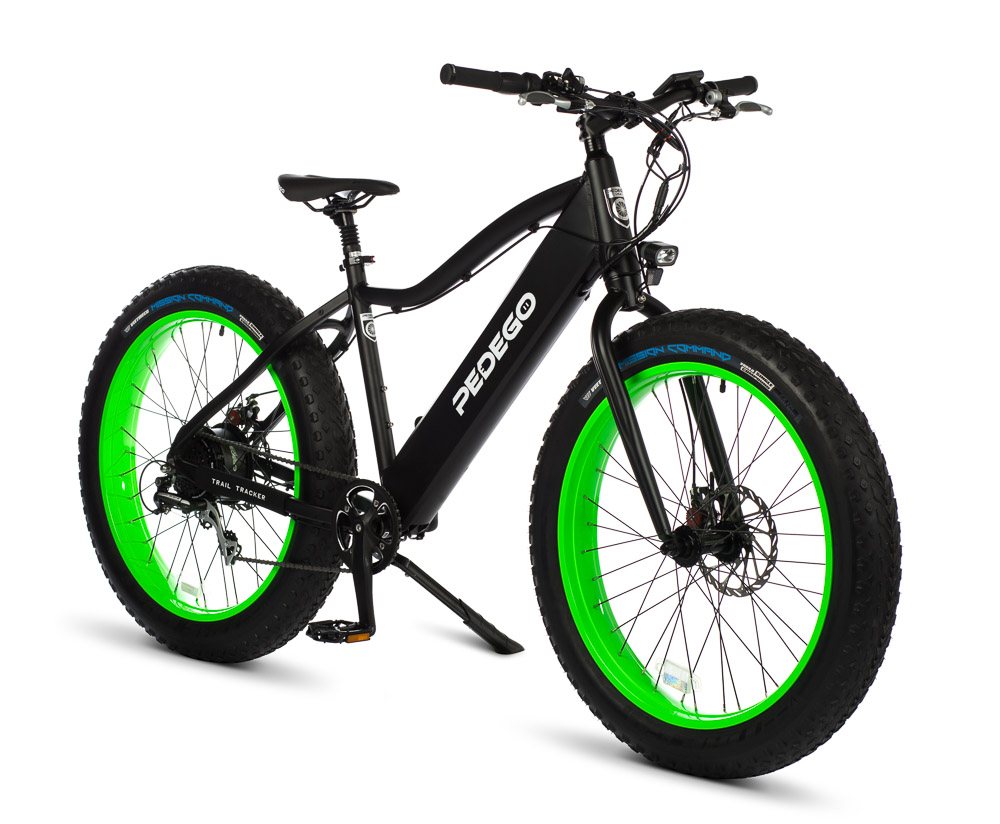

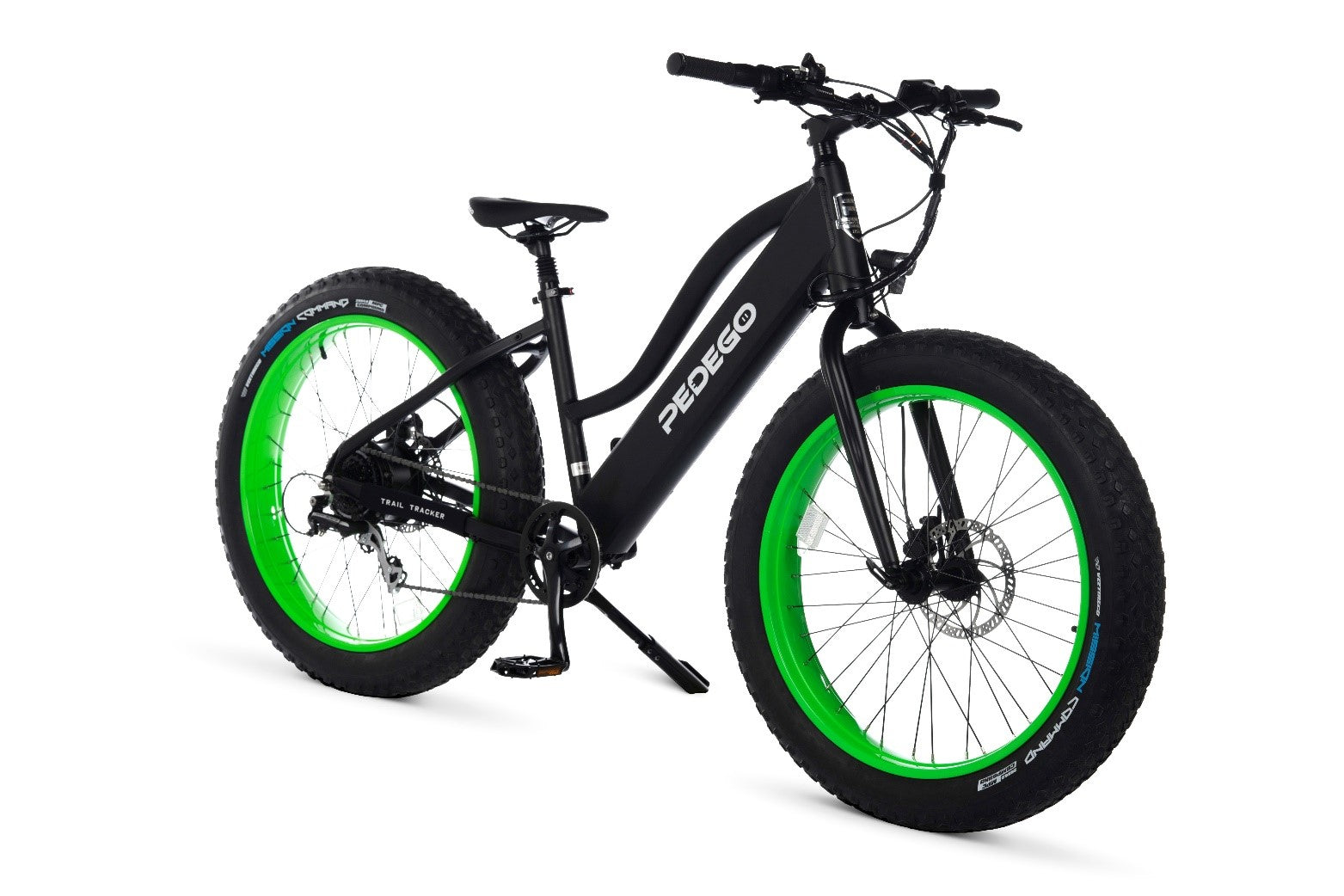

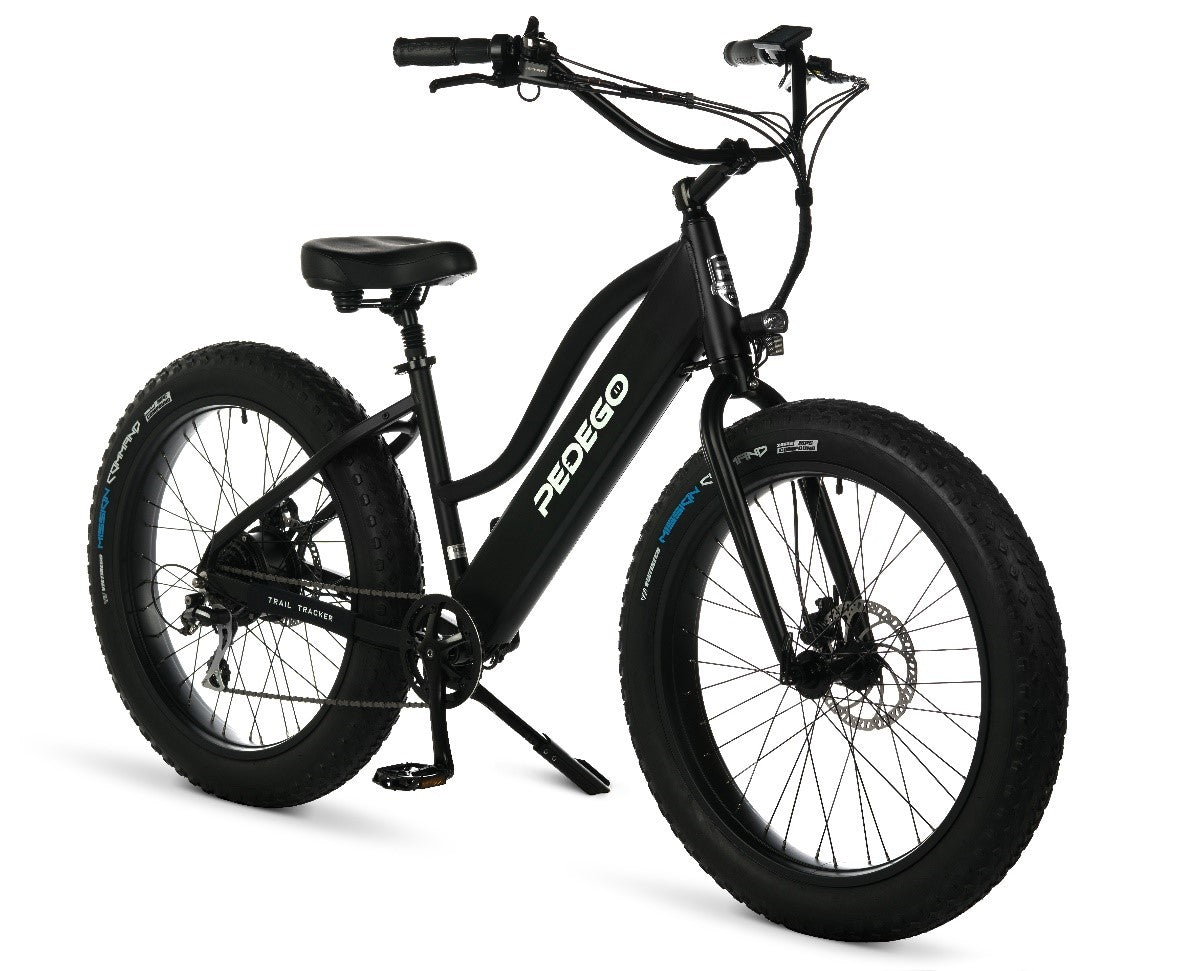

| Rim Color | Black, Blue, Lime Green, Red |
