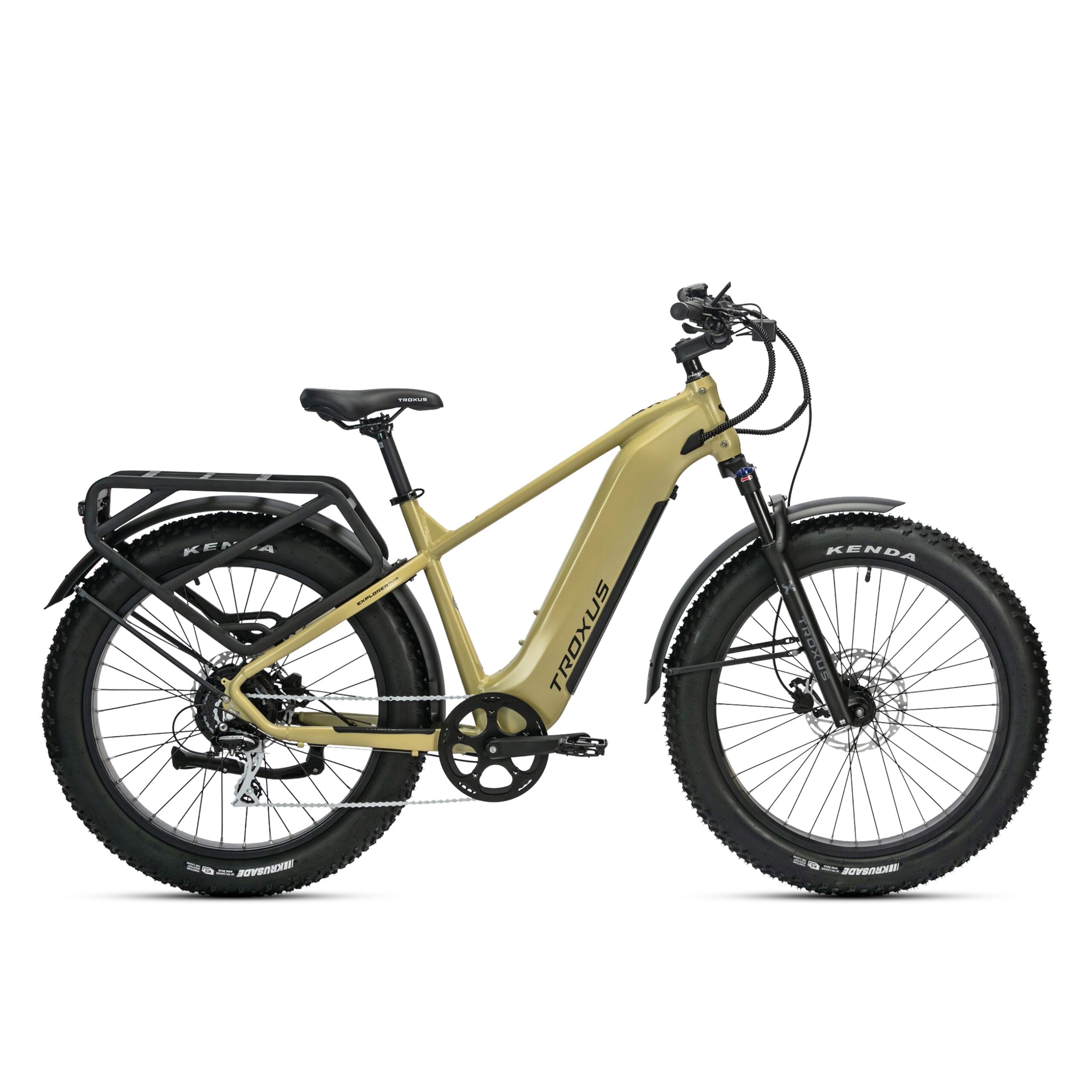

Troxus – Explorer Plus MIK Step-Over
Original price was: $2,499.00.$1,999.00Current price is: $1,999.00.

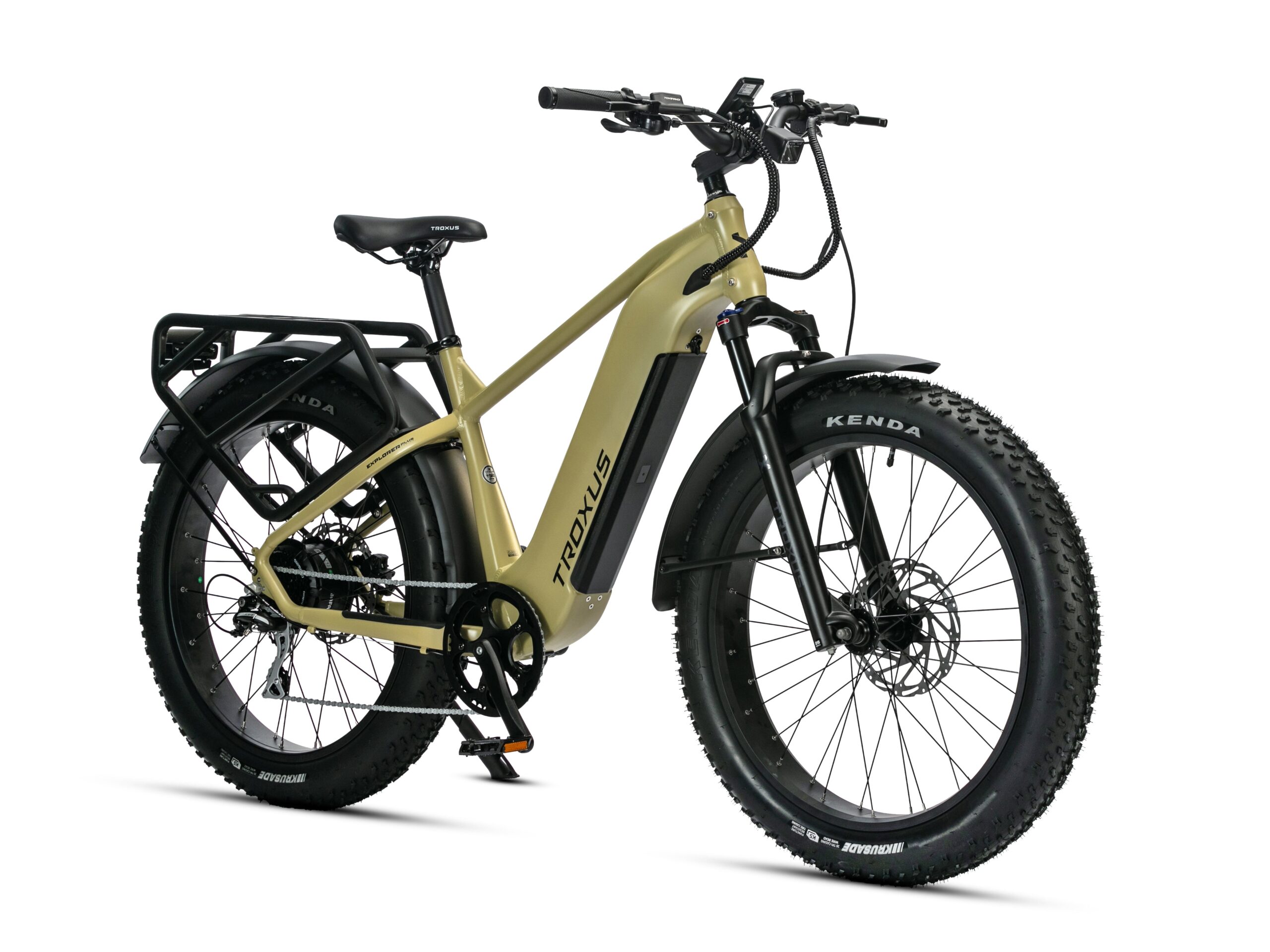

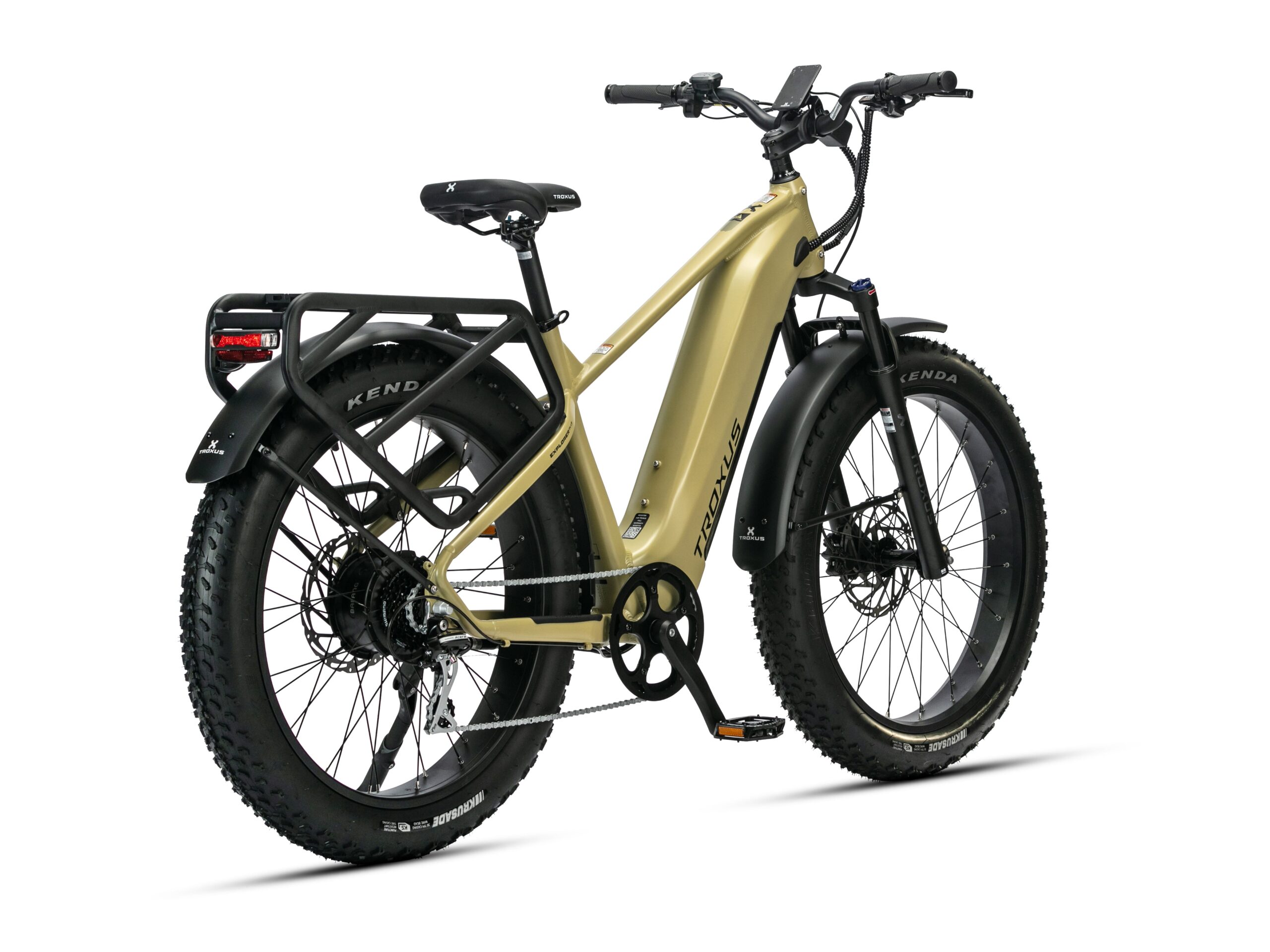

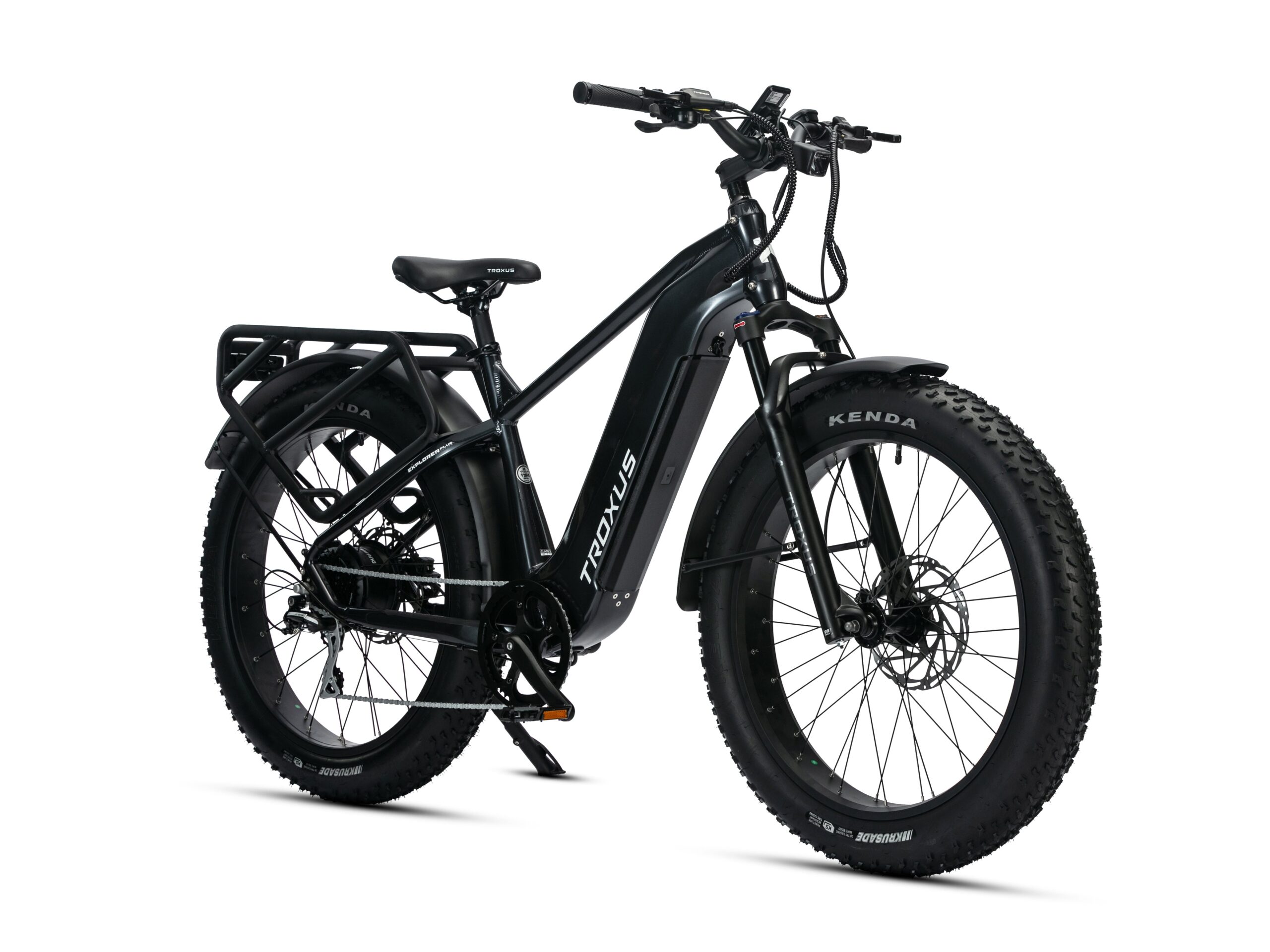

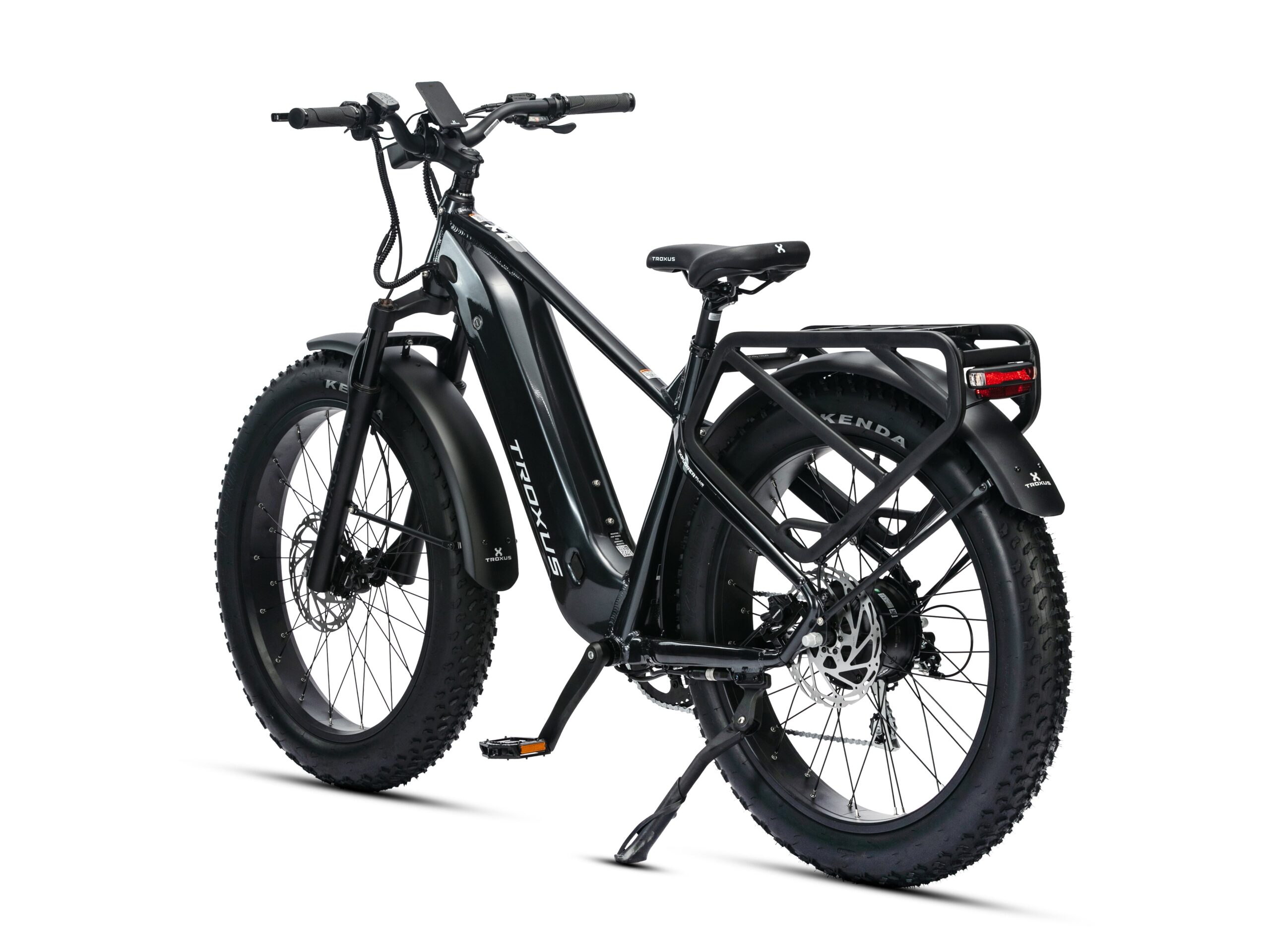

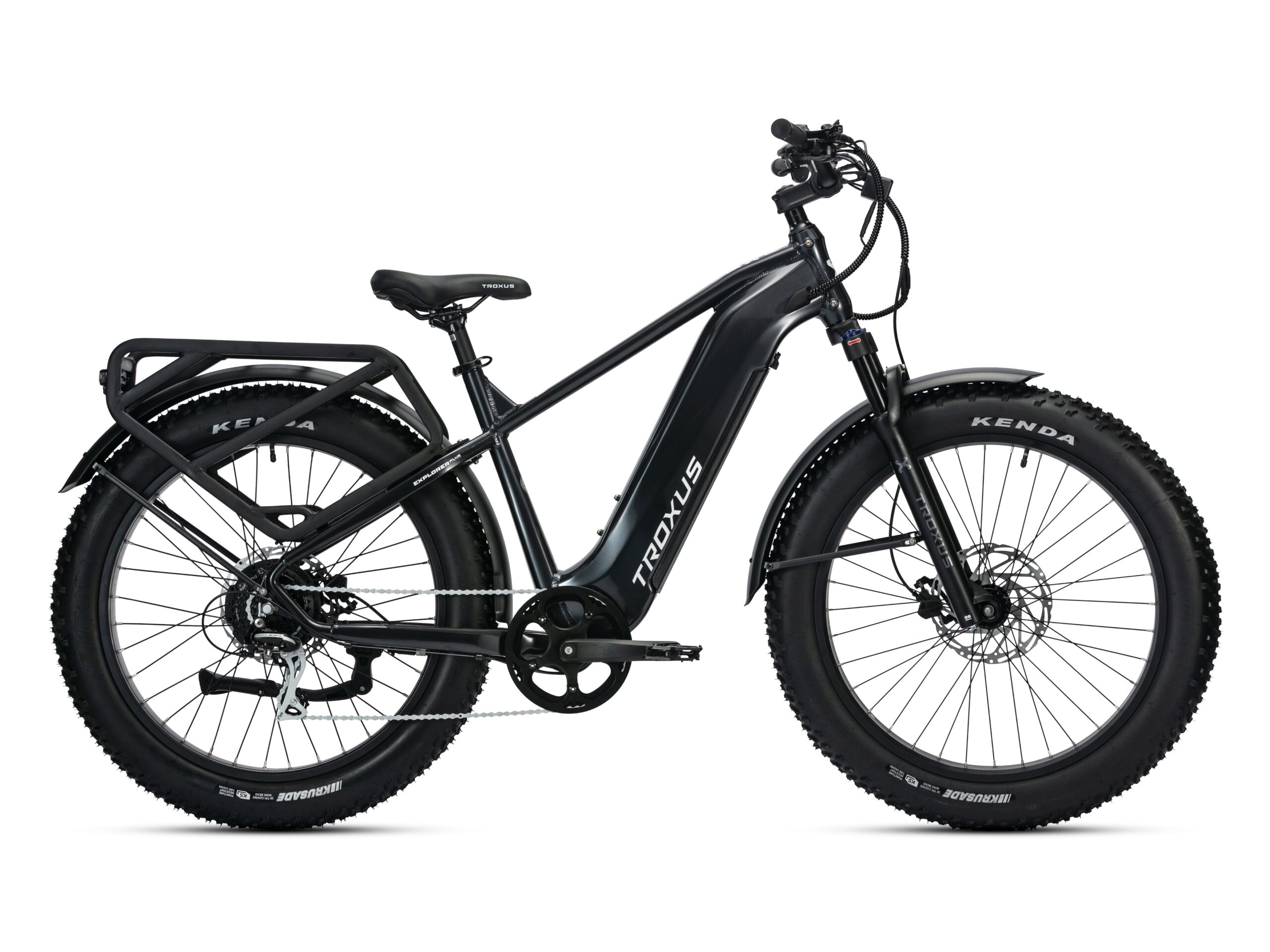

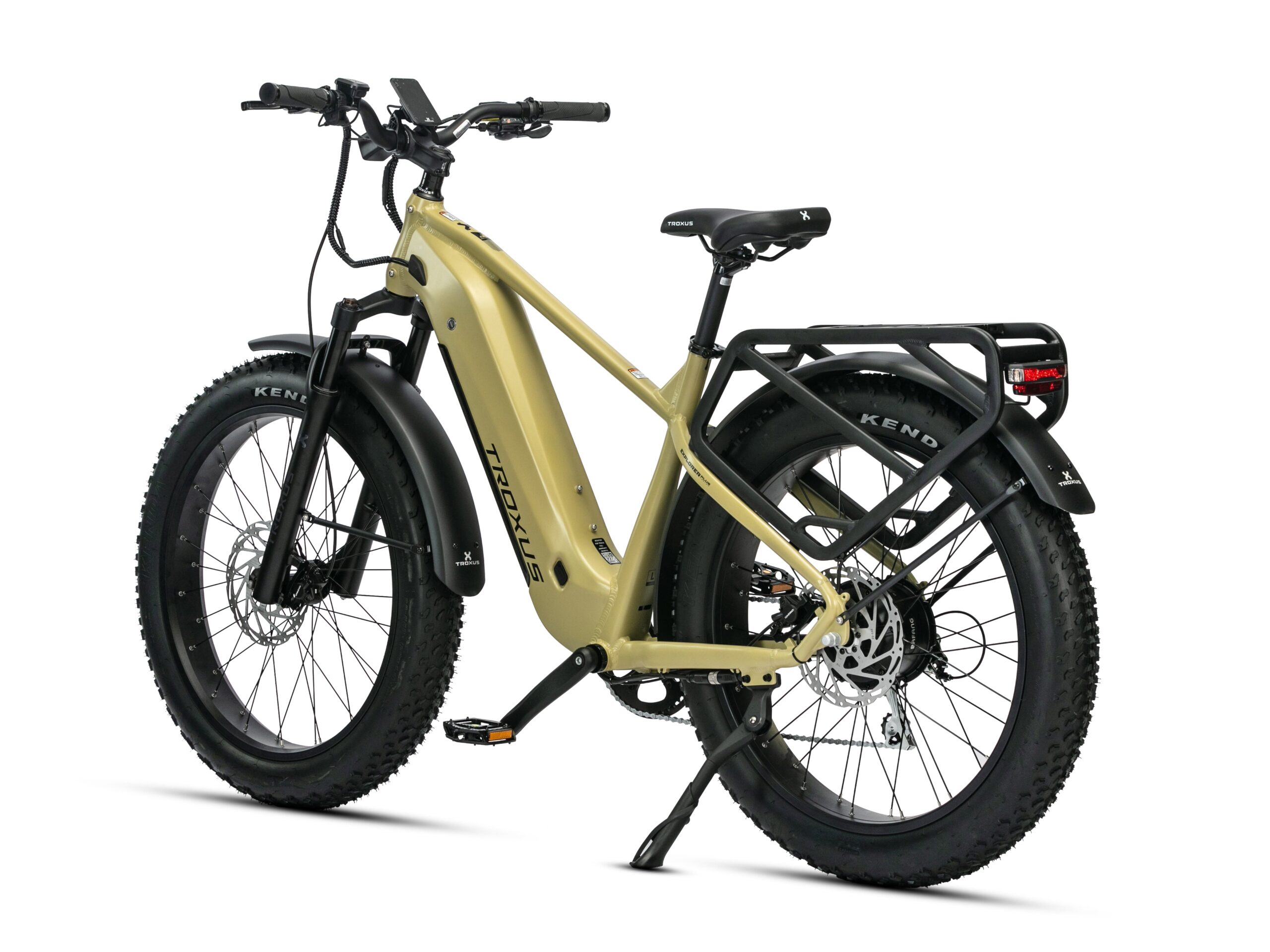

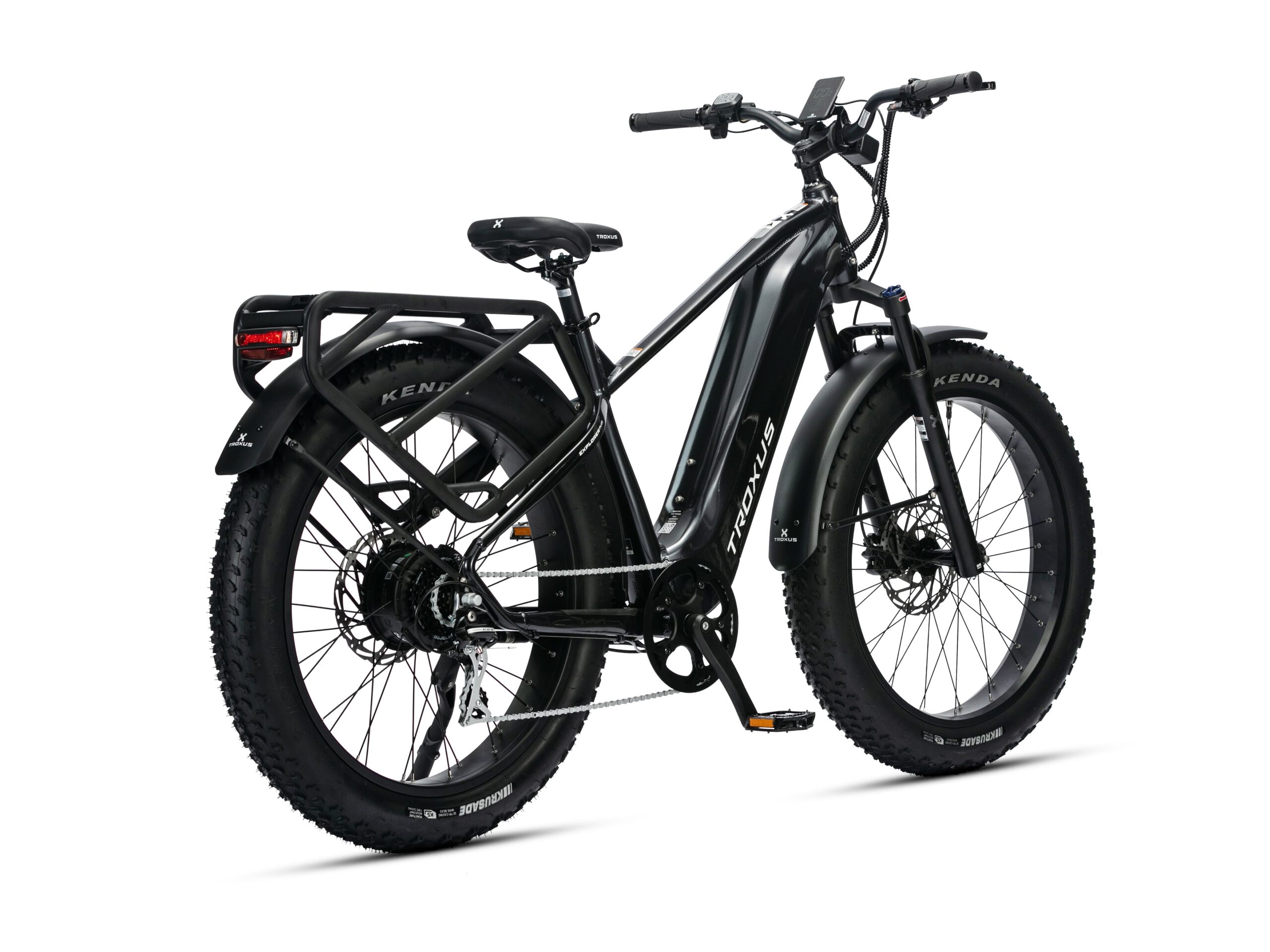

Conquer big adventures with the Troxus Expedition Step-Over fat tire ebike. Powered by a Bafang® 750W hub motor with 86Nm of torque and a 960Wh Samsung® cell battery for up to 90 miles of range. The innovative switchable torque/cadence sensor and Bluetooth color display with integrated turn signals put you in total control. With a MIK-compatible 100 lb capacity rear rack, 4.0″ Kenda® tires, and 400 lb load capacity, it’s built for heavy-duty exploration. Large step-over frame fits riders 5’8″ – 6’4″.
Description
Troxus Expedition Step-Over: Conquer Big Adventures
Big tires for big adventures. The Troxus Expedition Step-Over is built for riders who demand rugged performance and exceptional carrying capacity. Whether you’re heading into the backcountry for hunting and fishing, hauling gear across town, or exploring where the road—or trail—takes you, this fat tire ebike delivers exceptional power, range, and stability. With its robust step-over frame and premium components, the Expedition is your ultimate companion for epic journeys.
Power and Range to Explore

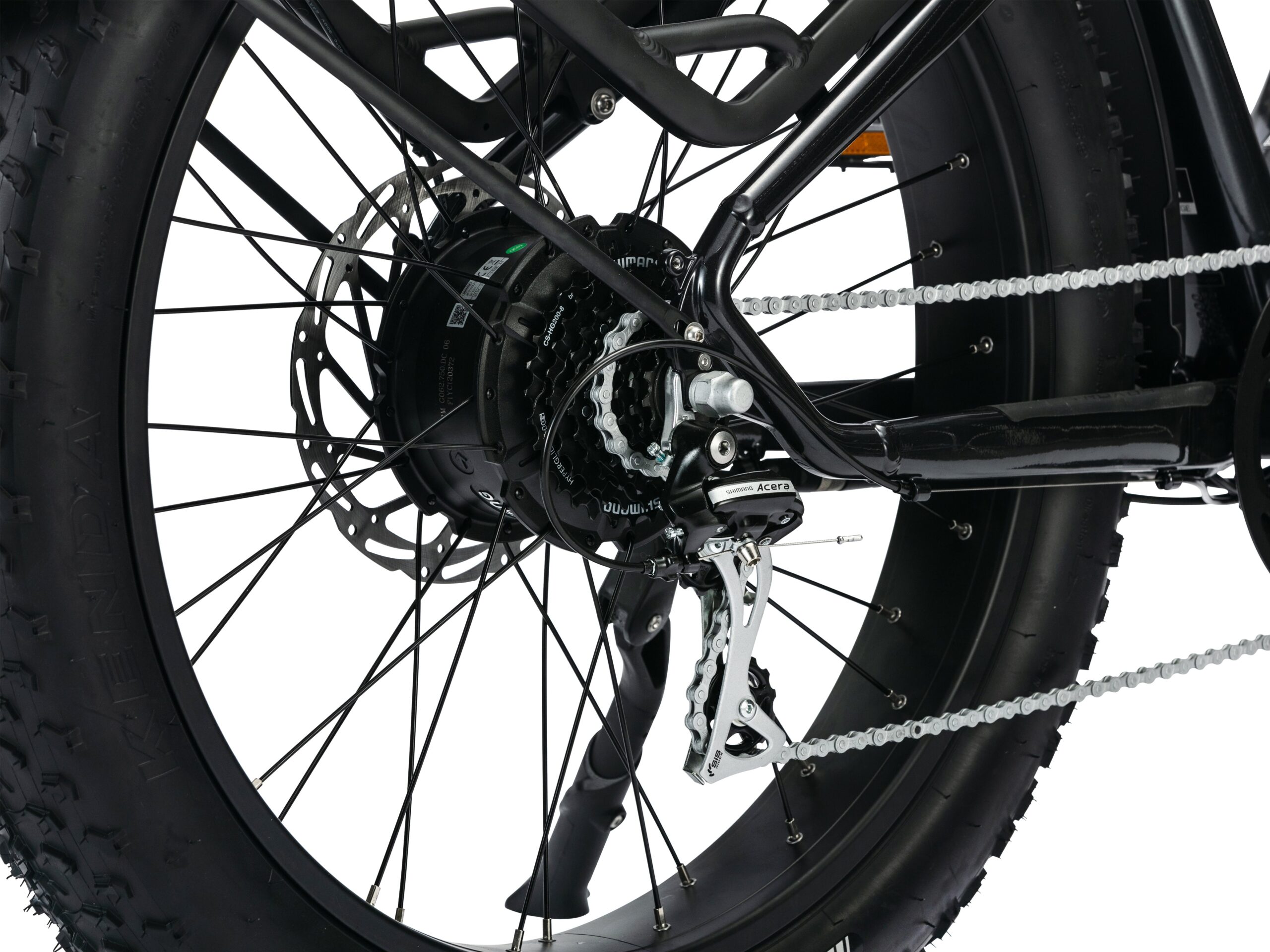

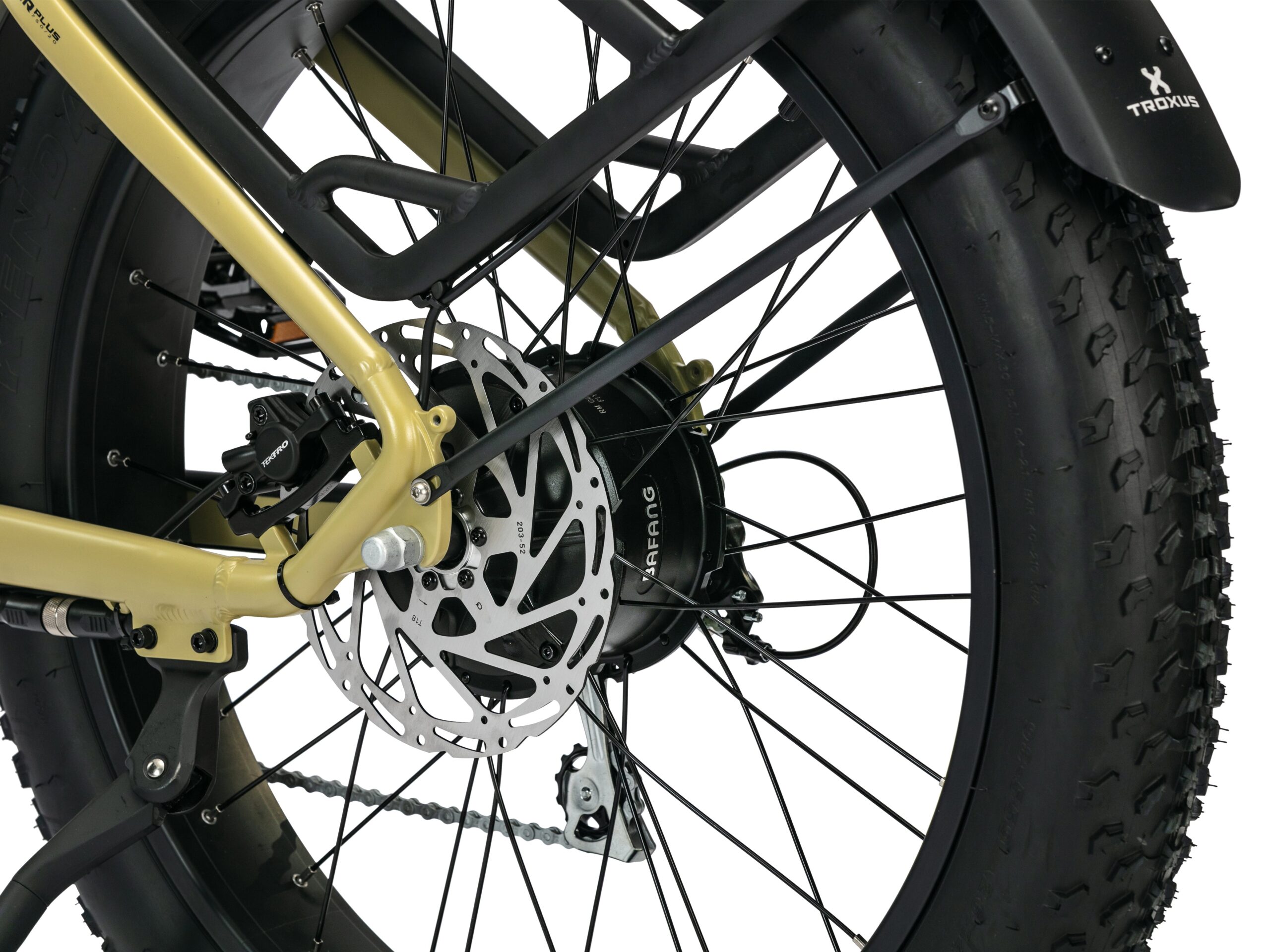

At the heart of the Expedition lies a premium Bafang® 750-watt hub-drive motor, delivering exceptional 86Nm of torque for conquering steep hills and powering through soft terrain. Paired with a long-range 48V 20Ah (960Wh) battery featuring high-quality Samsung® cells, you’ll have the power and stamina needed for extended expeditions, with a maximum range of up to 90 miles on a single charge. The battery is UL-2271 certified for the highest safety standards. With a throttle speed of 20 mph and pedal assistance up to 28 mph, you’re always in command of your adventure.
Intelligent Control with Switchable Sensor Modes

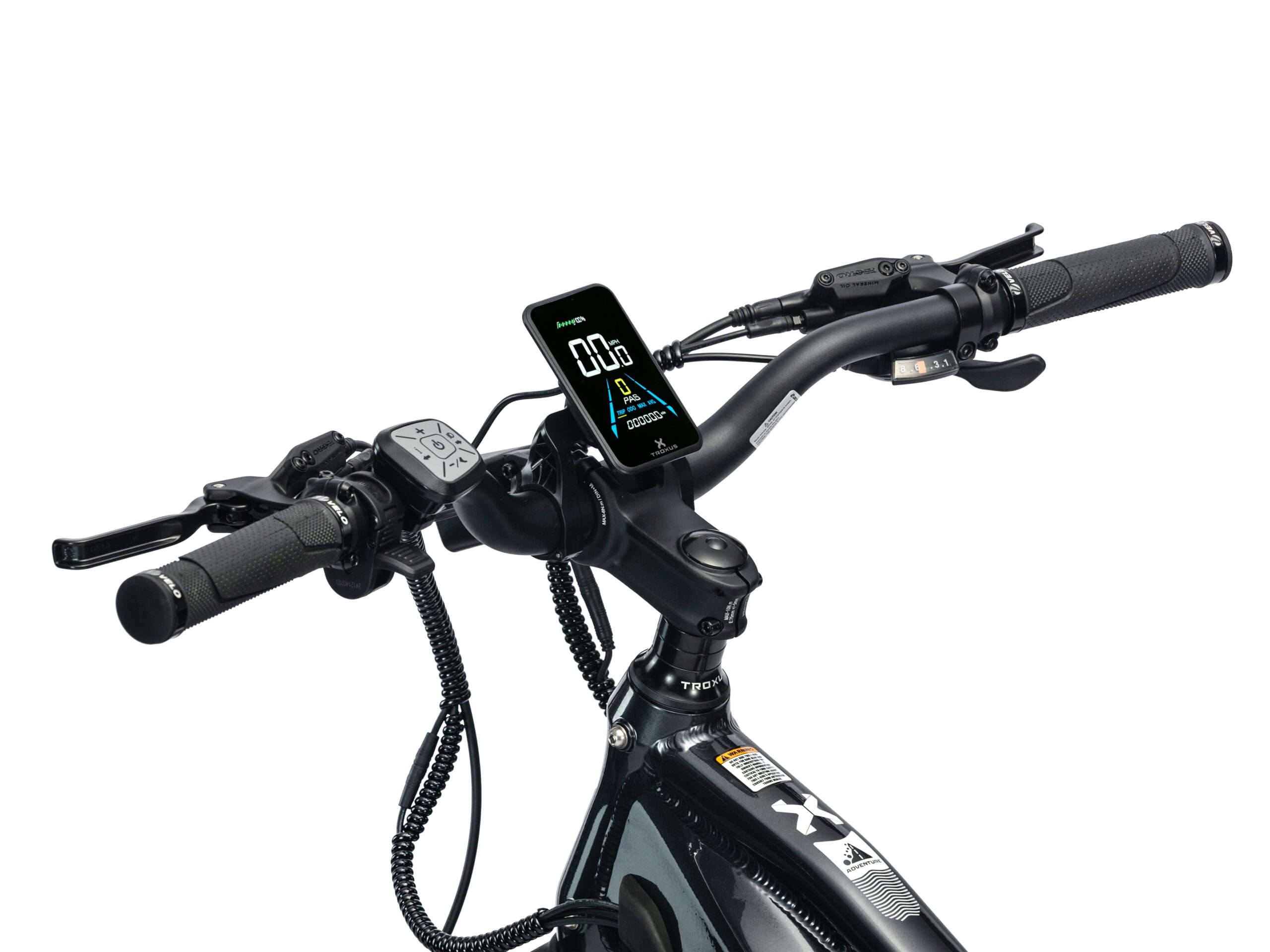

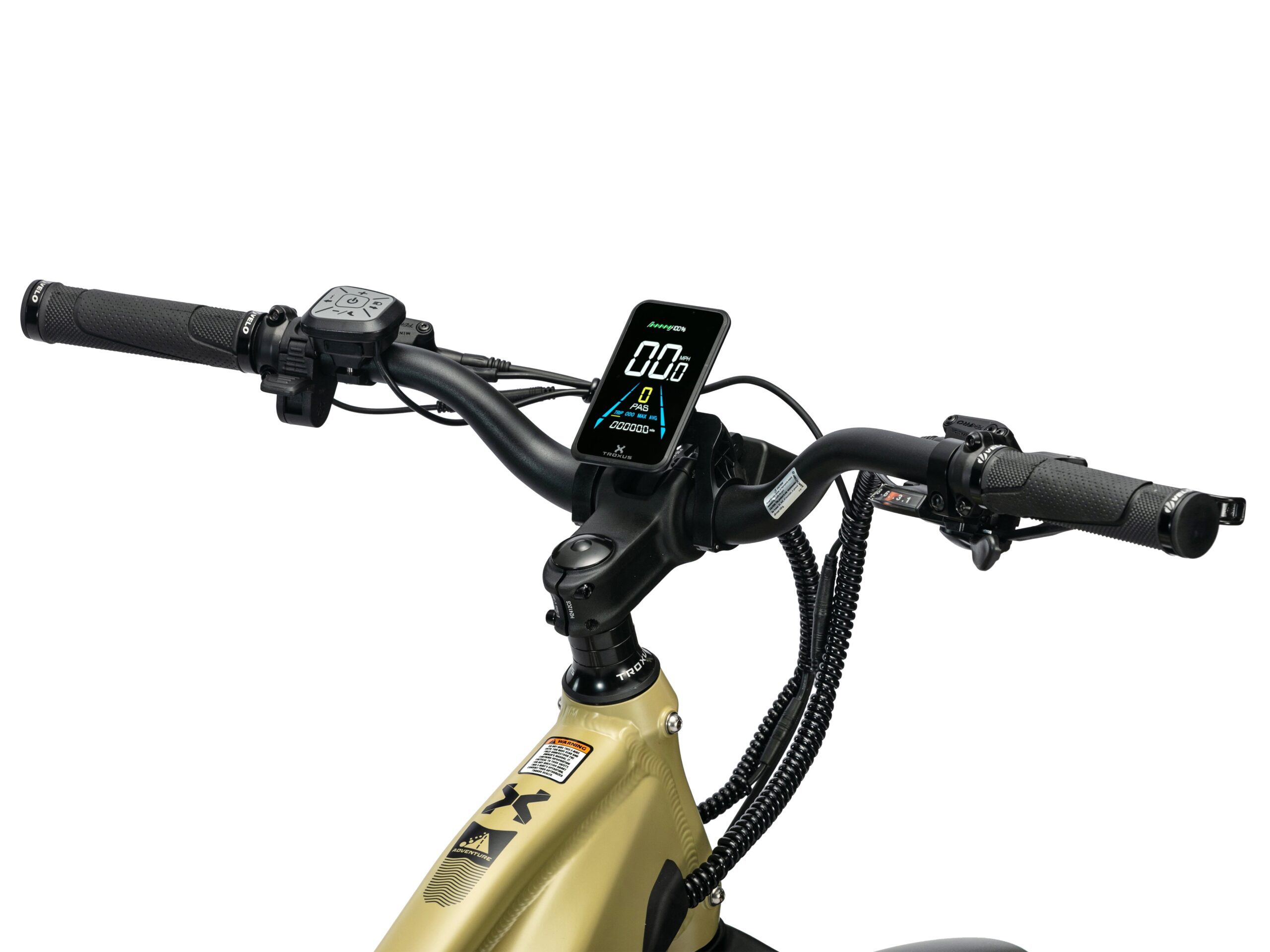

The Expedition features an innovative switchable sensor system, allowing you to choose between torque and cadence sensor modes. Experience the natural, responsive feel of torque sensing when you want a dynamic, engaging ride through technical terrain, or switch to cadence sensing for consistent assistance on long, steady stretches. This advanced system is controlled via a Bluetooth-enabled color display that puts all your ride data at your fingertips. The display integrates seamlessly with the bike’s lighting system, featuring an 80 Lux front light and a rear light with integrated turn signals and hazard lights for enhanced safety and visibility in any condition.
Built to Carry Heavy Loads

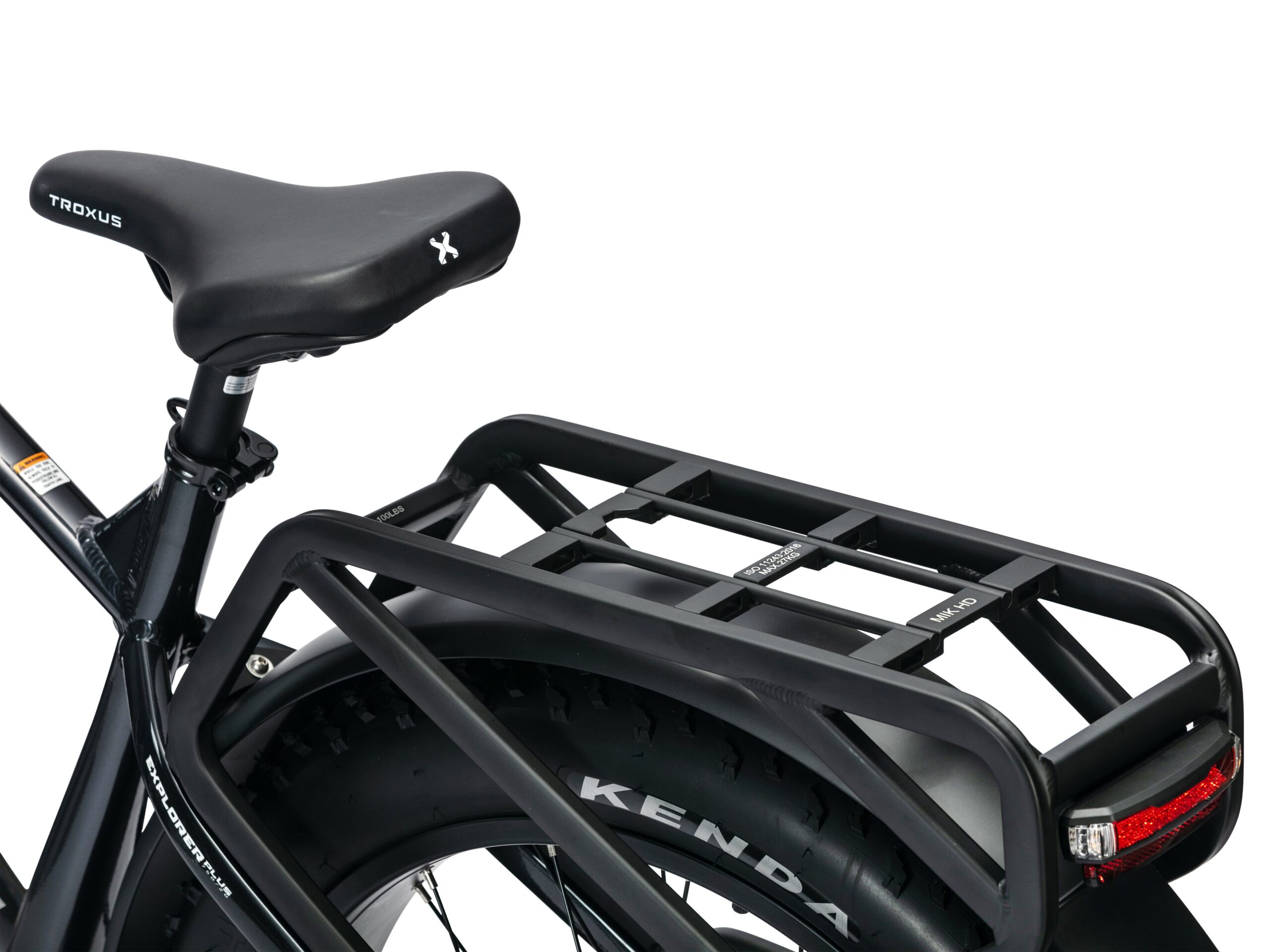

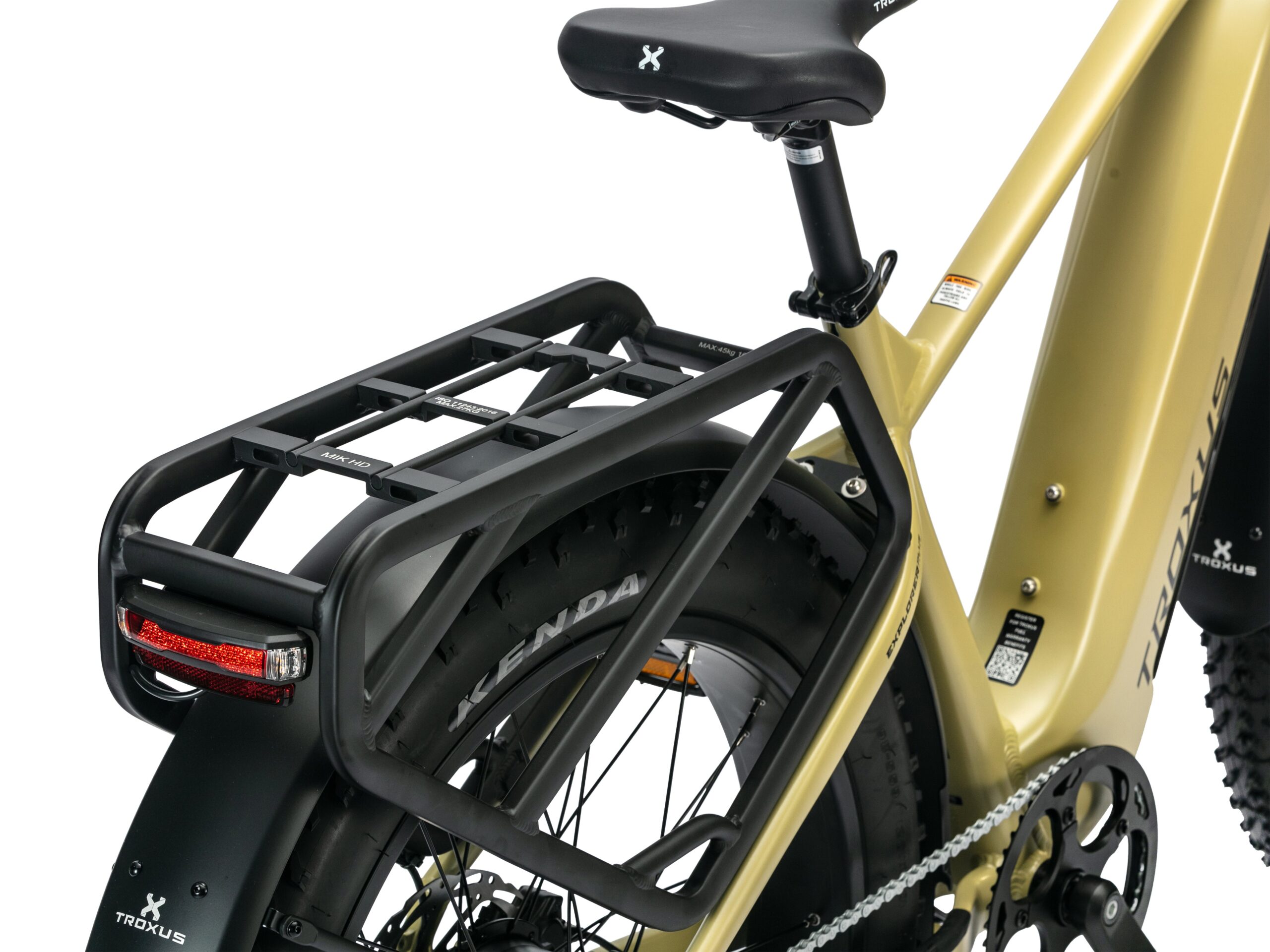

Adventures require gear, and the Expedition is engineered to handle it all. The heavy-duty, semi-integrated alloy rear rack is MIK-compatible and capable of carrying up to 100 pounds of cargo or a passenger, making it perfect for hauling hunting and fishing equipment, camping gear, or groceries. The robust 6061-T6 aluminum step-over frame provides exceptional stability and strength, supporting a total maximum load of 400 lbs. Complete with full-coverage alloy fenders, an adjustable side kickstand, and Kenda® 26″x4.0″ fat tires with anti-puncture K-Shield protection, this bike is ready for anything you throw at it.
Trail-Ready Components

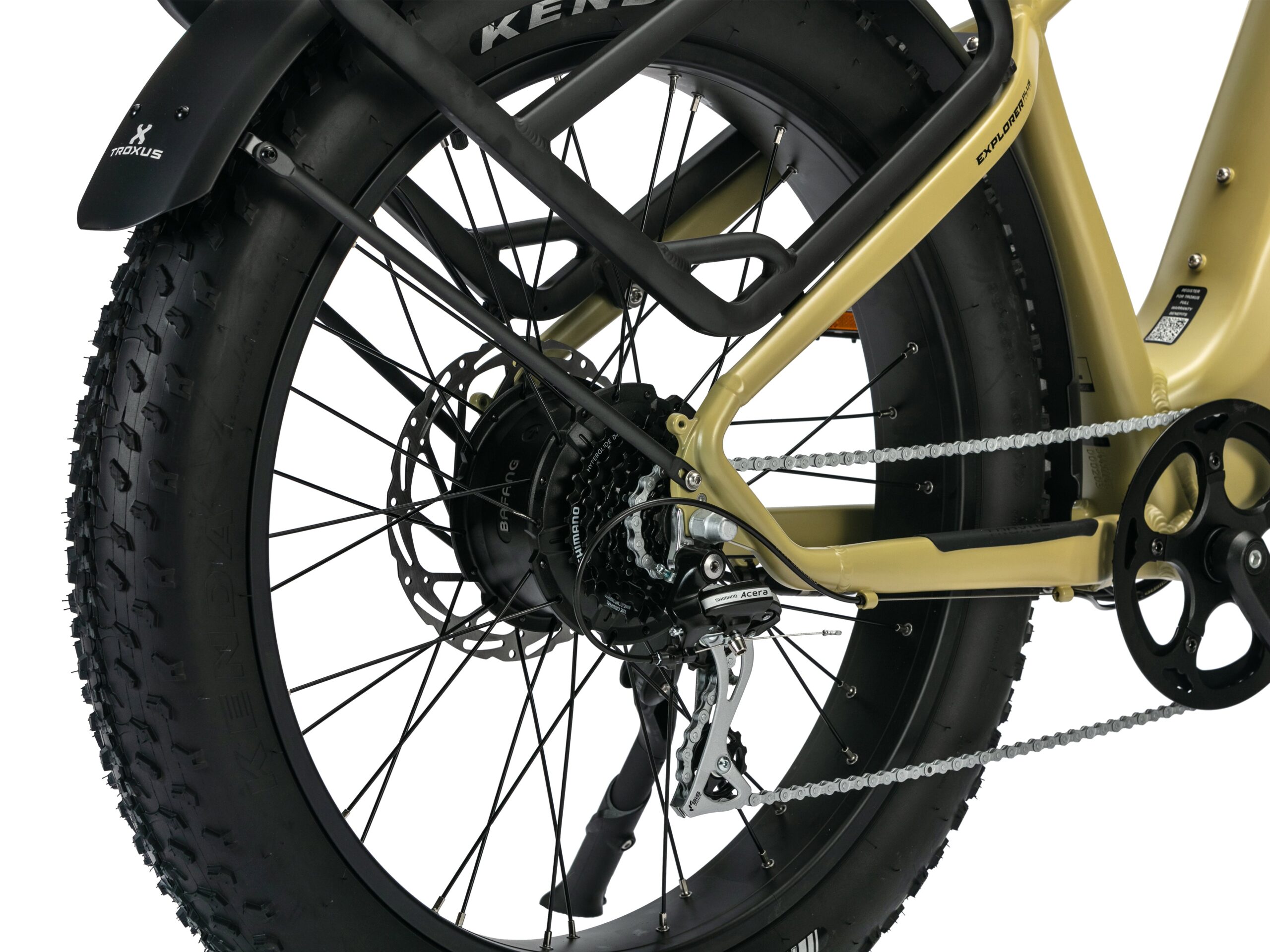

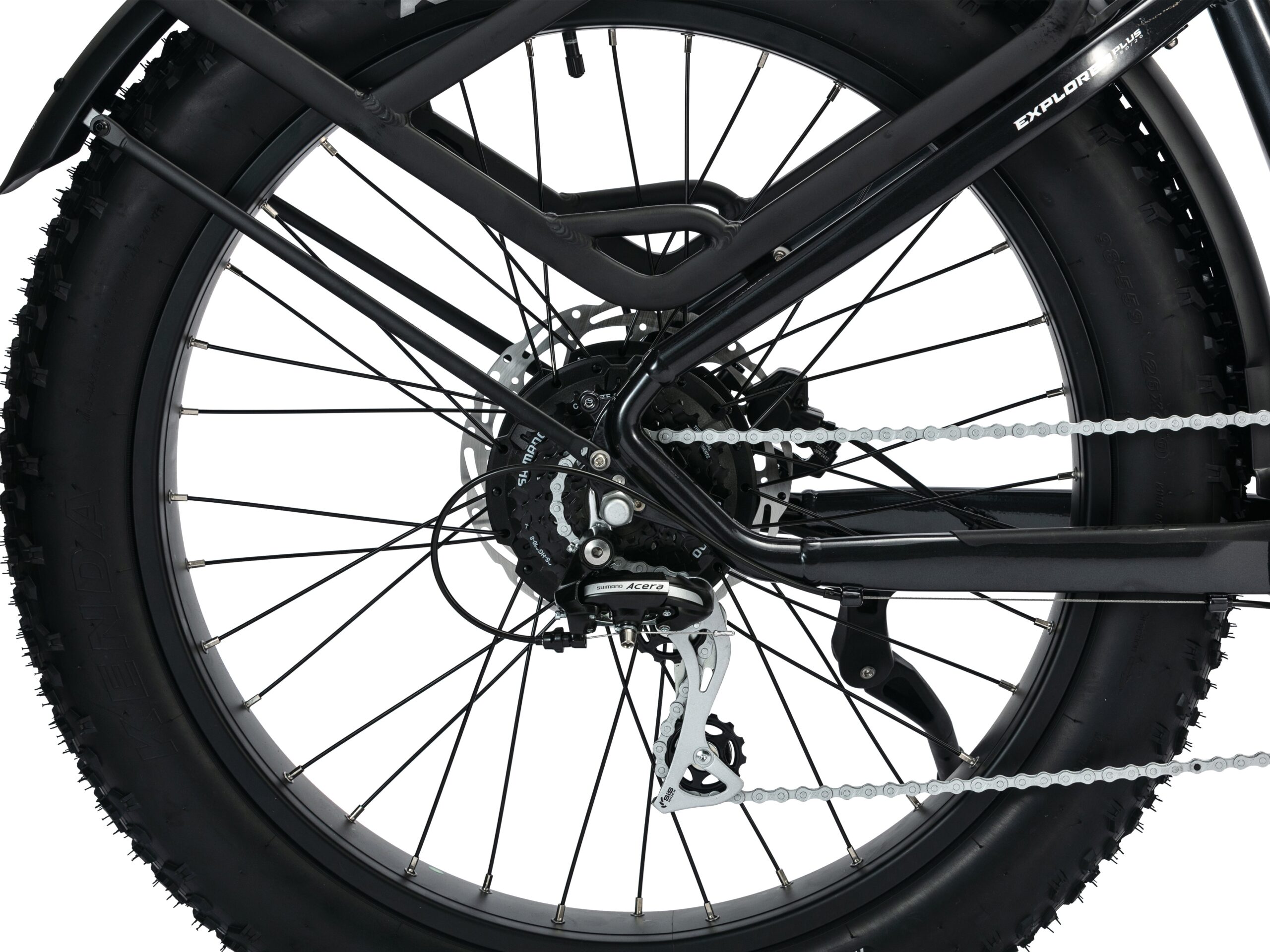

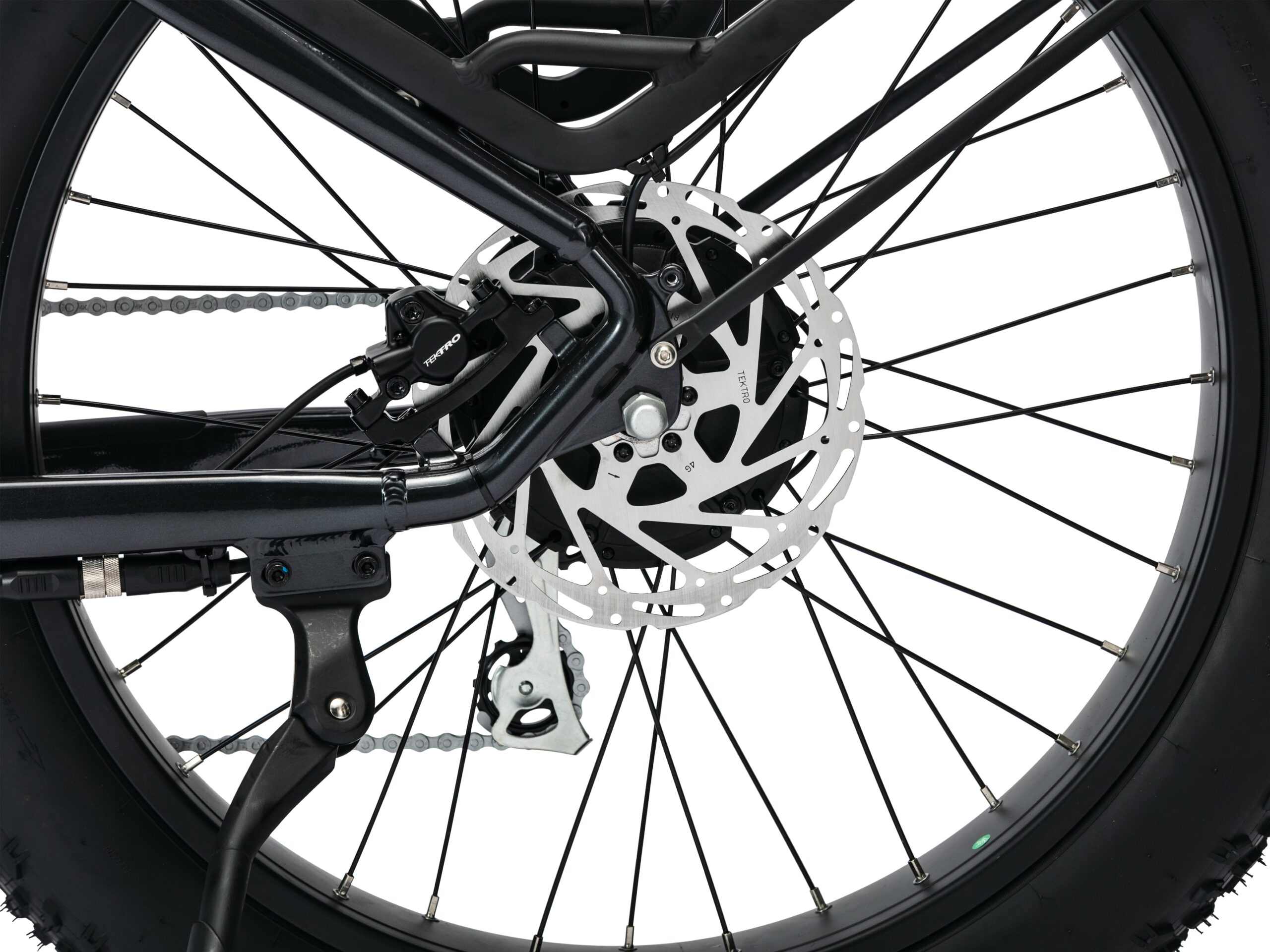

The Expedition is equipped with a 90mm travel front suspension fork that smooths out rough terrain, while the 8-speed Shimano drivetrain with Altus rear derailleur provides reliable and precise shifting across a wide range of conditions. Tektro® hydraulic brakes with 203mm rotors deliver powerful, modulated stopping power in all weather conditions. The wide 700mm handlebars and ergonomic comfort grips provide excellent control, while the Troxus comfort saddle keeps you comfortable on long rides.
Technical Specifications
E-System
| Motor | Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque |
| Battery | UL-2271 Certified, 48V/20Ah (960Wh) with Samsung® Cells |
| Display | Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging |
| Sensor | Switchable Torque and Cadence Sensor Modes |
| Throttle | Thumb Throttle on Handlebar |
| Pedal Assist | 0~5 Level Pedal Assist |
| Max Speed | 20 MPH (Throttle) / 28 MPH (Pedal Assist) |
| Max Range | Up to 90 Miles Per Charge |
| Charger | 3A / 100-240V Input / 54.6V Output |
| Lights | 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals |
Components
| Frame | 6061-T6 Aluminum Step-Over Frame, Large / 20″ |
| Fork | Front Suspension Fork, 90mm Travel |
| Tires | KENDA® 26″x4.0″, w/ Anti-Puncture K-Shield |
| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |
| Cassette | Shimano® 8-Speed, 12-32T |
| Shifter | Shimano® 8-Speed |
| Brakes | Tektro® Hydraulic, w/ Brake Sensors / Rotors: 203mm / 203mm |
| Crankset | Aluminum, 46T, w/ Alloy Chainguard, 170mm |
| Rims | Alloy Single Wall Front / Double Wall Rear, 36H, 26″x4.0″, w/ Eyelets |
| Spokes | Stainless 13G Front / 12G Rear |
| Handlebar | Zoom® Alloy 31.8mm x 700mm Wide |
| Stem | Zoom® Alloy, Threadless, Ext. 75mm, 7-Degree Rise |
| Seat Post | Zoom® Alloy, 30.9 x 350mm, Adjustable |
| Saddle | Troxus Comfort Seat |
Rack & Accessories
| Rack | Semi-Integrated Alloy Rear Model / MIK-Compatible Rear Rack, 100 lb Capacity |
| Fenders | Alloy, 27.5″x4.0″, Full Coverage |
| Kickstand | Adjustable Side Kickstand |
Weight & Load
| Net Weight | 83.8 lbs |
| Weight Limit | 400 lbs Maximum Load / 100 lbs Rear Rack Capacity |
Size & Fit
The Expedition Step-Over is available in a Large frame size designed for taller riders seeking maximum stability and control.
| Measurement | Large (20″) |
|---|---|
| Recommended Height | 5’8″ – 6’4″ |
| Seat Tube Length (A) | 500 mm |
| Seat Tube Angle (B) | 71.5° |
| Head Tube Length (C) | 160 mm |
| Head Tube Angle (D) | 68° |
| Effective Top Tube (E) | 625 mm |
| Bottom Bracket Height (F) | 305 mm |
| Chainstay Length (H) | 490 mm |
| Wheelbase (J) | 1173 mm |
| Frame Reach (K) | 387 mm |
| Frame Stack (L) | 691 mm |
| Fork Travel | 90 mm |
Additional information
| Color | Gloss Charcoal, Gloss Desert Tan |
|---|---|
| Size | Explorer Plus Step Over |
