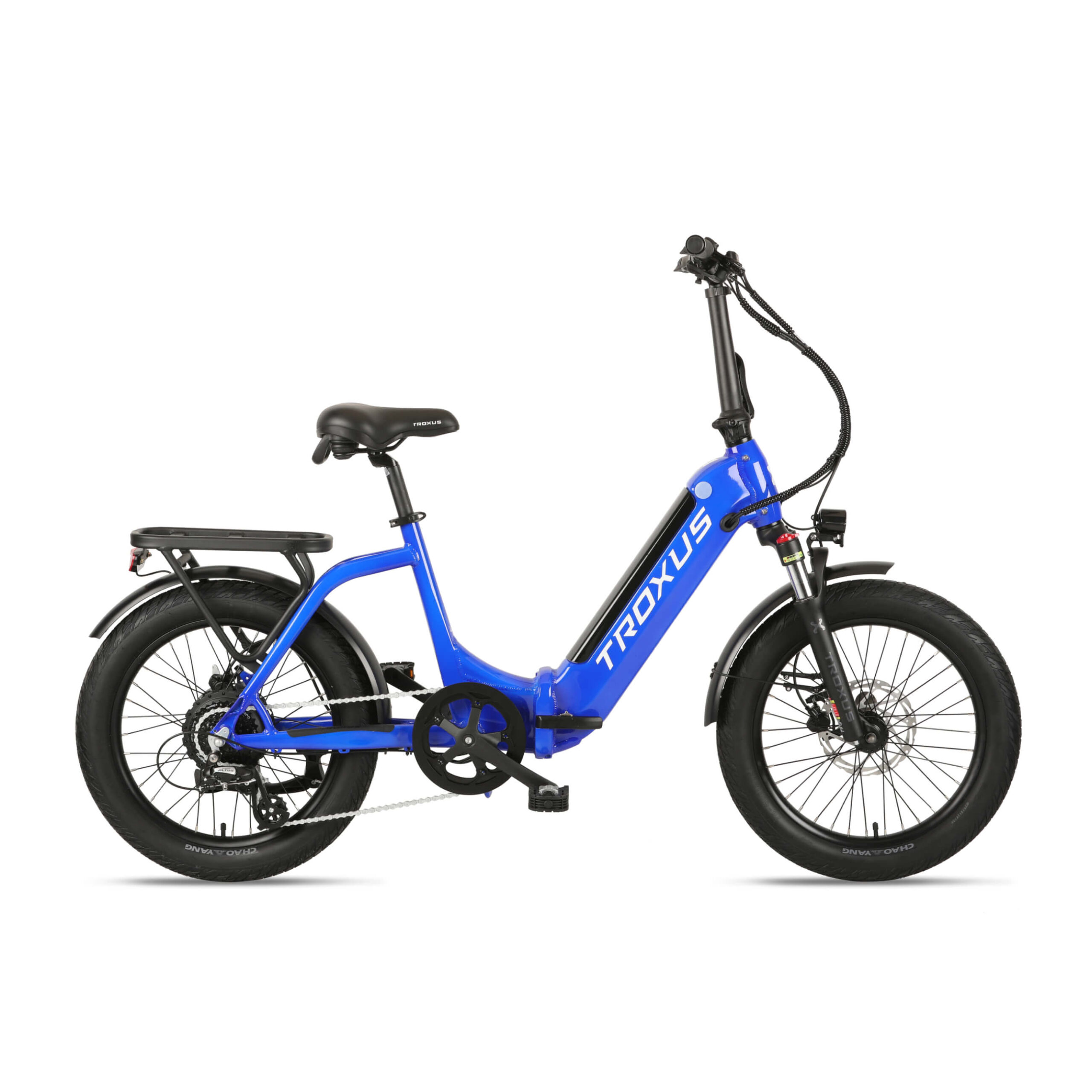

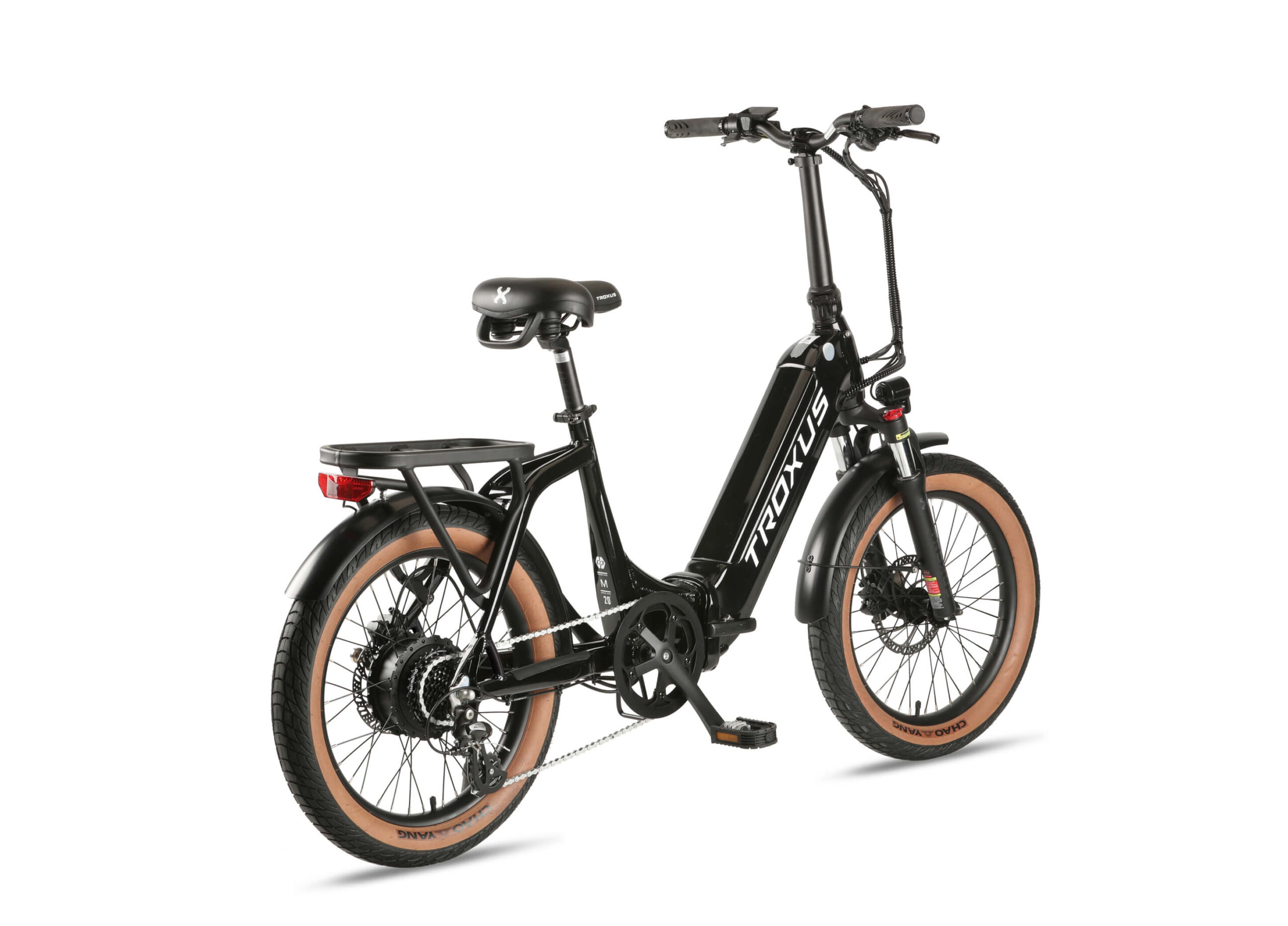

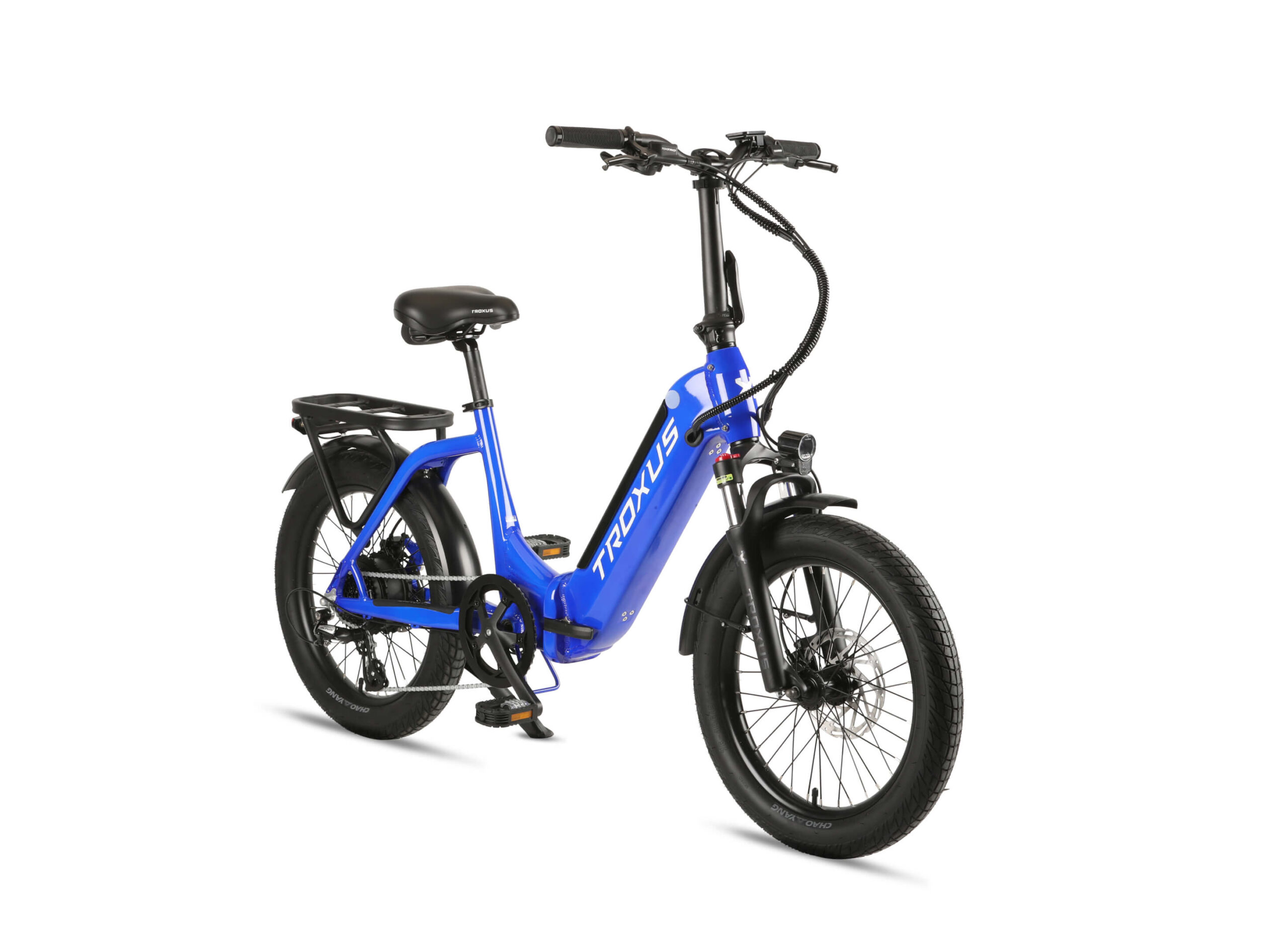

Troxus – Lynx Folding
Original price was: $1,899.00.$1,599.00Current price is: $1,599.00.

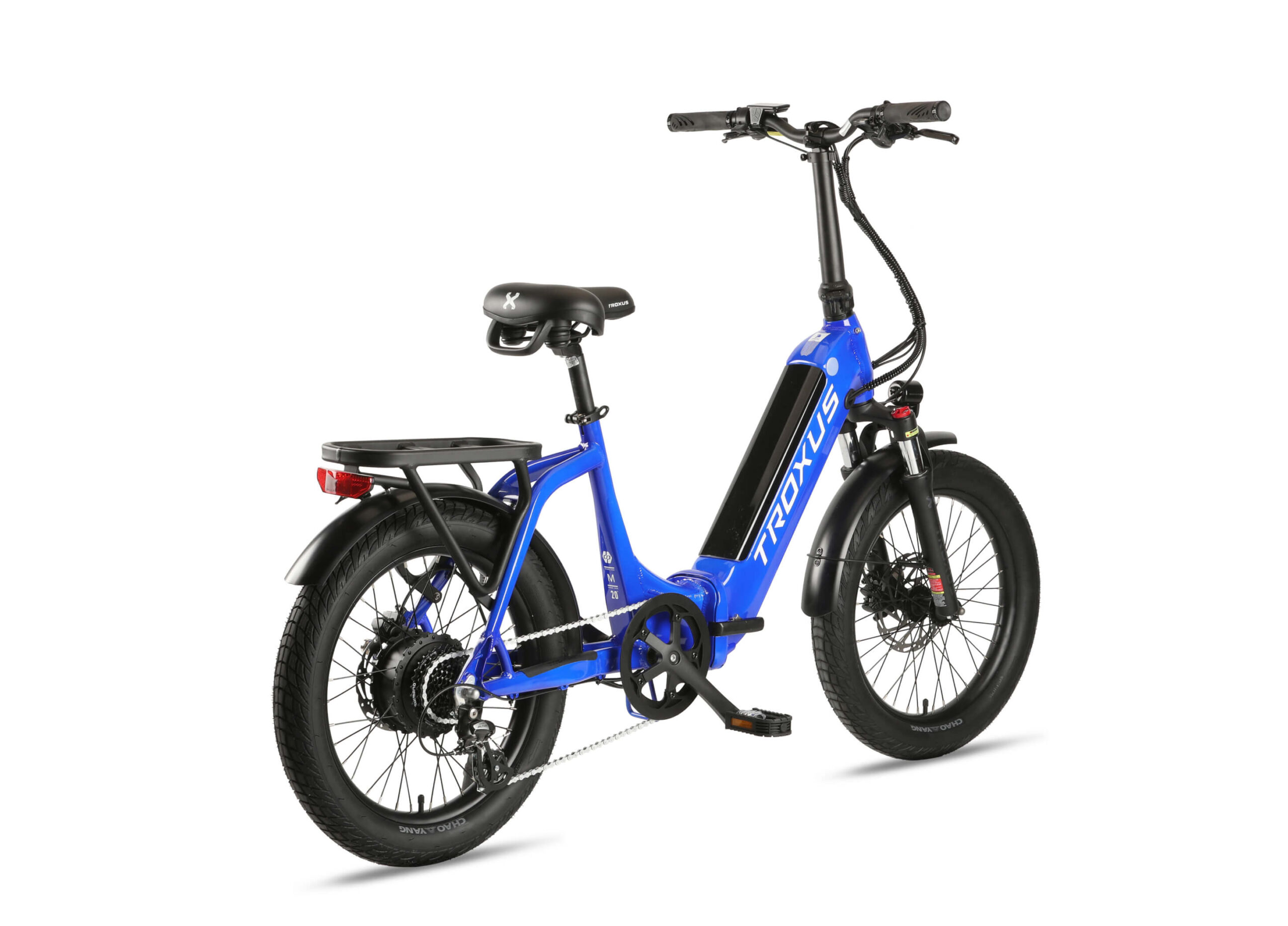

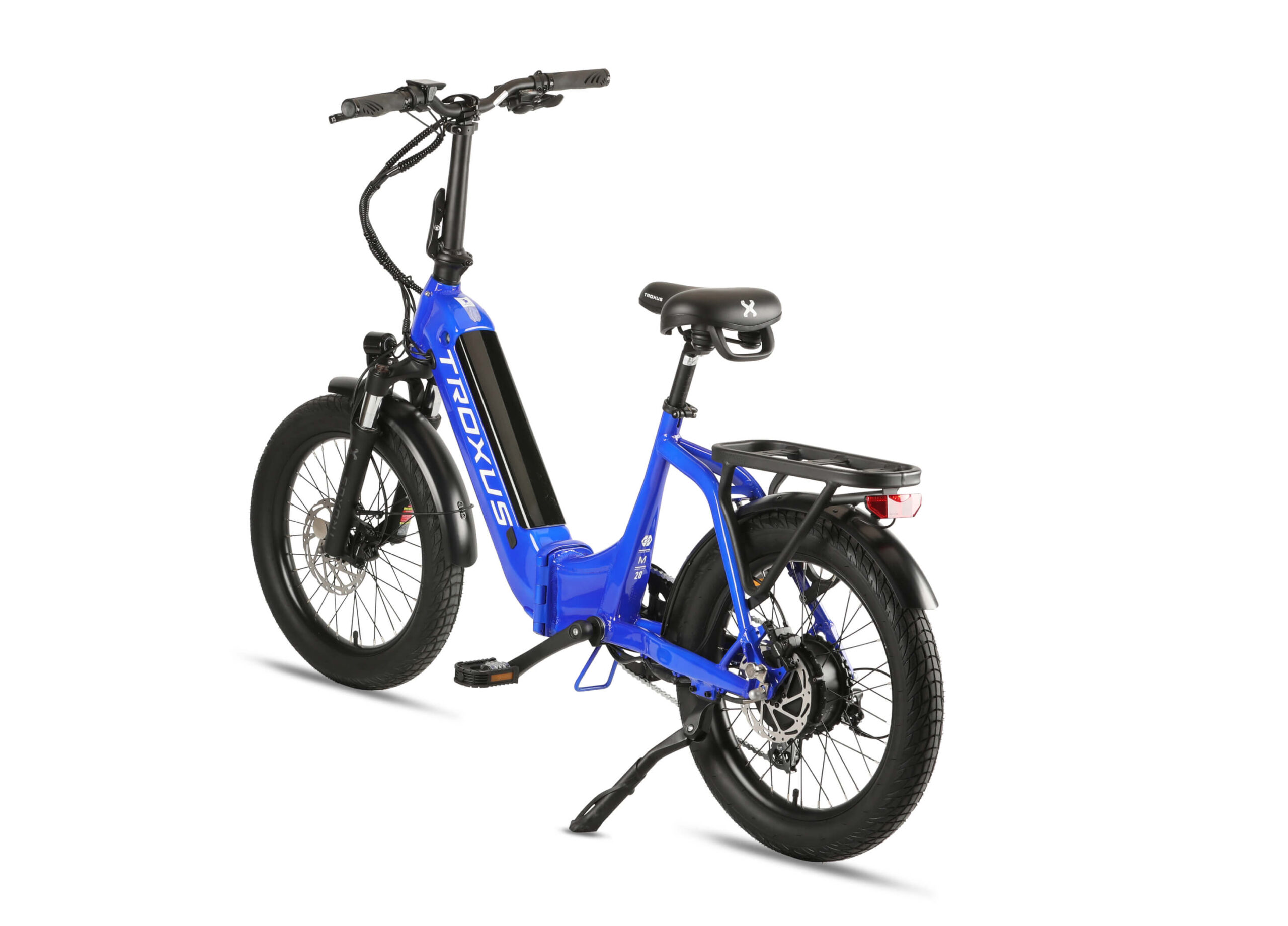

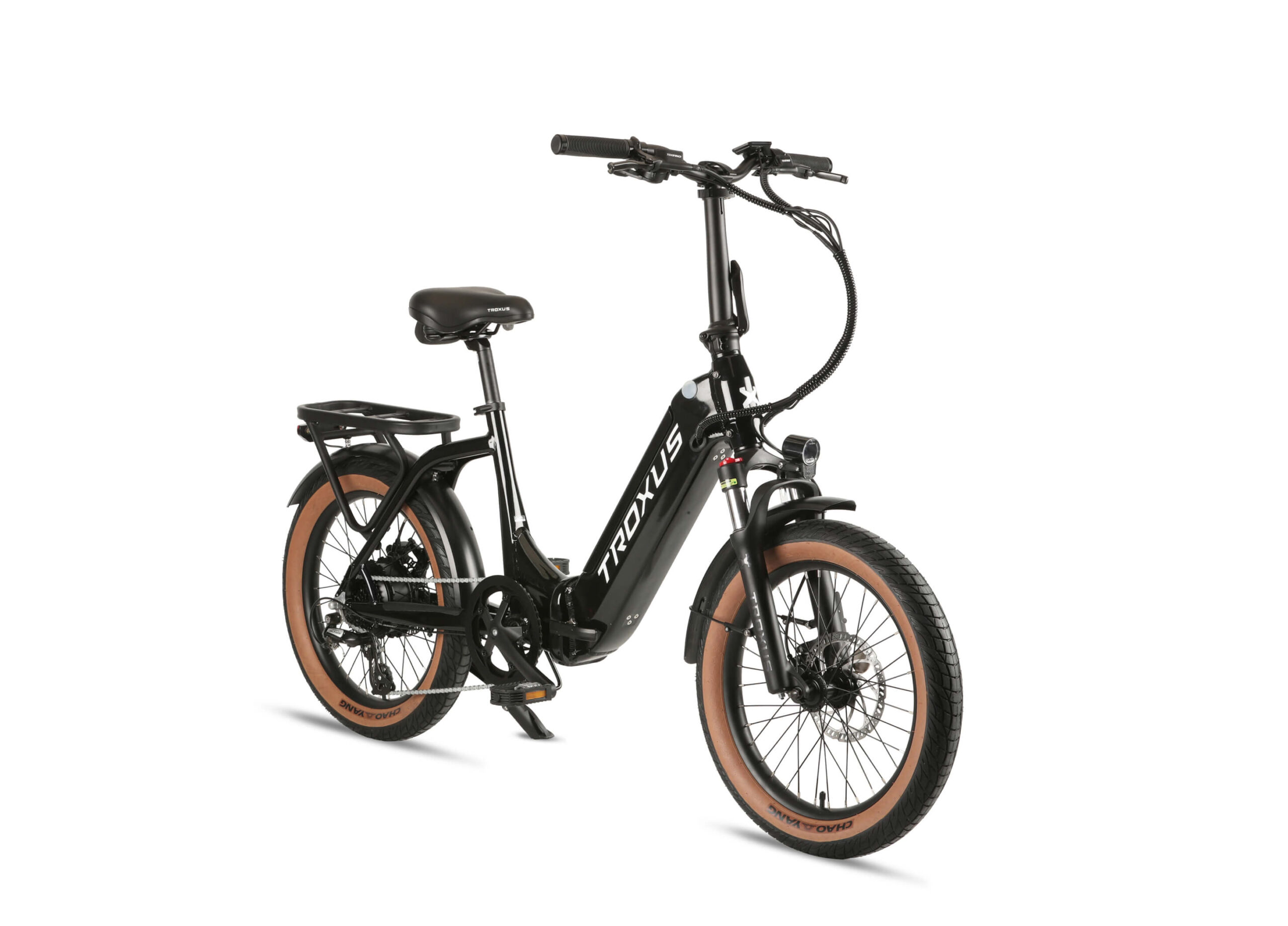

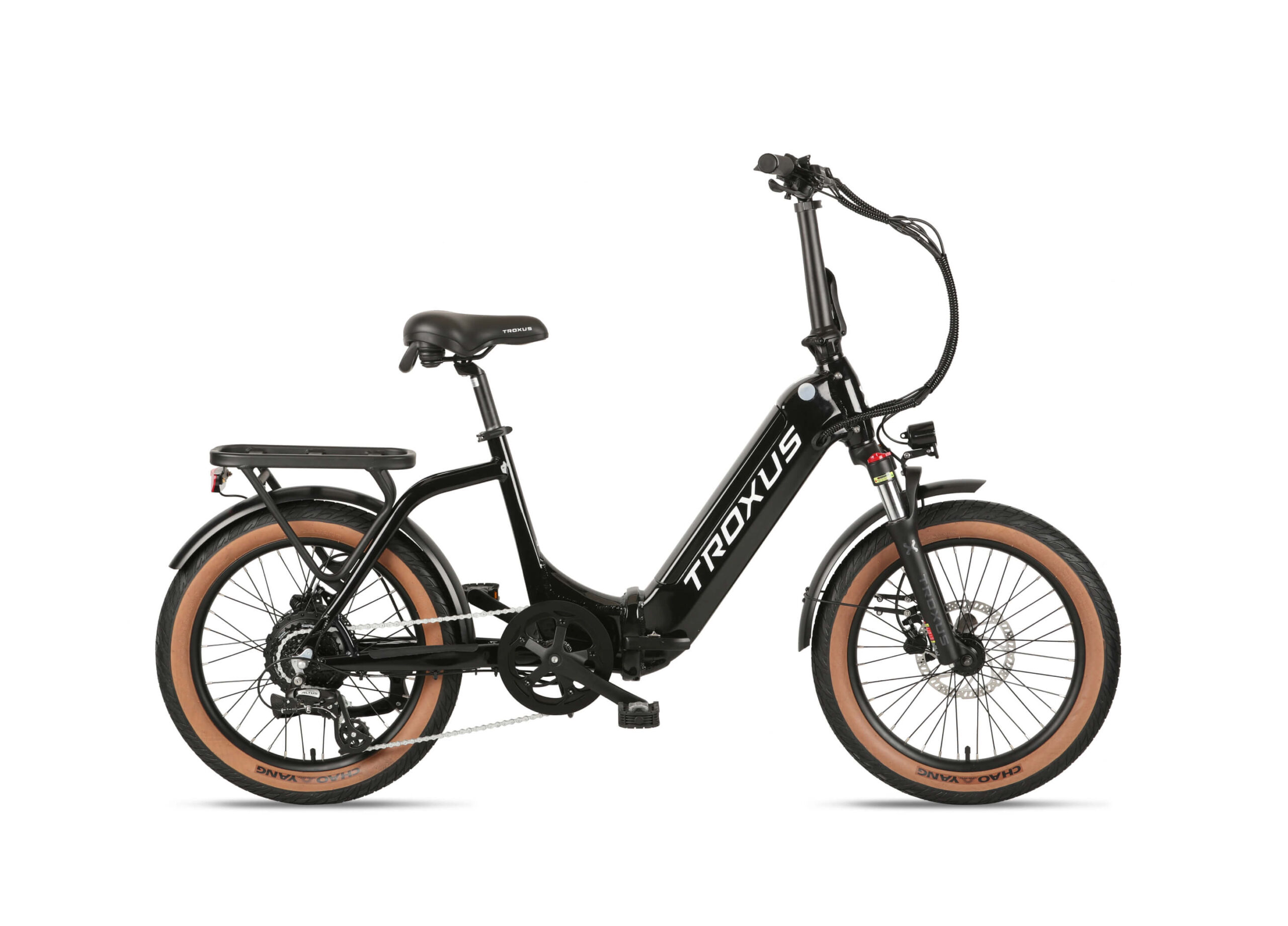

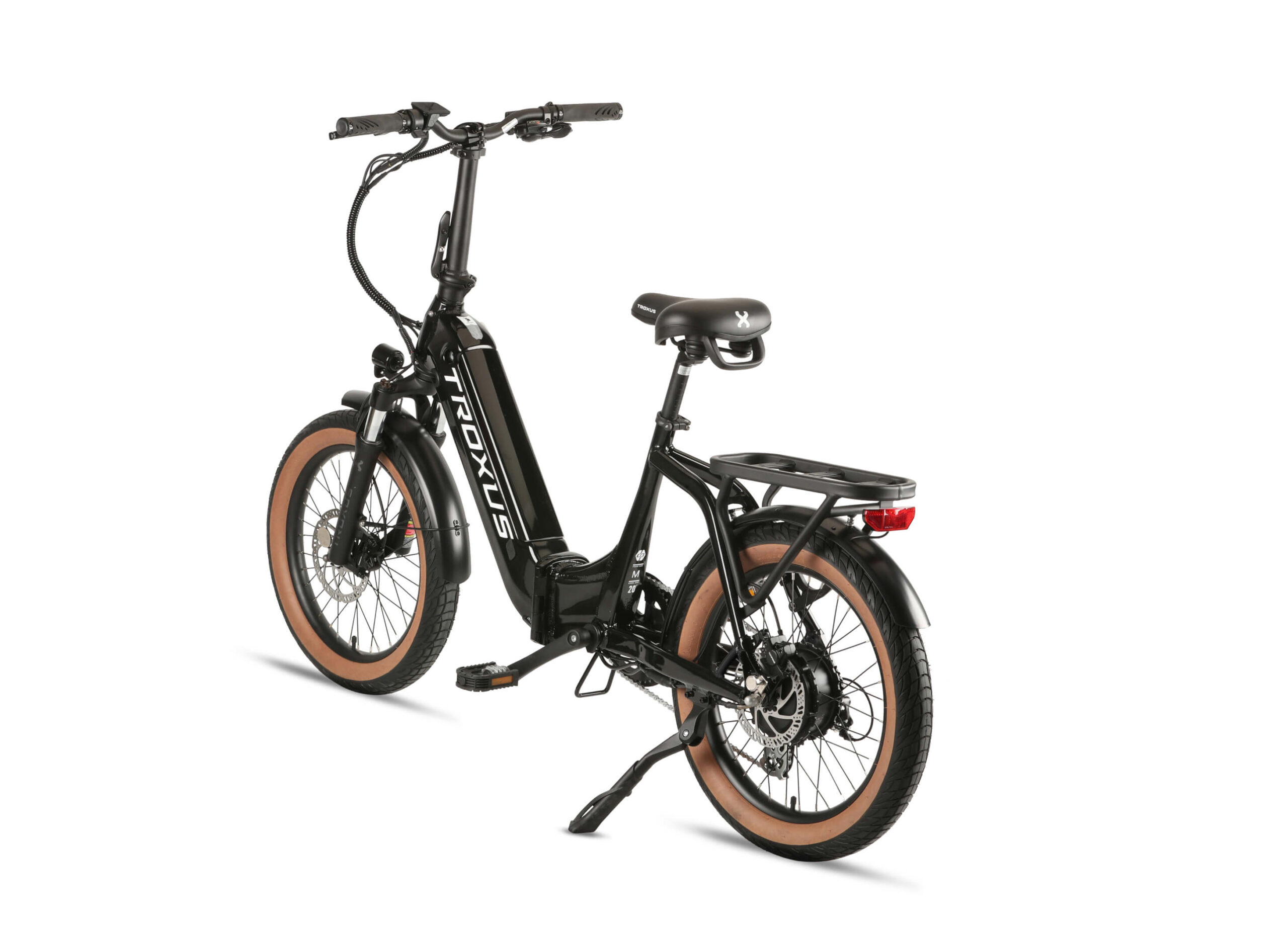

Take your ride anywhere with this lightweight folding electric bike! The 6061-T6 aluminum step-thru frame folds compactly for transport and storage. Features a 500W motor (65Nm torque), 480Wh Samsung® battery (45-mile range, upgradeable to 720Wh), hydraulic brakes, and front suspension. UL-2849 certified and includes rear rack, fenders, and lights.
Description
Folding Electric Commuter: Take It With You!
Lightweight, compact, and incredibly versatile—this folding electric bike is designed for riders who need a solution that fits their active, multi-modal lifestyle. Whether you’re combining a bike commute with train travel, storing in a small apartment, or tossing it in the car for weekend adventures, this foldable step-thru frame makes it possible.
Power To Cruise And Climb
Don’t let the compact size fool you. The powerful 48V/500W hub-drive motor delivers 65Nm of torque, giving you the power to climb hills and accelerate with confidence. The cadence sensor provides smooth, responsive assistance across 5 levels of pedal assist, while the thumb throttle gives you instant power when you need it.
Safe, Reliable, And Upgradeable
UL-2849 certified for the highest electrical system safety, this folding e-bike gives you peace of mind with every ride. The standard 480Wh battery (featuring premium Samsung® cells) provides up to 45 miles of range, and it’s fully upgradeable to the 720Wh model for those who need extended range. UL-2271 battery certification ensures reliable, safe power delivery.
Compact Storage, Serious Capability

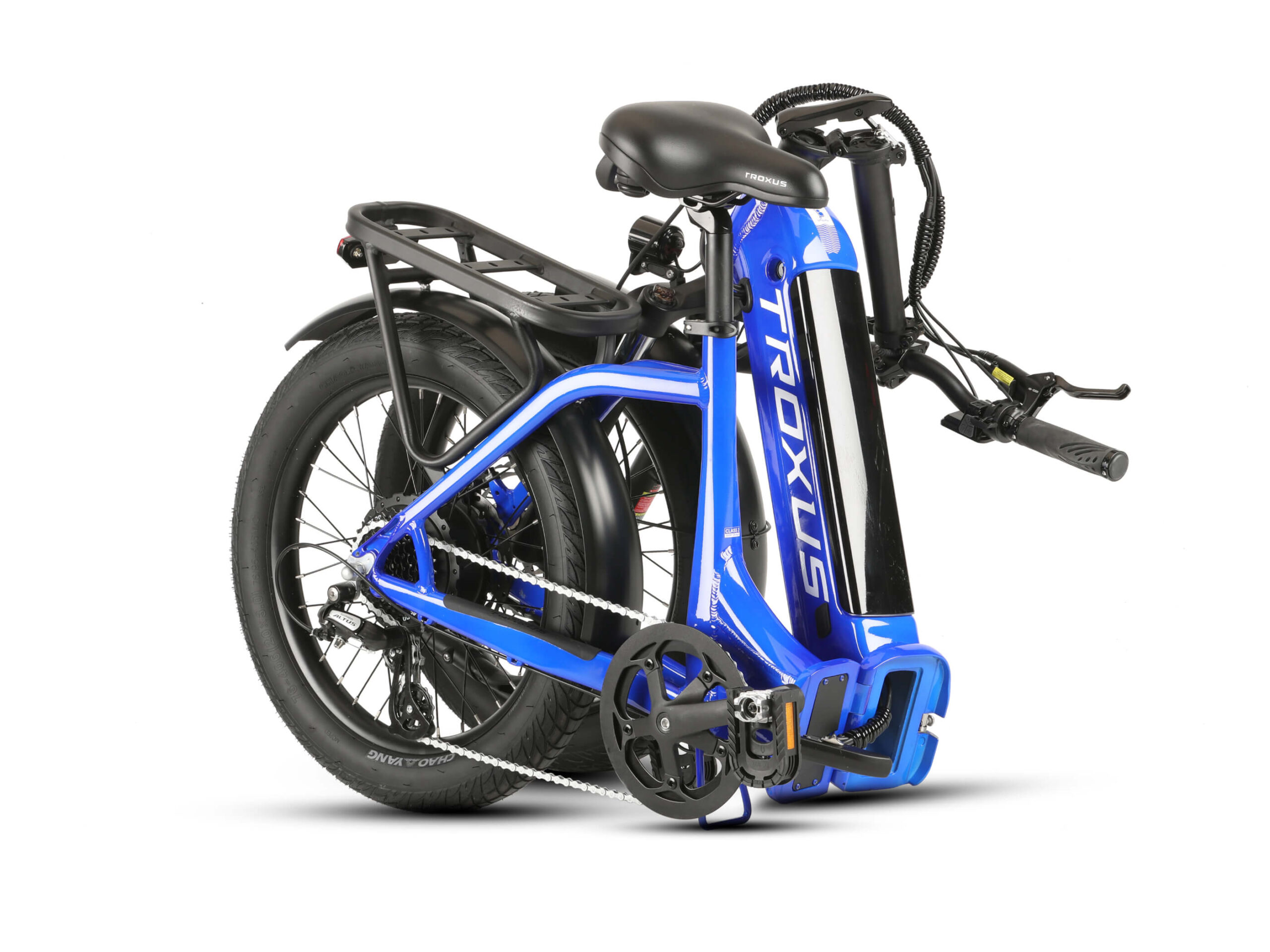

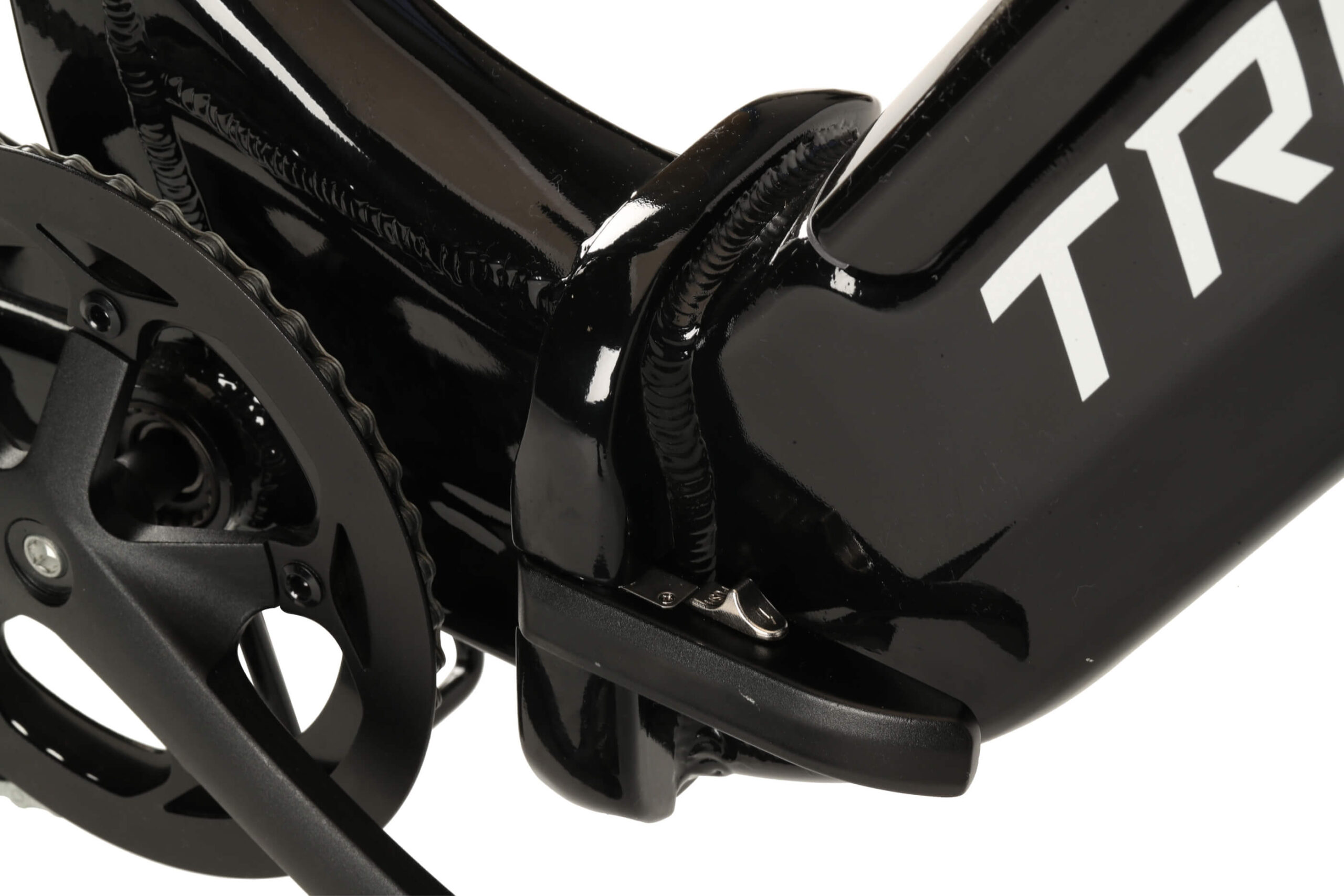

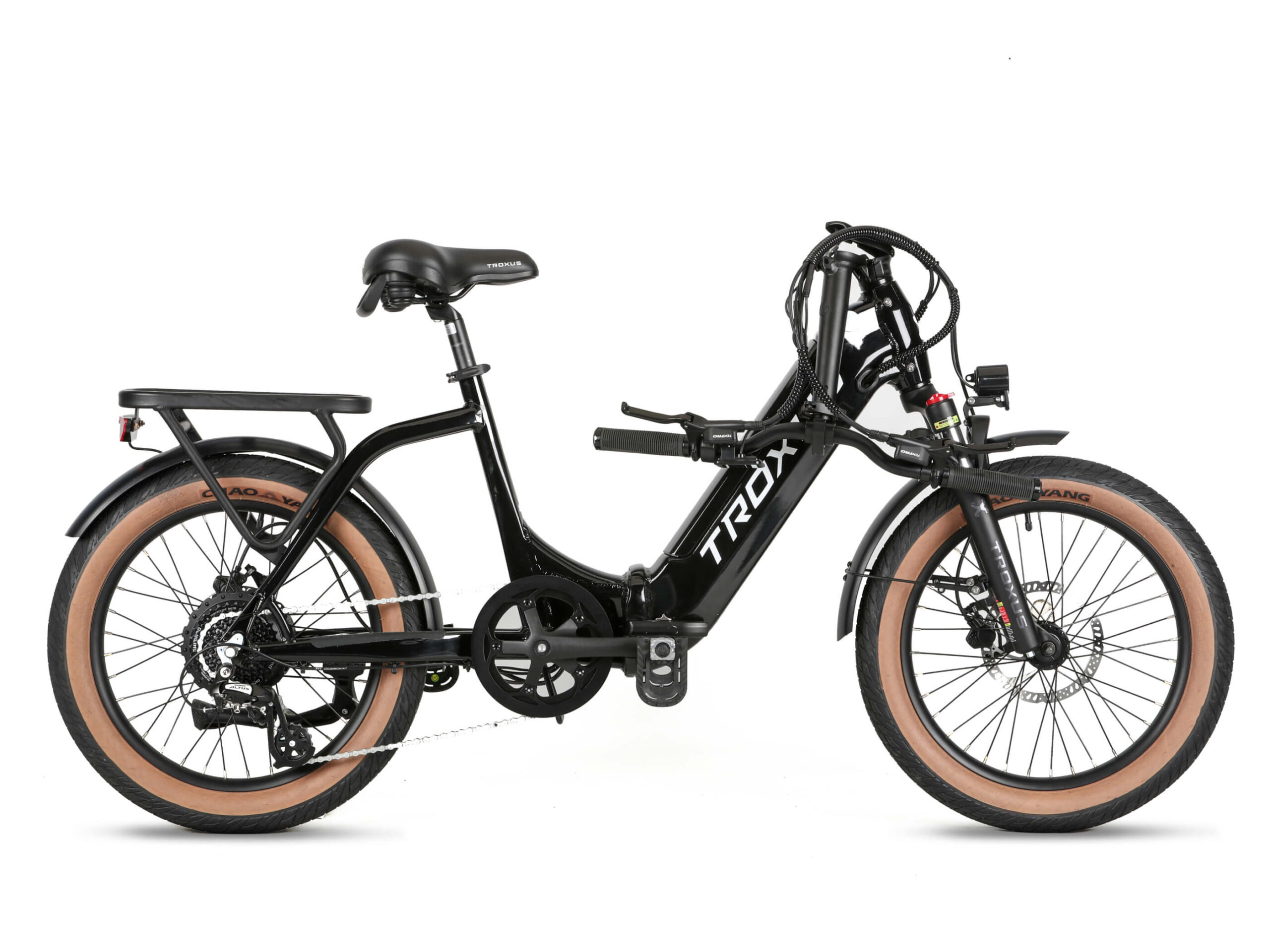

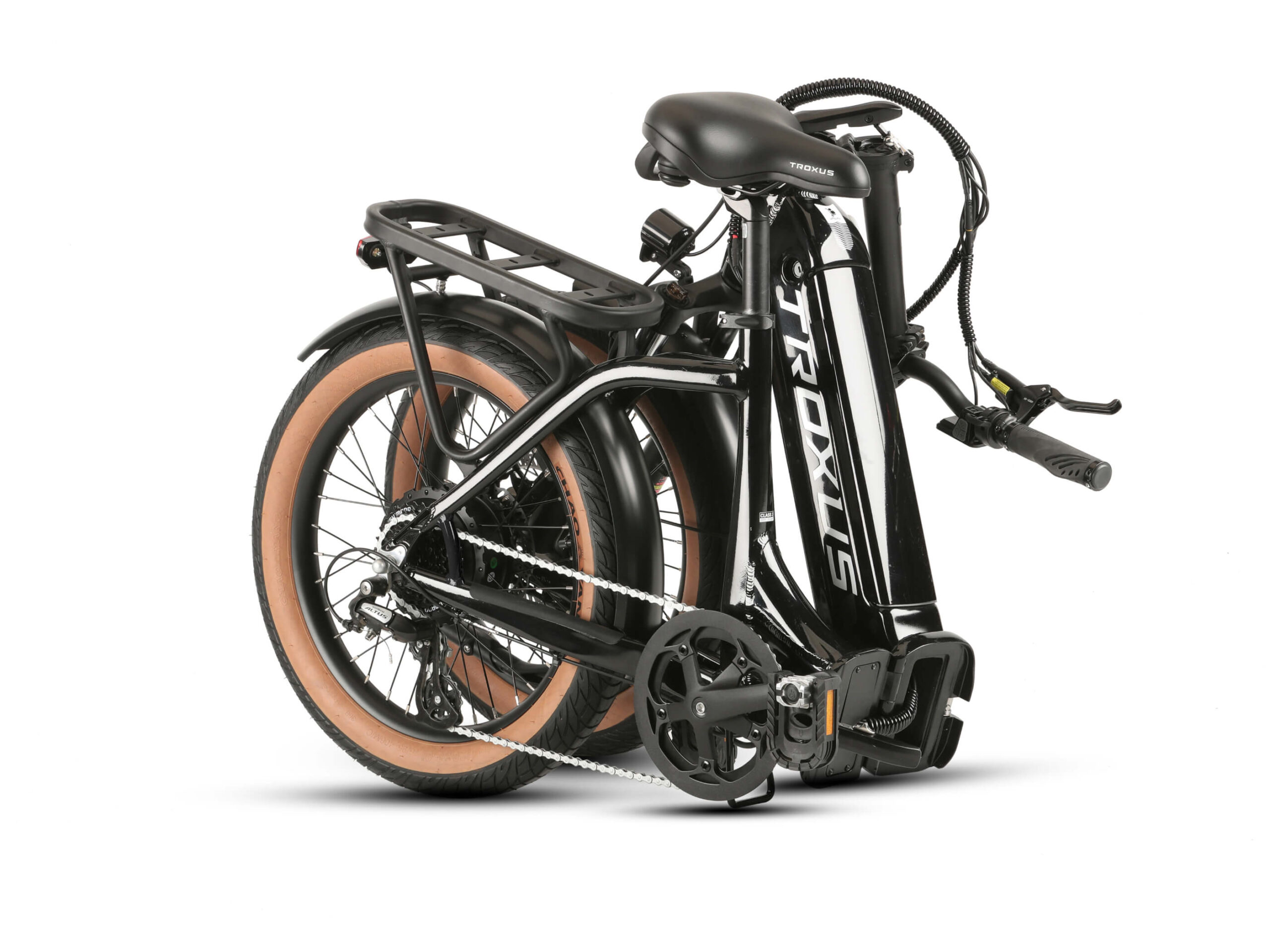

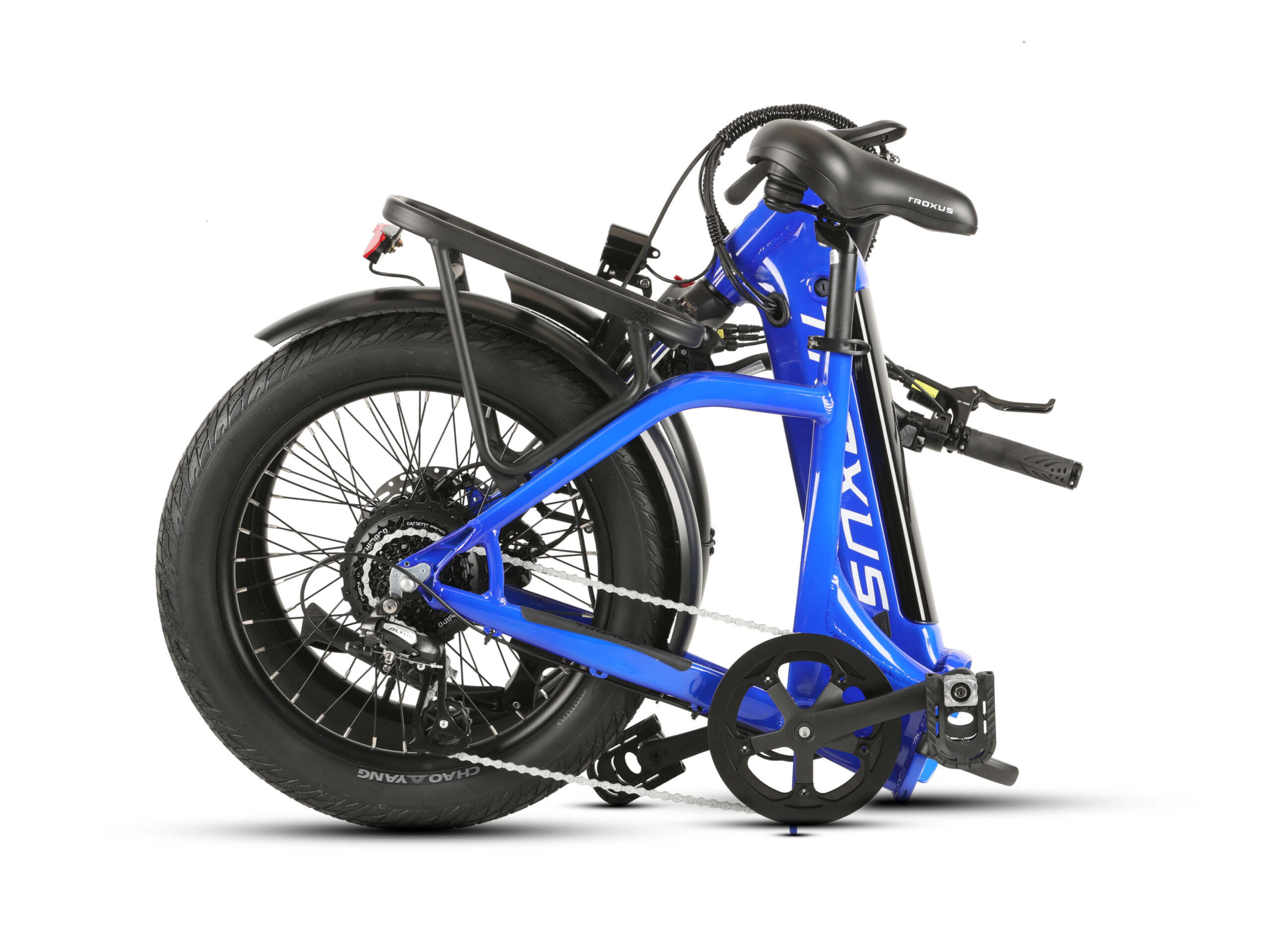

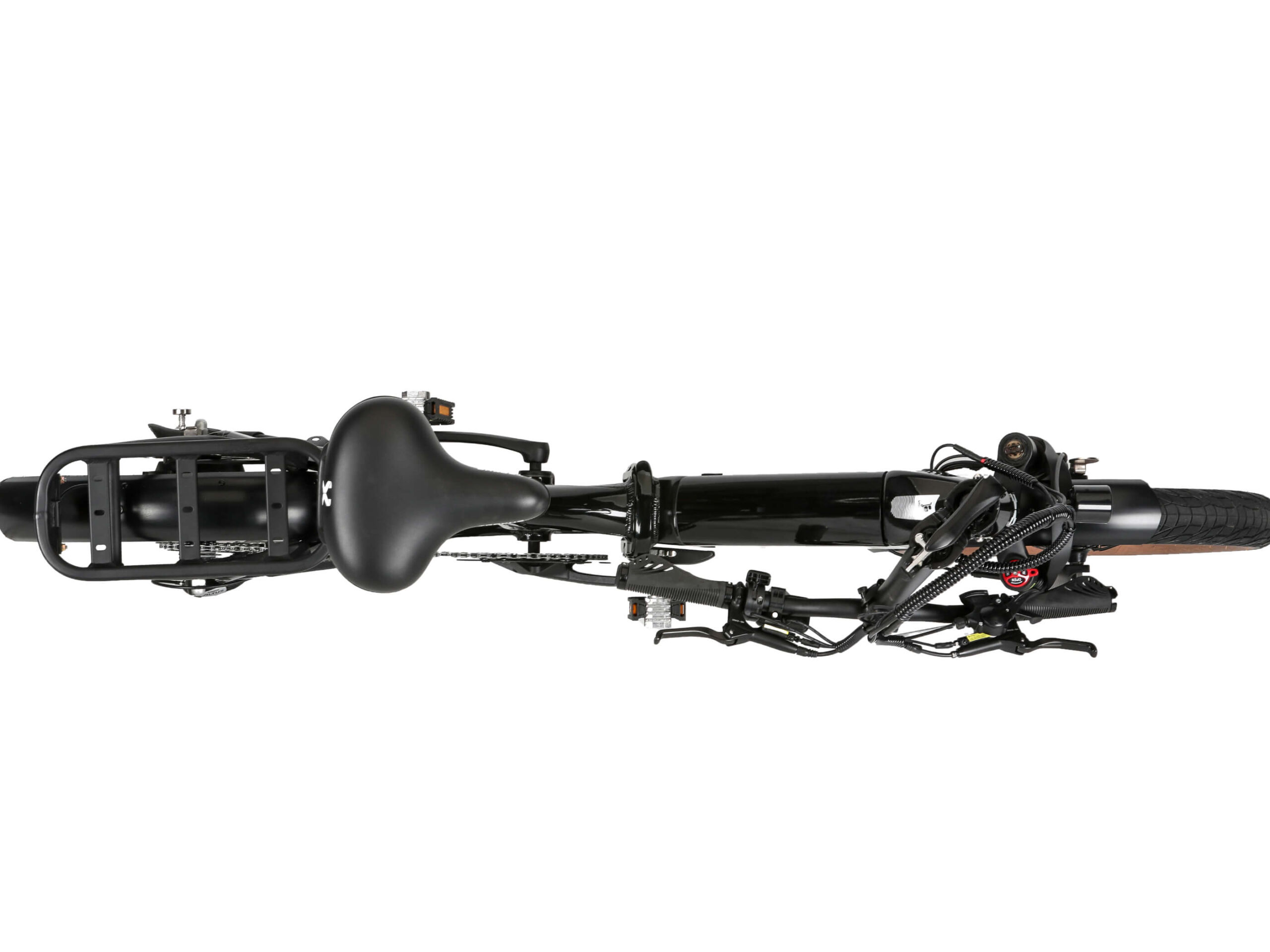

The 6061-T6 aluminum folding step-thru frame locks securely for riding and folds compactly for storage or transport. The foldable stem and folding pedals further reduce the packed size. Despite its portability, this bike doesn’t compromise on features:
- Front suspension fork with 50mm travel smooths out rough roads
- 20″x3.0″ tires provide stability and comfort

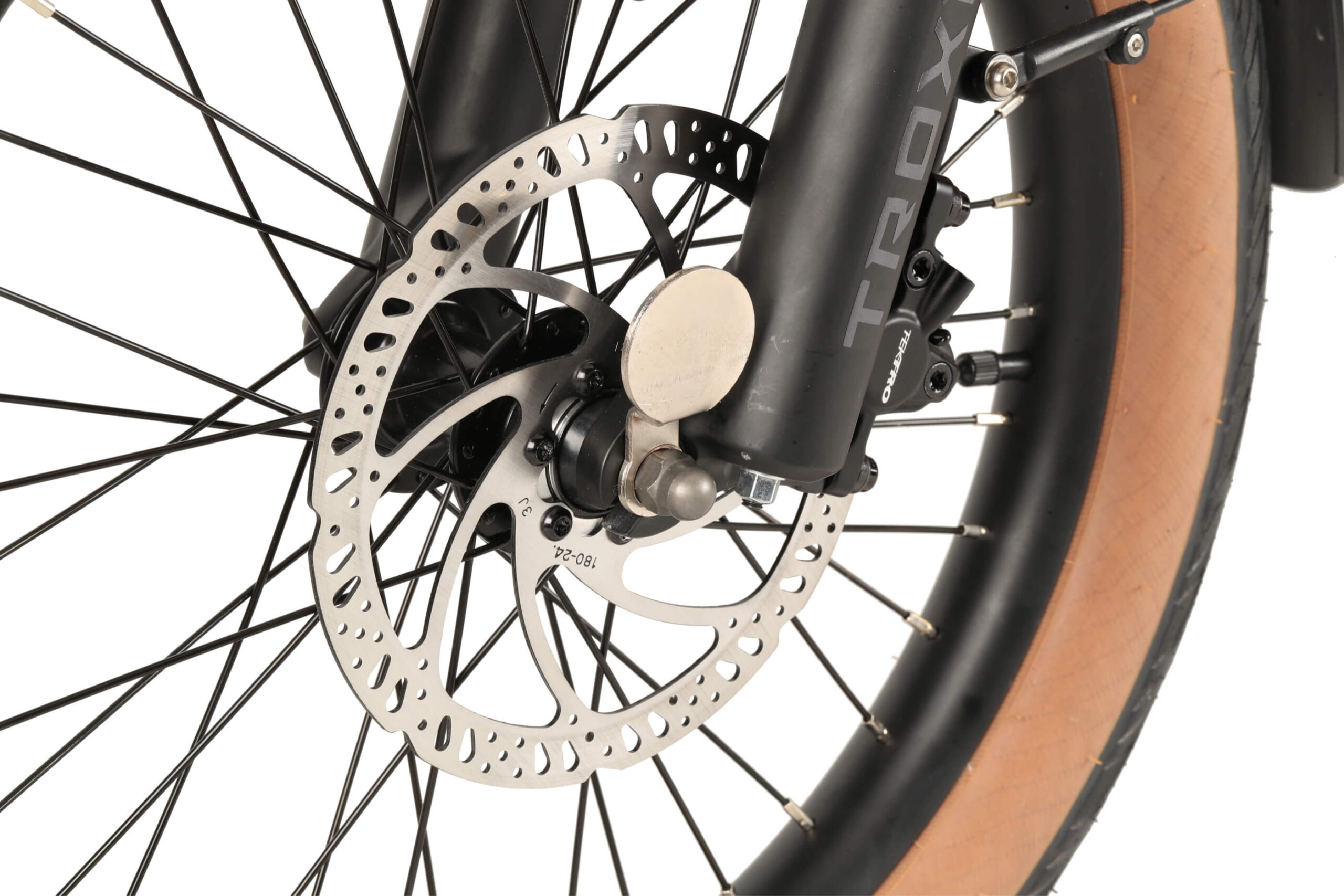

- Tektro® hydraulic brakes with 180mm/160mm rotors for confident stopping

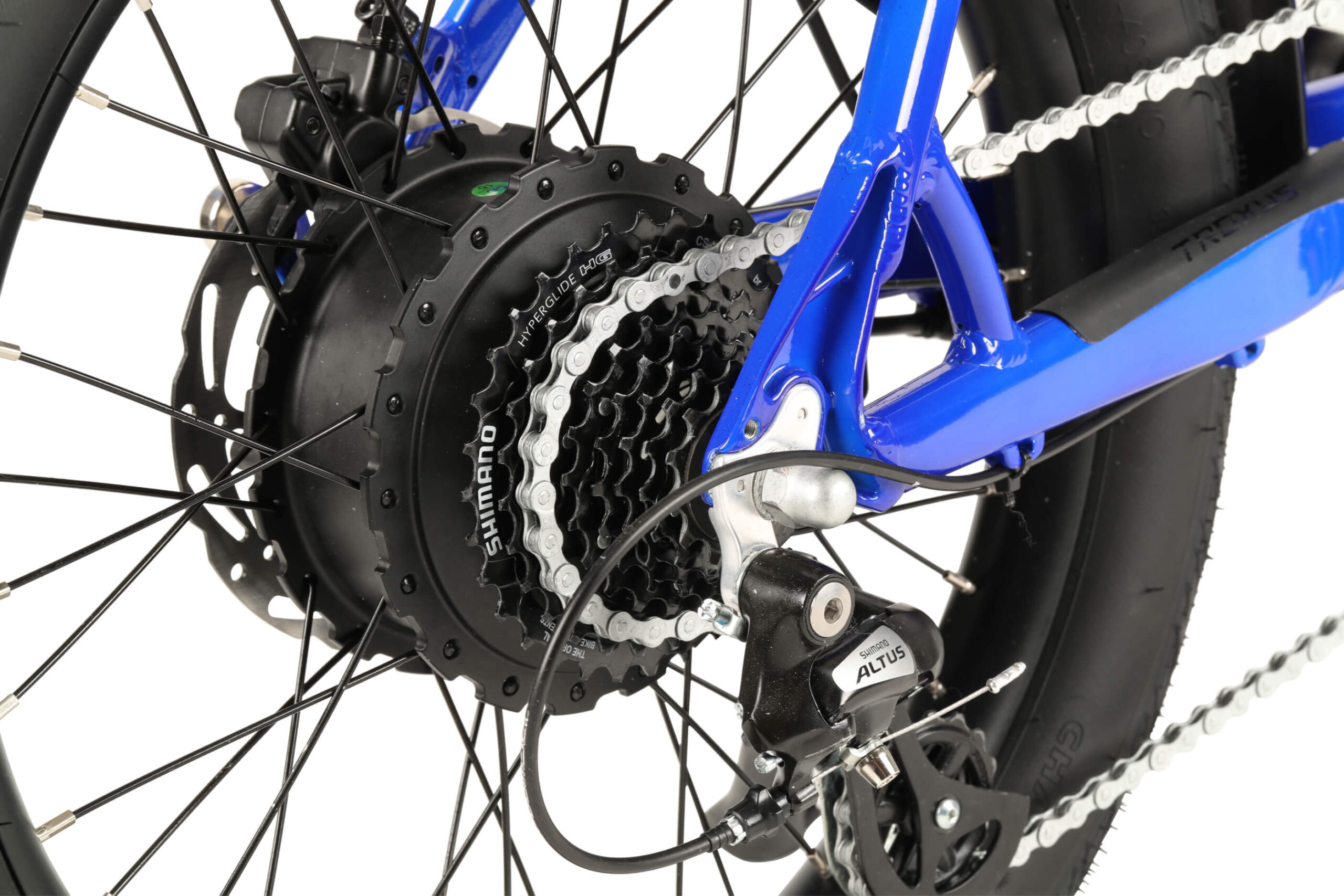

- Shimano® 8-speed drivetrain for versatile gearing
Fully Equipped, Ready to Ride
This folding e-bike comes complete with everything you need for daily commuting:

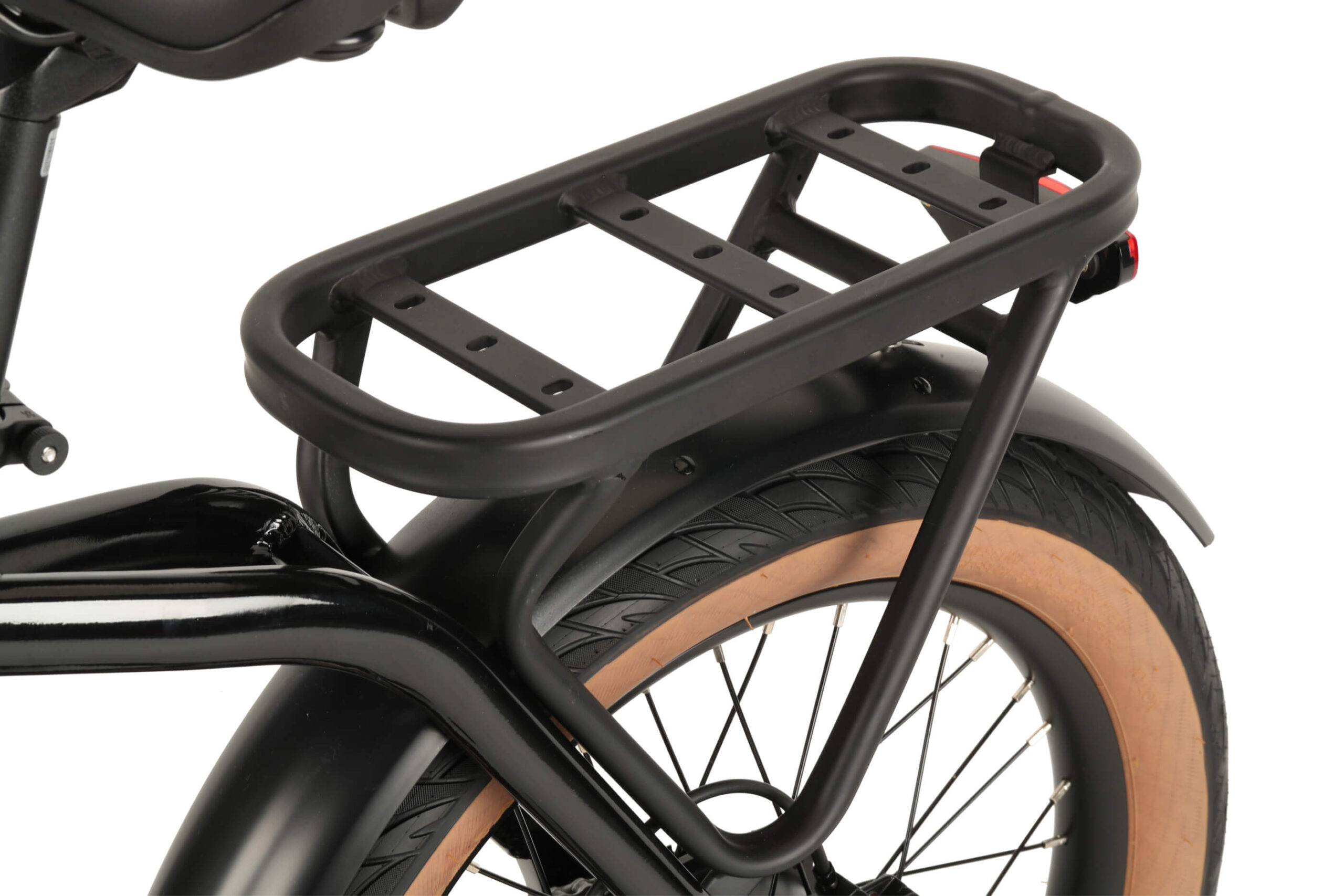

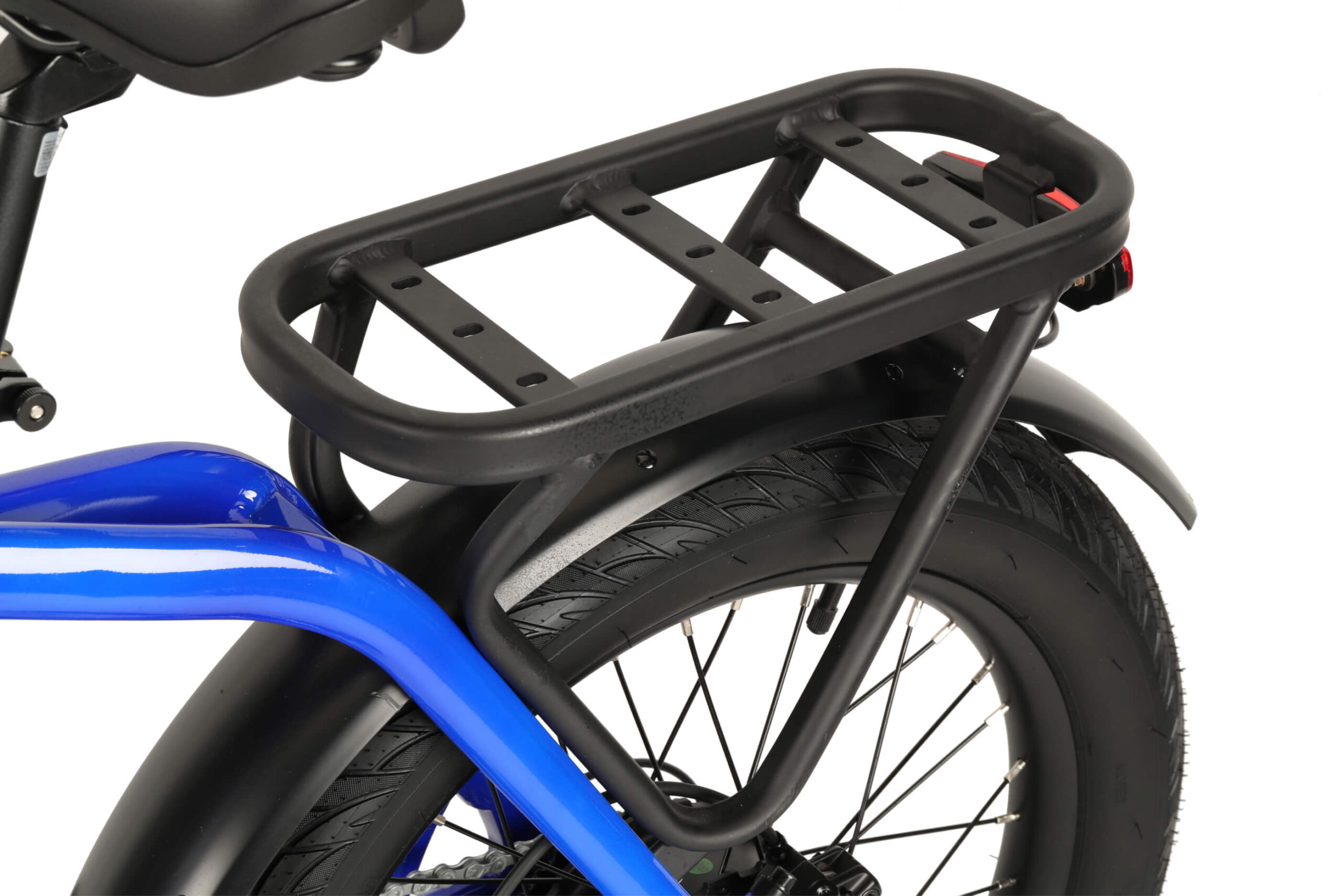

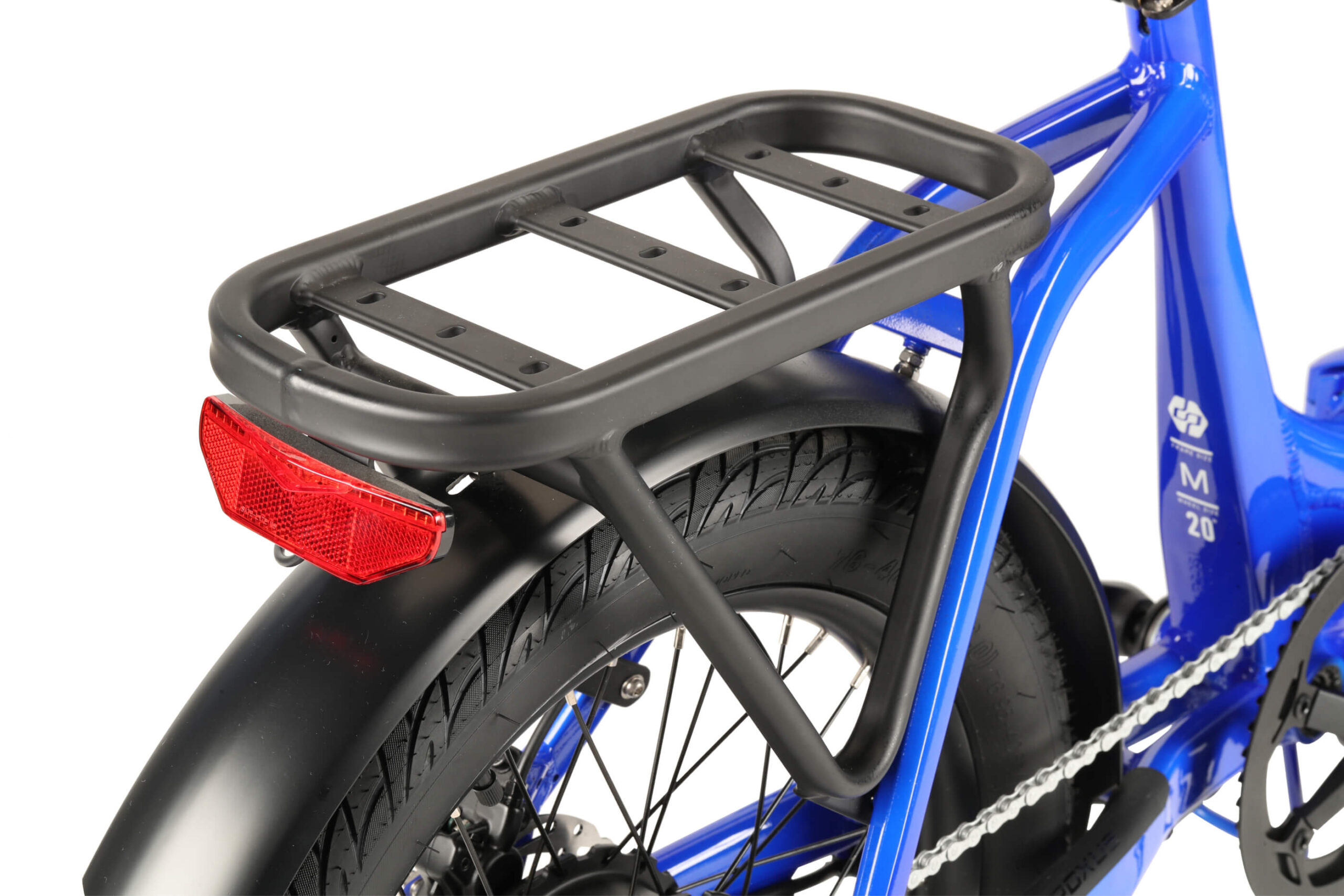

- Semi-integrated alloy rear rack for cargo
- Plastic fenders with alloy hardware to keep you clean
- Integrated front and rear lights for visibility
- Adjustable side kickstand for convenient parking

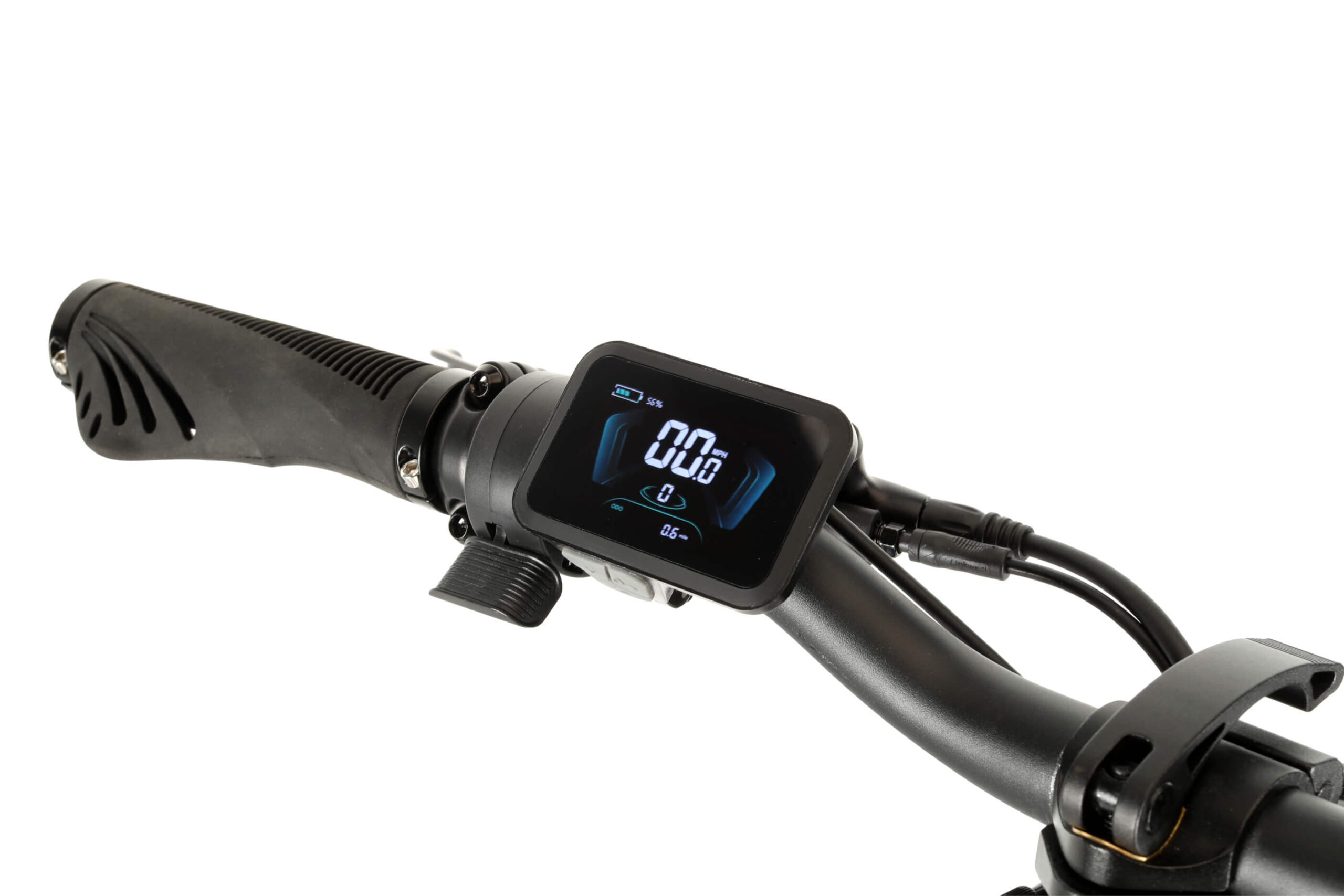

- Color display with multi-function remote
Technical Specifications
E-System
| Motor | Jiabo® 48V/500W Hub-Drive Motor, 65Nm Max. Torque |
| Battery | UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/10Ah (480Wh) with Samsung® Cells Optional 48V/15Ah (720Wh) Upgrade Available |

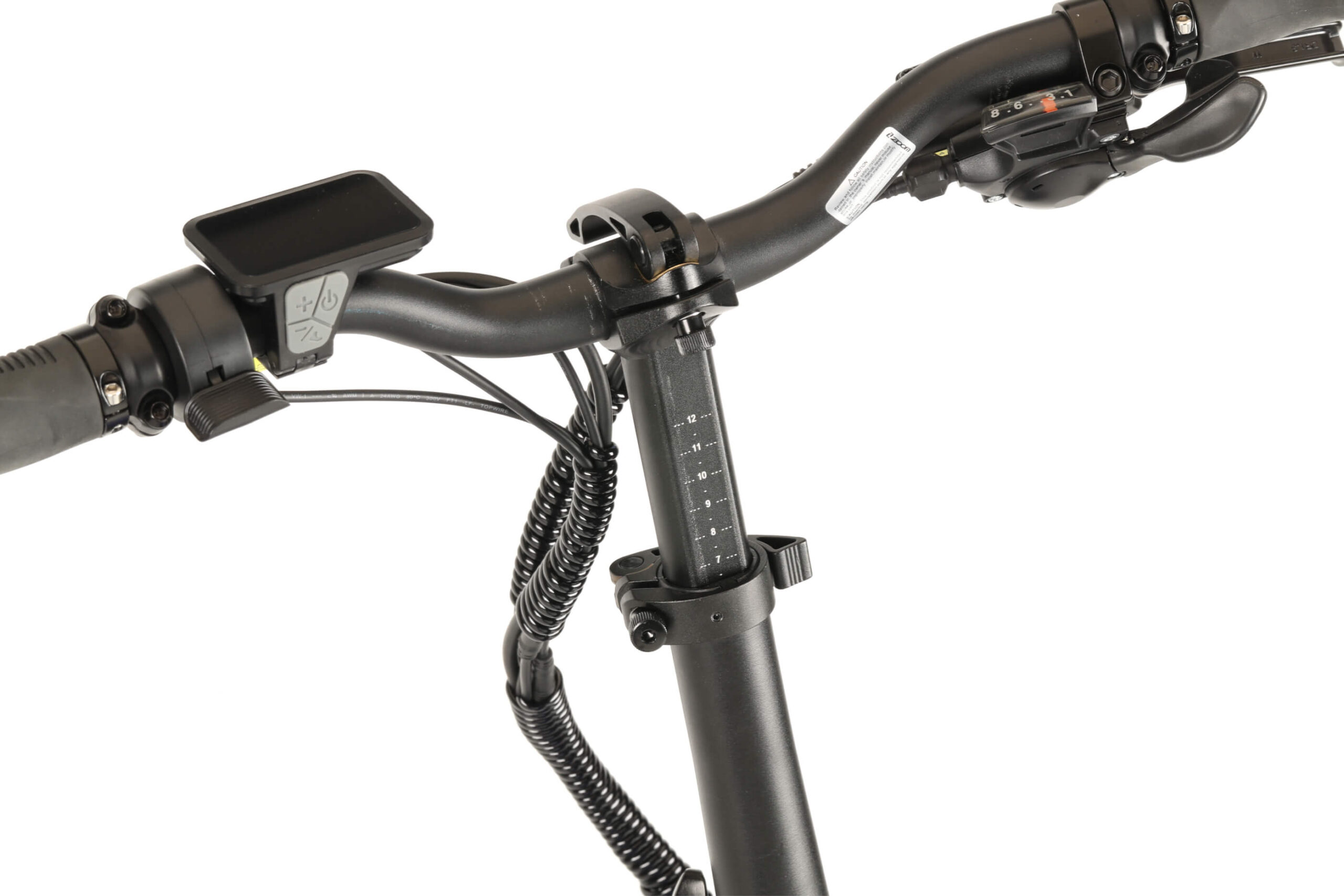

| Display | Color Display, w/ Multi-Function Remote |
| Sensor | Cadence Sensor |
| Max Speed | Up to 20 MPH |
| Range | Up to 45 Miles Per Charge (480Wh) / Extended with 720Wh Option |
| Pedal Assist | 0~5 Level Pedal Assist |
| Charger | 2A / 100-240V Input / 54.6V Output |
| Certification | UL-2849 Certified (Full Electrical System) |
Components
| Frame | 6061-T6 Aluminum Folding Step-Thru Frame |
| Fork | Front Suspension Fork, 50mm Travel |
| Tires | 20″x3.0″ |
| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |

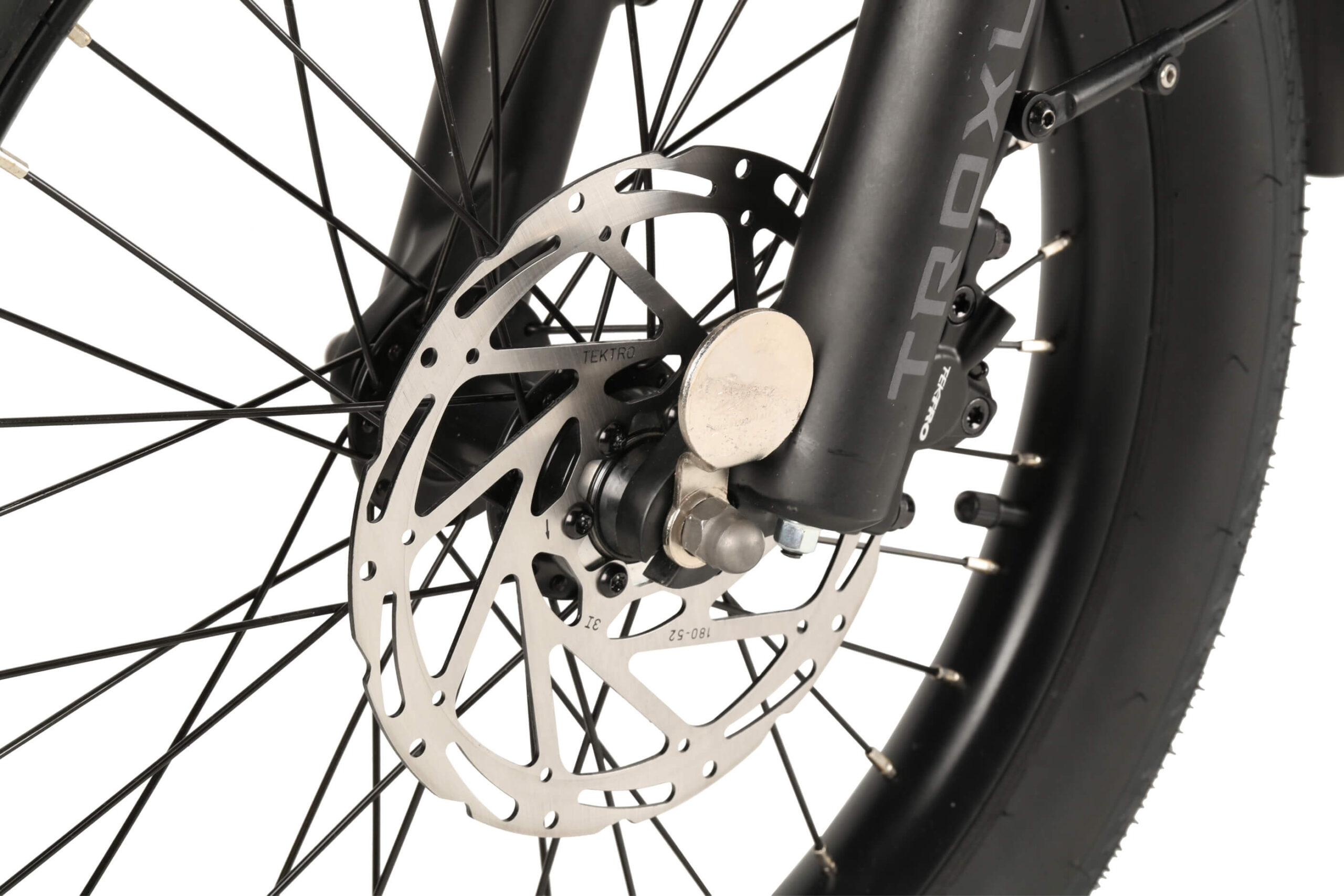

| Brakes | Tektro® Hydraulic, w/ Brake Sensors, Rotors 180mm / 160mm |

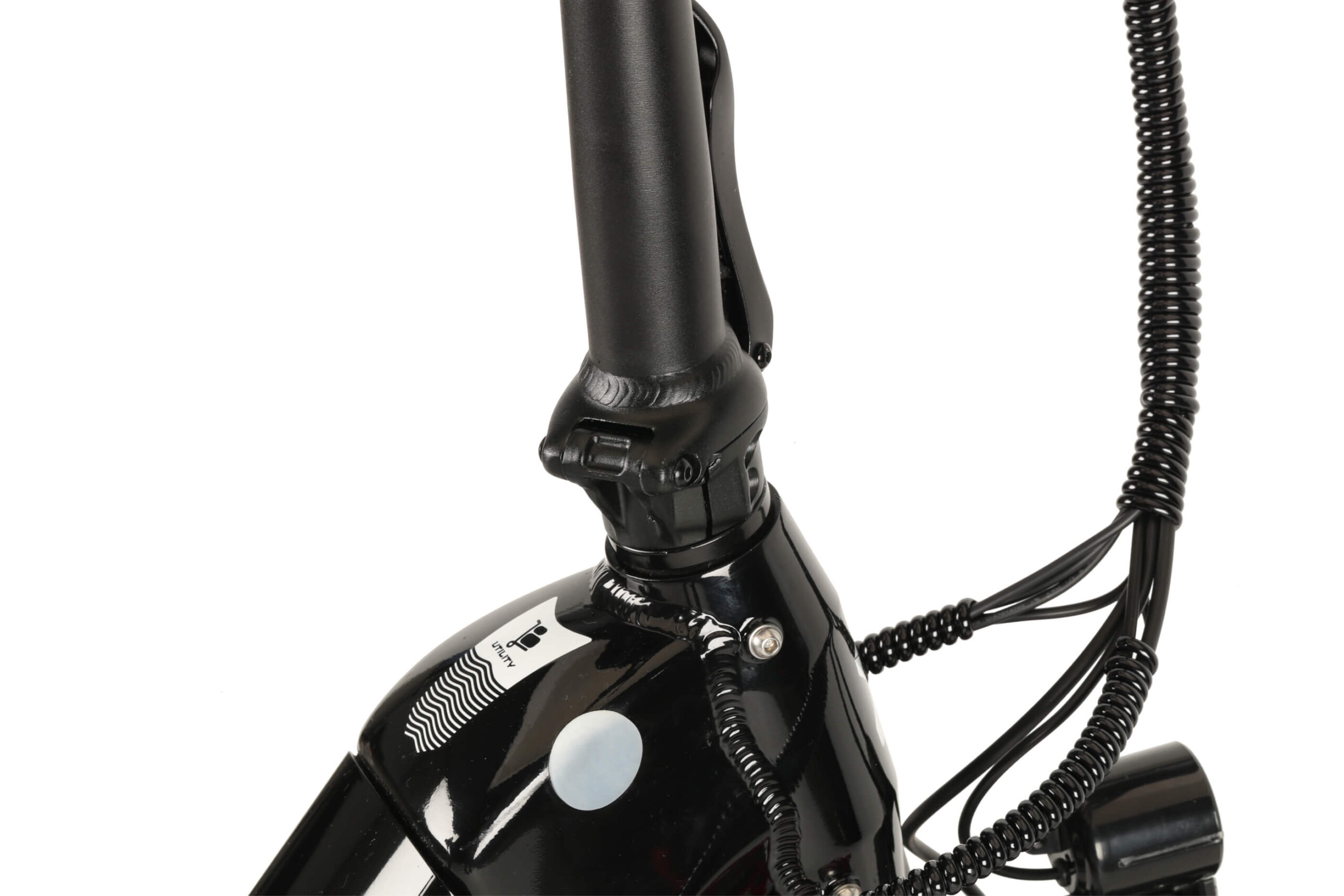

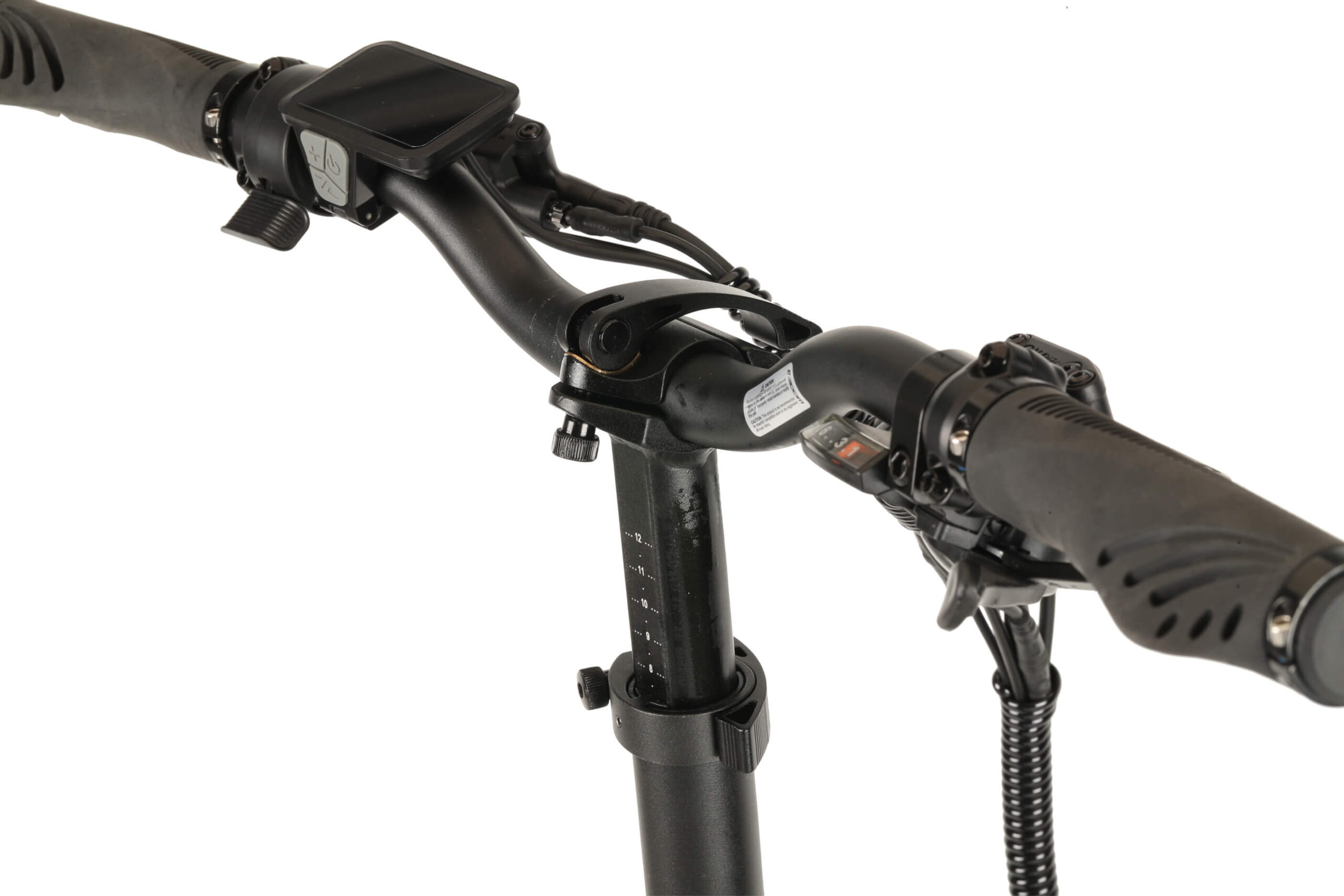

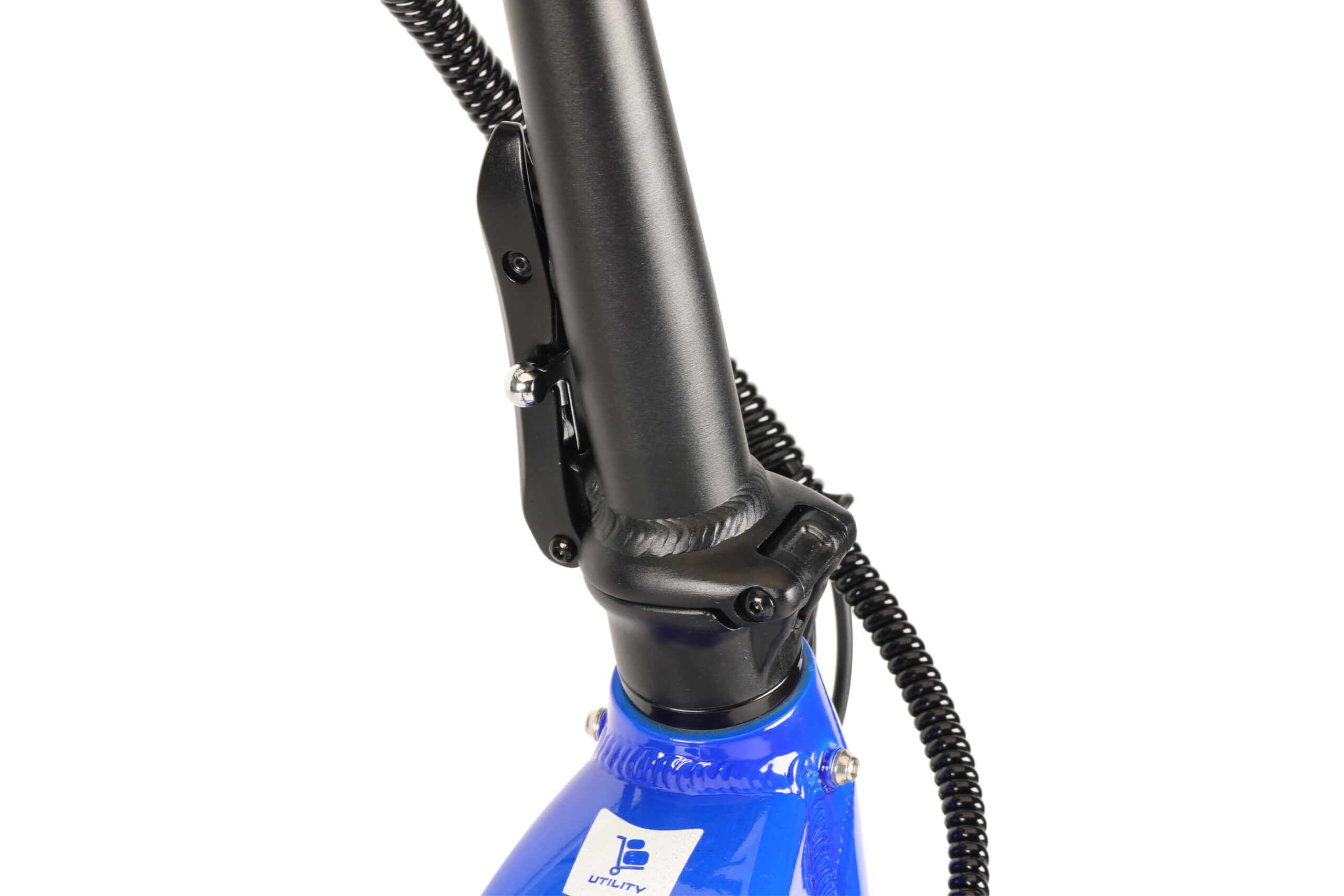

| Stem | Foldable w/ QR Lock, Upper: 200mm, Lower: 240mm |

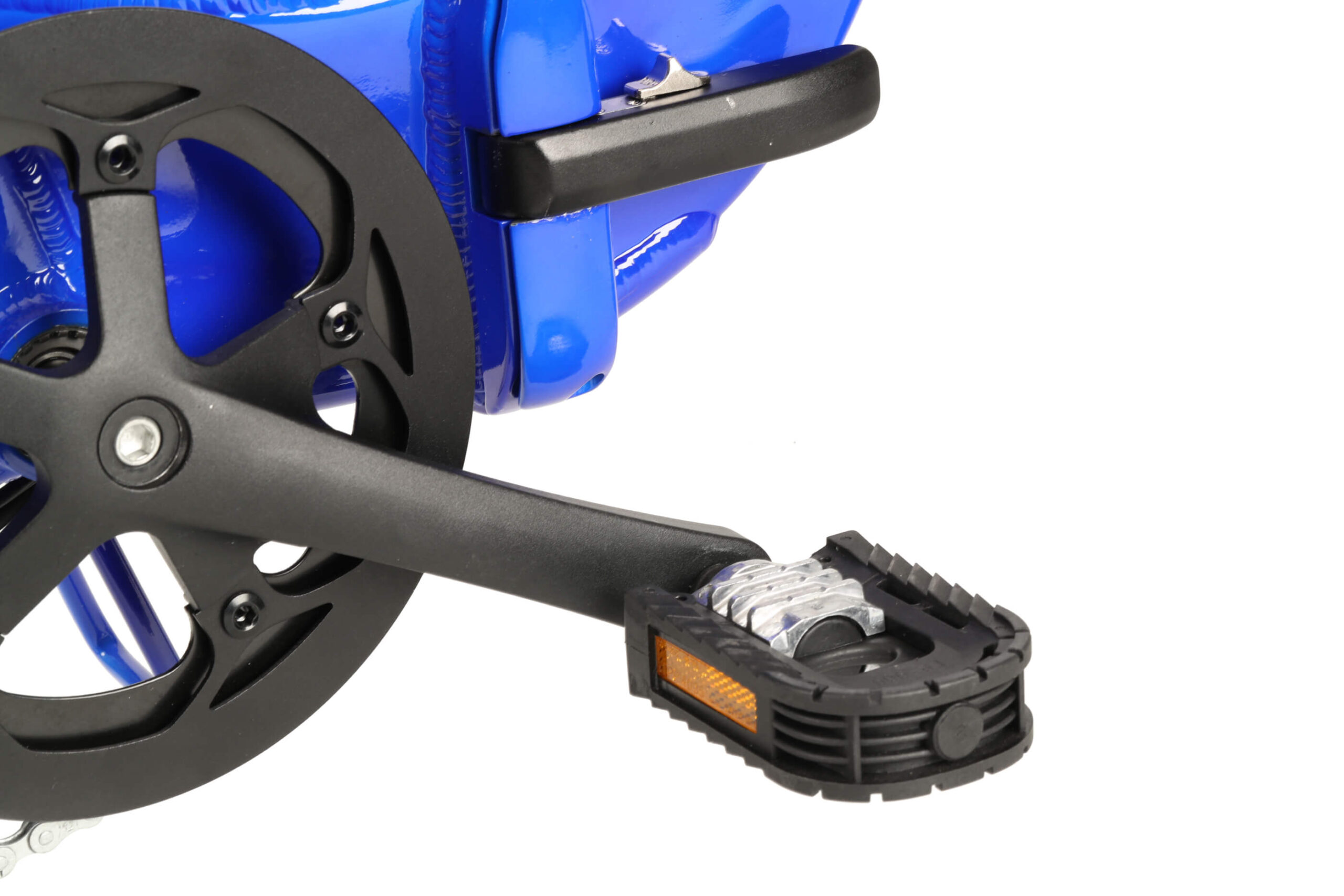

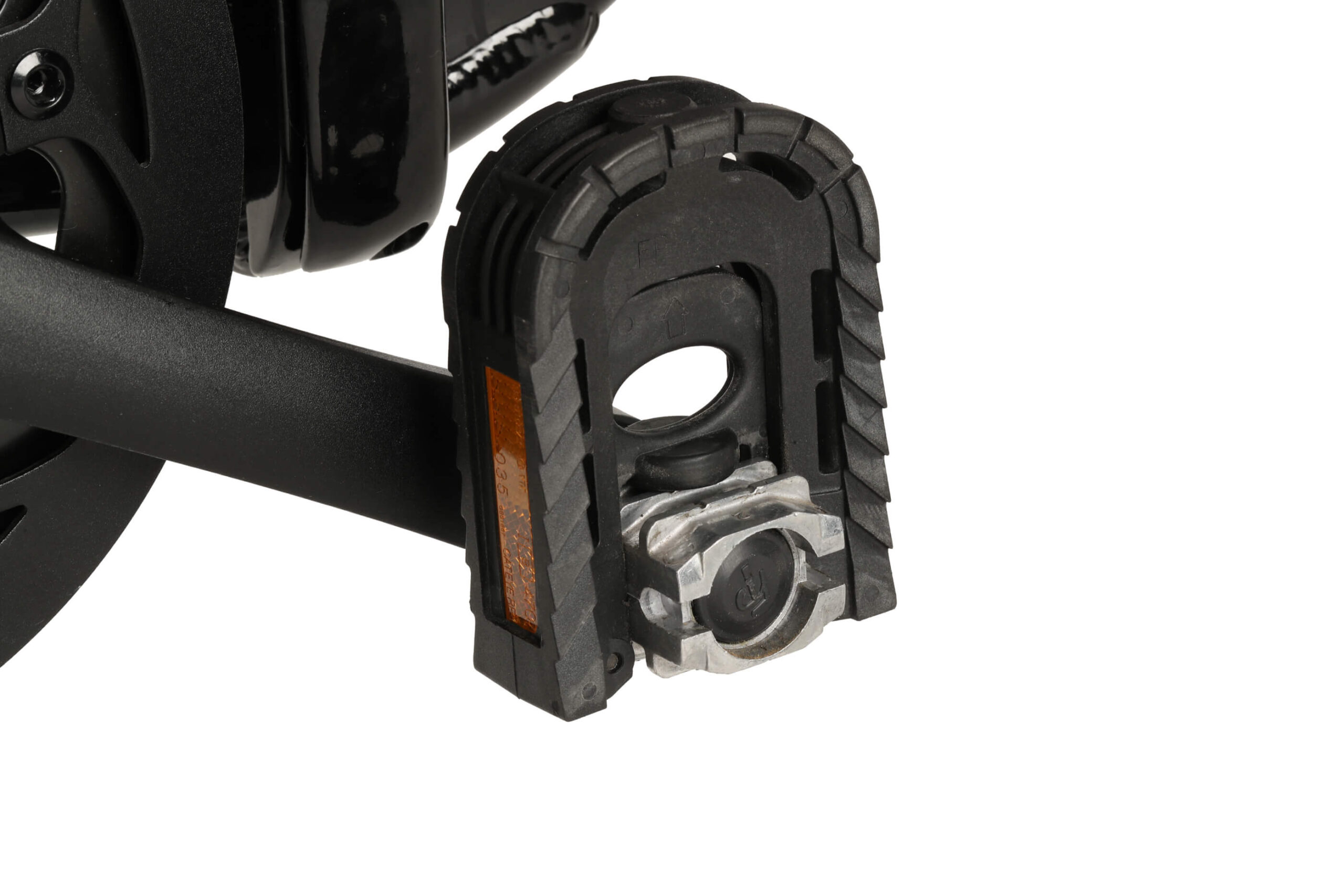

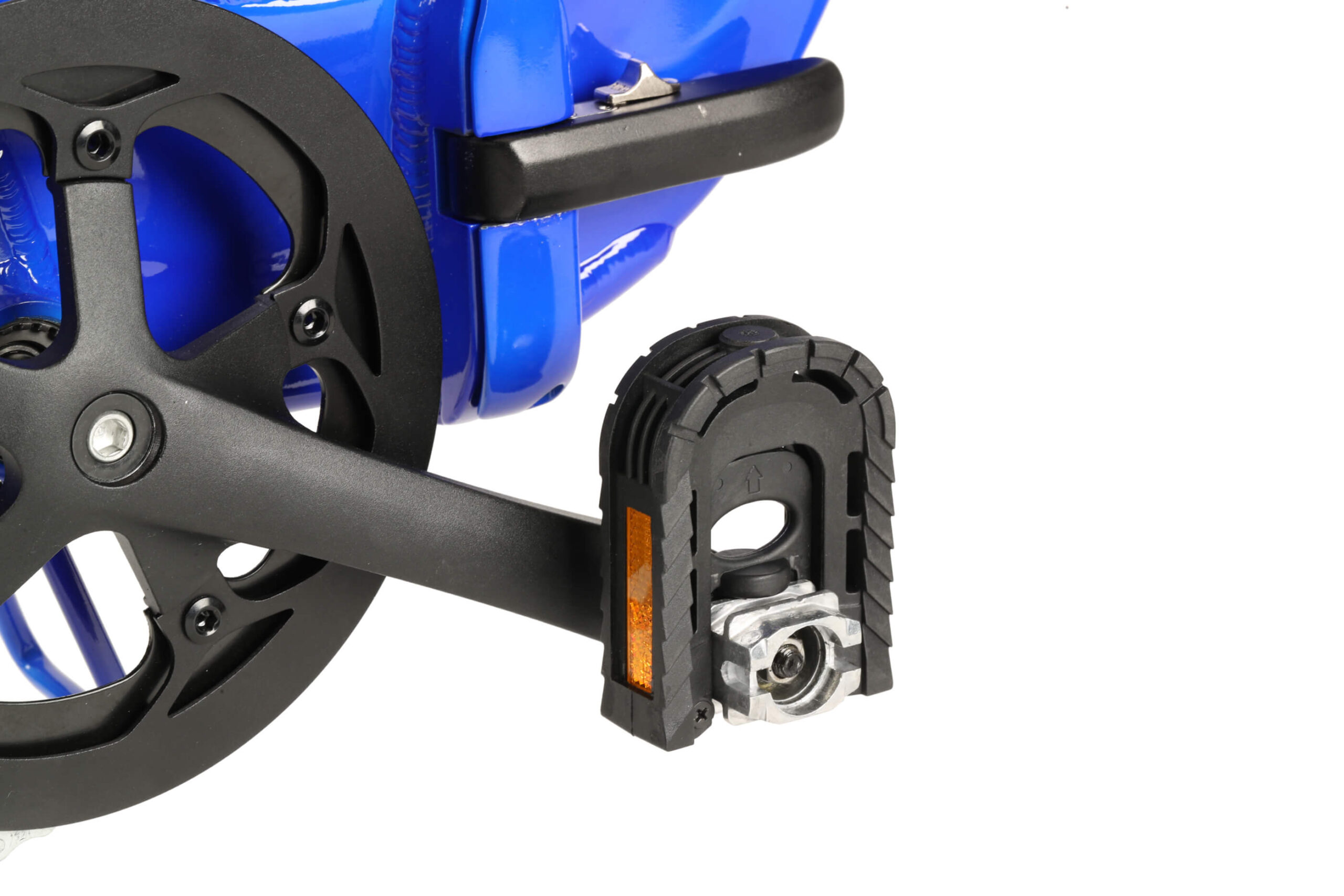

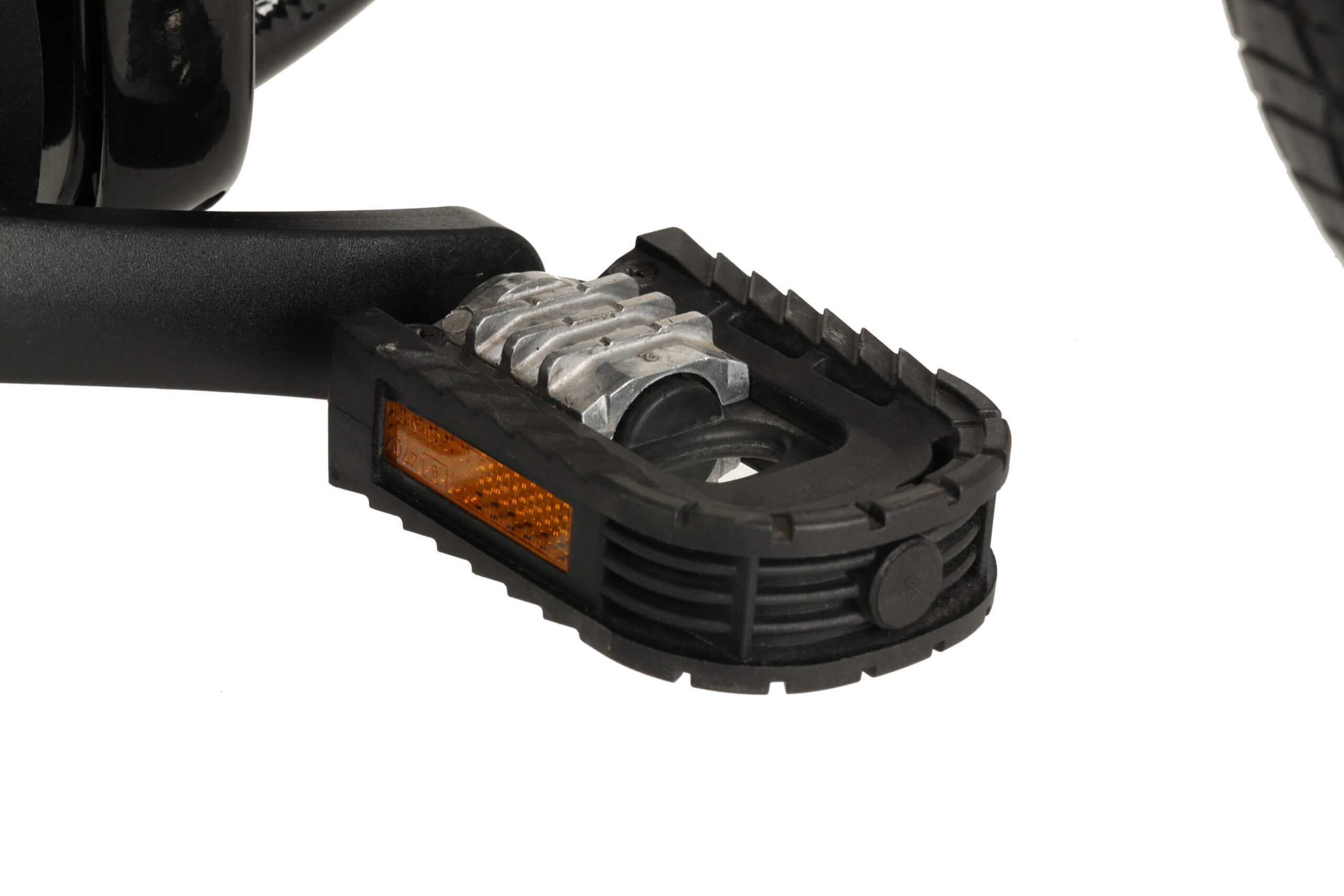

| Pedals | Folding, 9/16? Alloy Platform with Reflectors |
Geometry & Dimensions
| Frame Size | Universal / One Size Fits Most |
| Wheel Size | 20″x3.0″ |
| Seat Tube Length (A) | 406 mm |
| Effective Top Tube (E) | 631 mm |
| Reach (K) | 486 mm |
| Stack (L) | 503 mm |
| Wheelbase (J) | 1139 mm |
General
| Net Weight | 62 lbs |
| Weight Limit | 300 lbs |
| Included Accessories | Semi-Integrated Rear Rack, Plastic Fenders, Adjustable Side Kickstand |
Additional information
| Color | Gloss Black, Vivid Blue |
|---|
