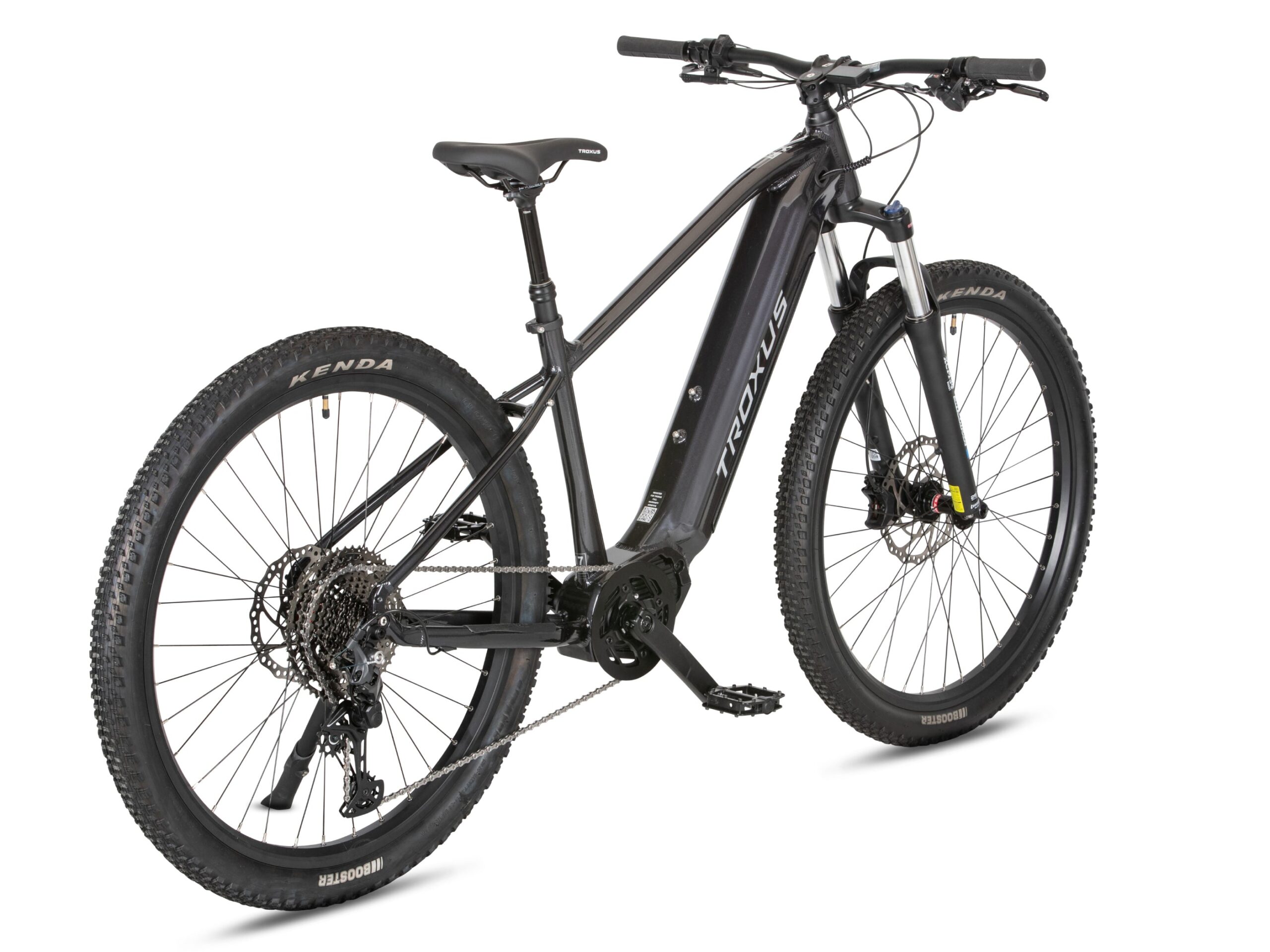

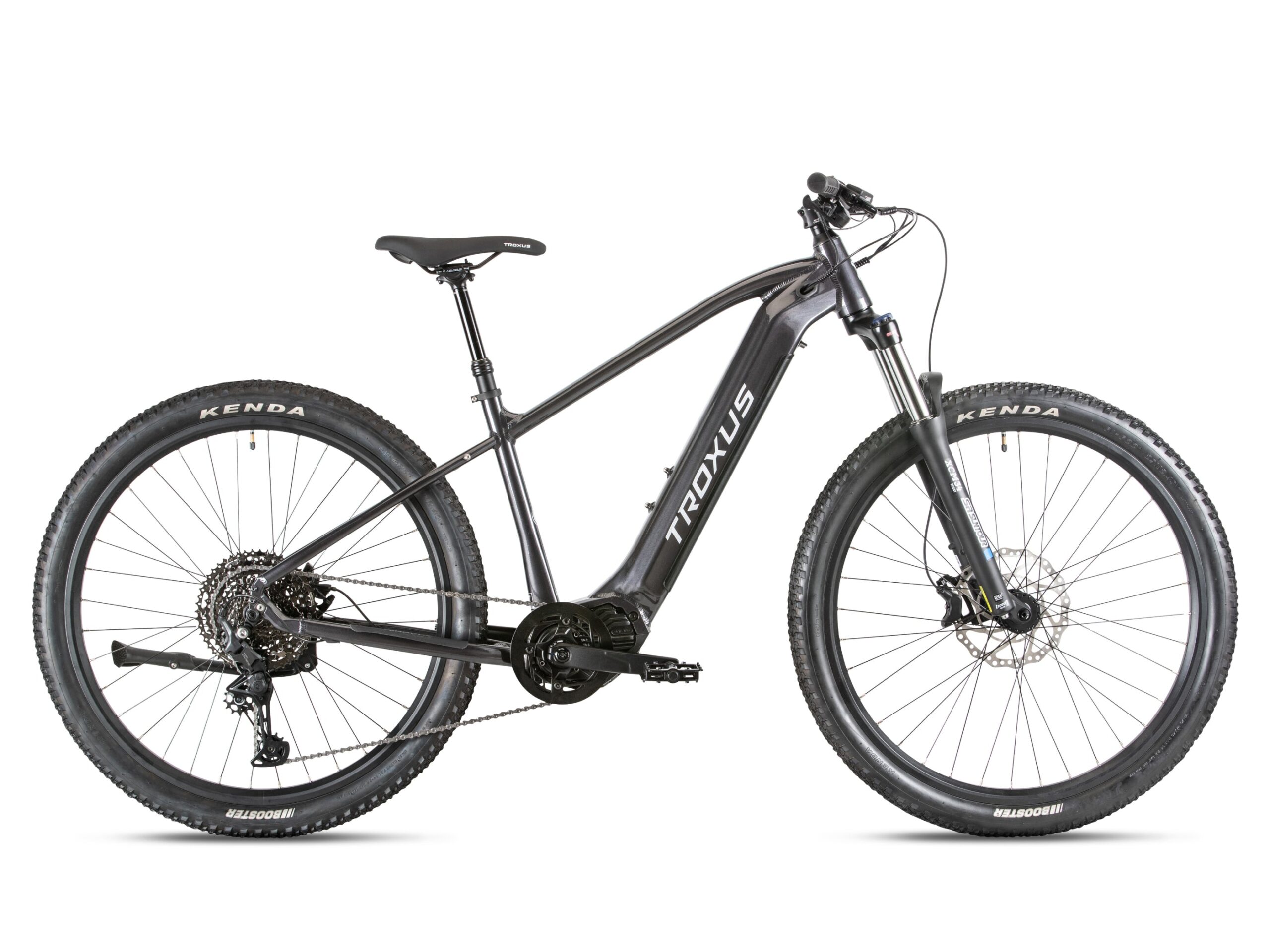

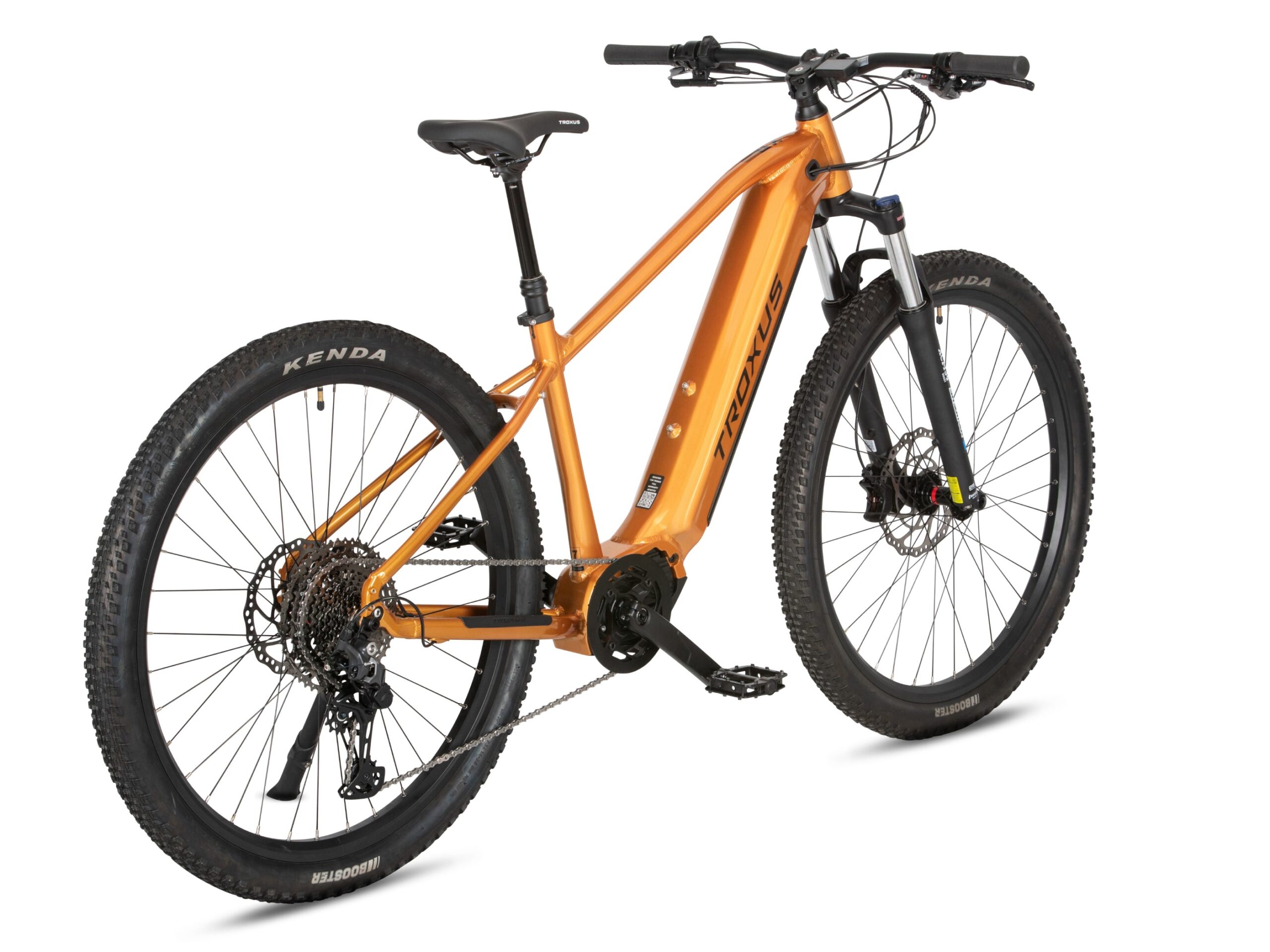

Conquer the trails with the Troxus Trailblazer mid-drive e-MTB. Featuring a Bafang® 500W mid-motor with 130Nm of torque and a UL-certified 720Wh Samsung® battery for up to 60 miles of range. The Shimano® CUES 11-speed drivetrain, Suntour® 120mm suspension fork, and 29″ Kenda® tires deliver trail-ready performance. Complete with a Zoom® dropper post, Tektro® hydraulic brakes, and torque/cadence sensors for natural pedal assist. Available in Small, Medium, and Large frames.
Description
Troxus Trailblazer: Smooth Power for Maximum Adventure
Elevate your off-road experience with the Troxus Trailblazer, a premium mid-drive electric mountain bike engineered for riders who demand peak performance on the trails. Featuring a powerful Bafang® 500-watt mid-motor and a Shimano® CUES 11-speed drivetrain, this ebike delivers intuitive, natural-feeling power that gets you up the steepest climbs and across the roughest terrain. Whether you’re tackling technical singletrack or exploring remote backcountry, the Trailblazer is your ticket to maximum adventure.
Powerful Bafang® Mid-Drive Performance

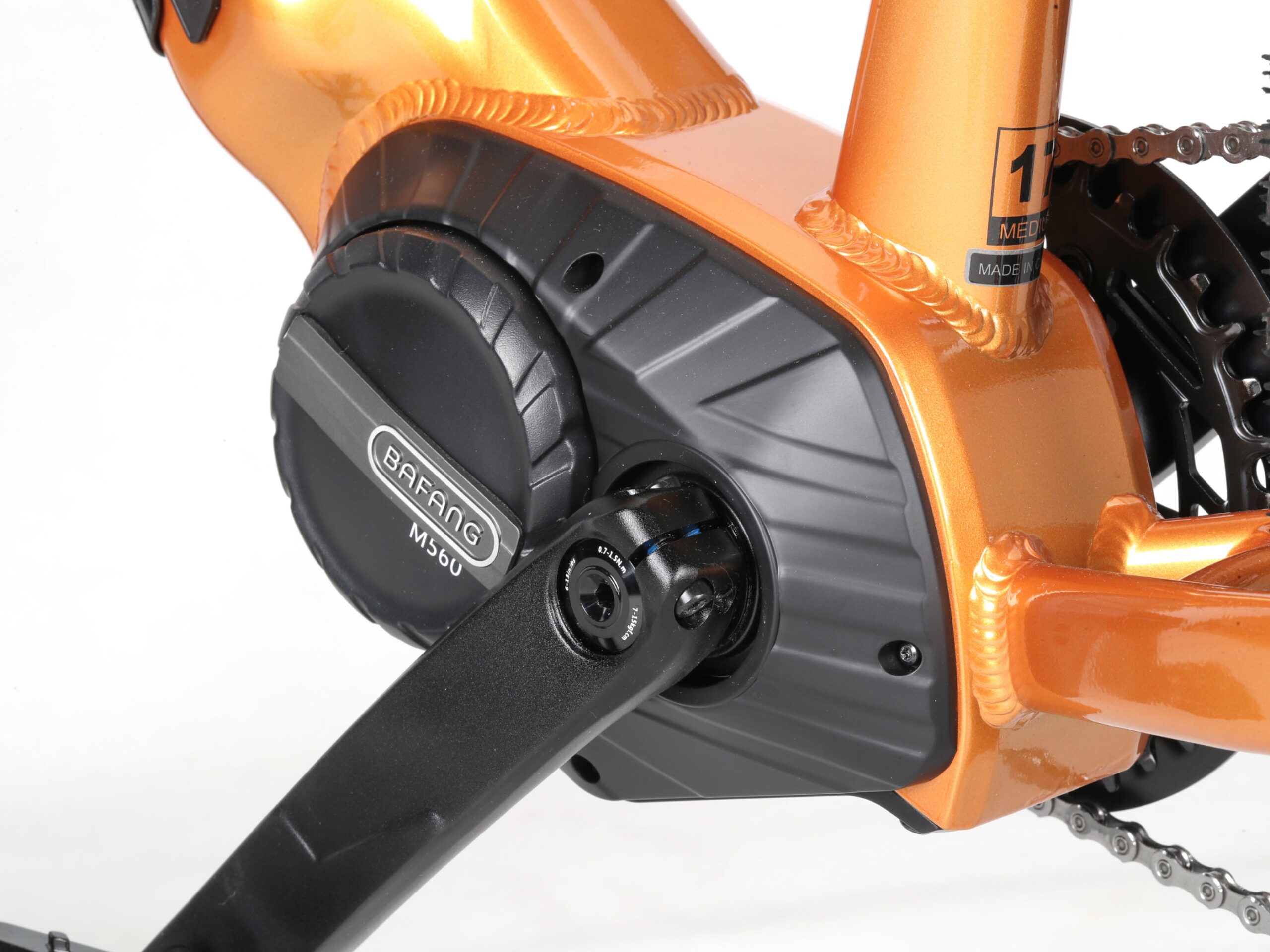

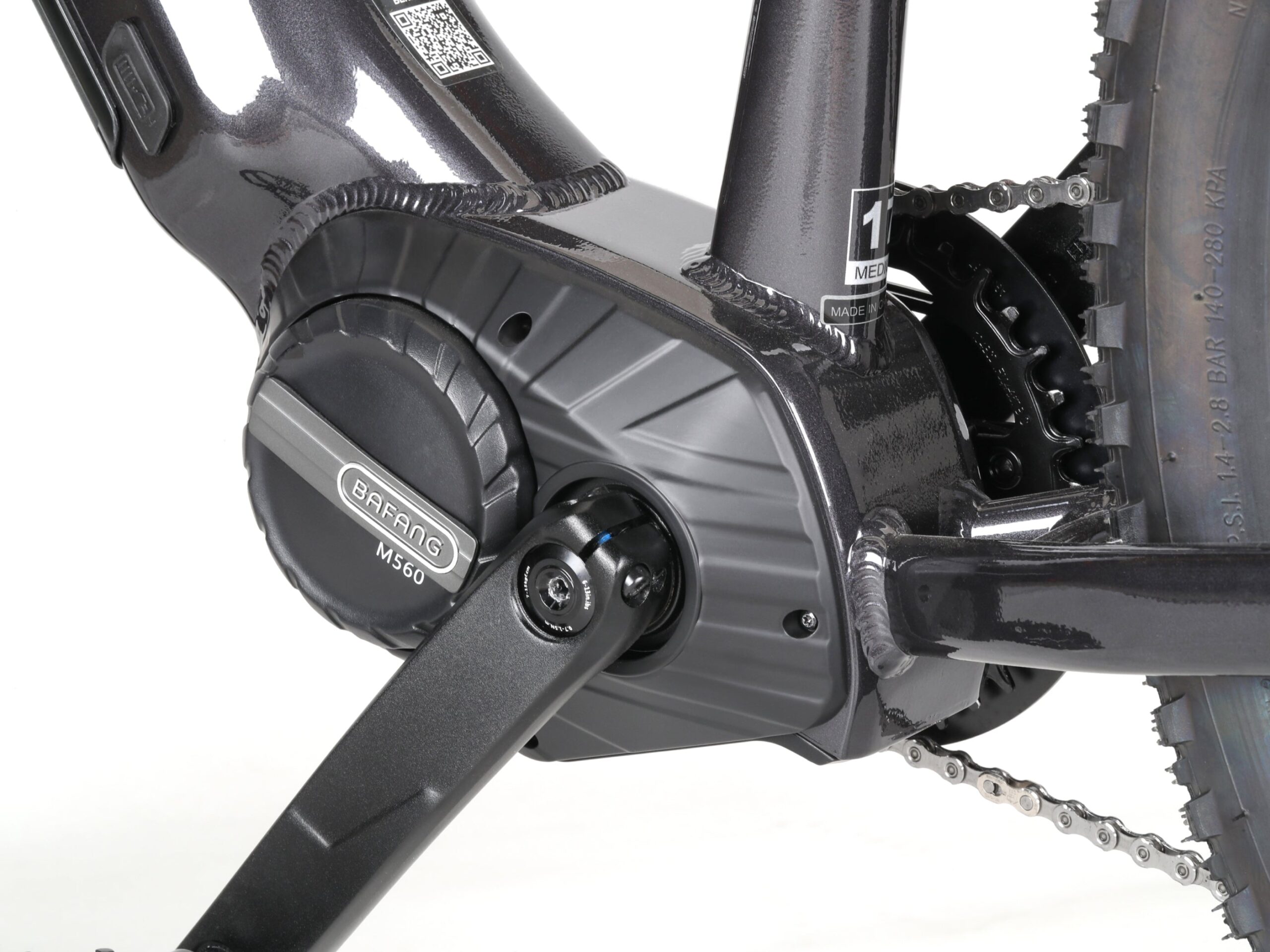

At the heart of the Trailblazer lies a Bafang® 48V/500W mid-drive motor, delivering an impressive 130Nm of peak torque. Unlike hub motors, the mid-drive design leverages your bike’s gears, providing exceptional hill-climbing capability and efficient power delivery exactly where you need it. The motor includes integrated torque and cadence sensors for incredibly responsive and intuitive pedal assistance. Choose from 5-level pedal assist (Eco, Tour, Sport, Sport +, Boost) to fine-tune your ride, from extending range to conquering challenging ascents. The Trailblazer is a Class 1 ebike for legal trail access, with an optional Class 2 thumb throttle available for casual cruising.
Long-Range Samsung® Battery Technology
Explore further with confidence thanks to the UL-2271 certified 48V 15Ah (720Wh) battery featuring high-quality Samsung® cells. This internally mounted, removable lithium-ion pack provides a maximum range of up to 60 miles per charge, giving you all-day riding capability on a single charge. The battery integrates seamlessly into the aluminum frame for a clean, balanced appearance and optimal weight distribution.
Trail-Ready Component Package

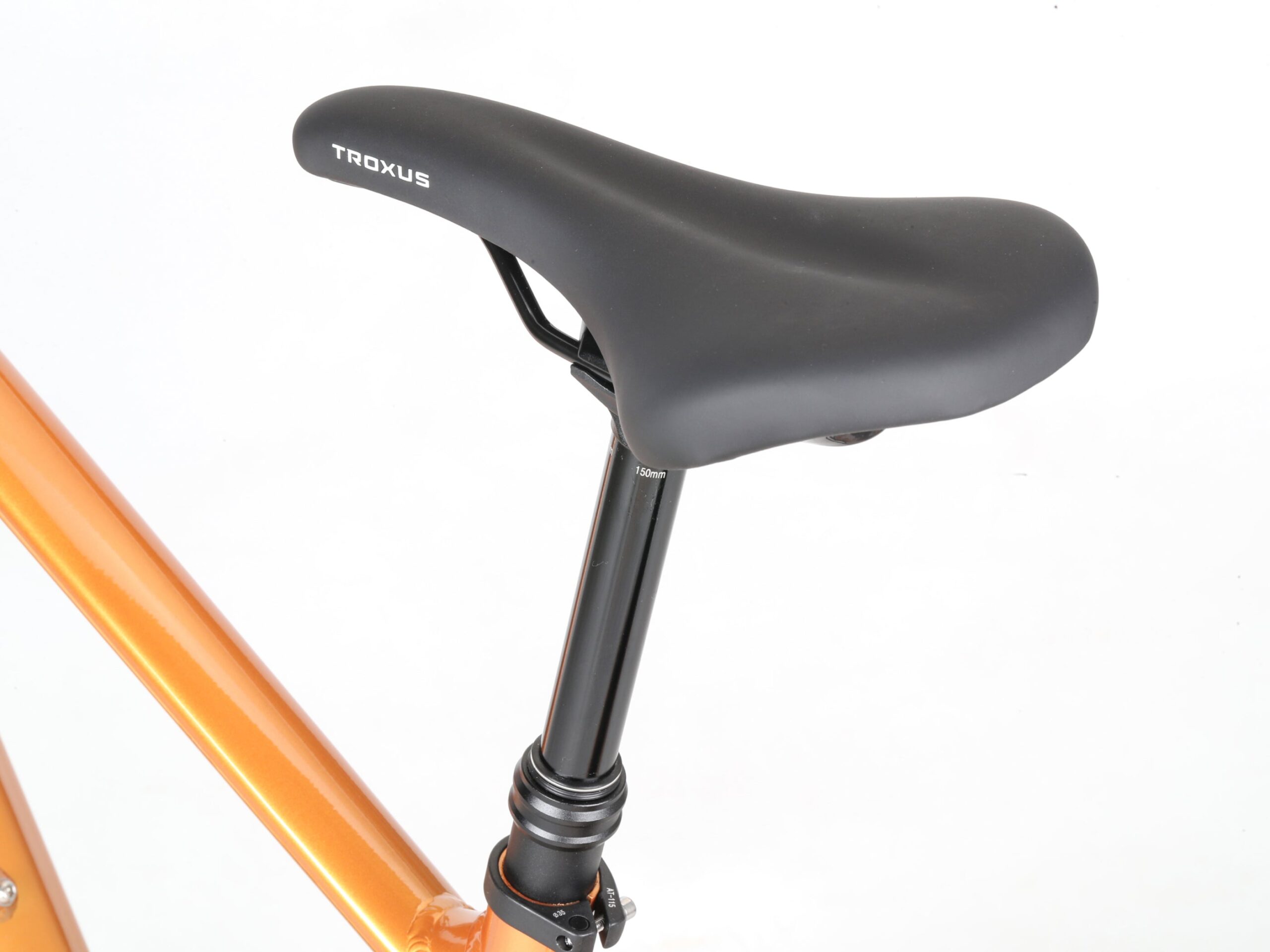

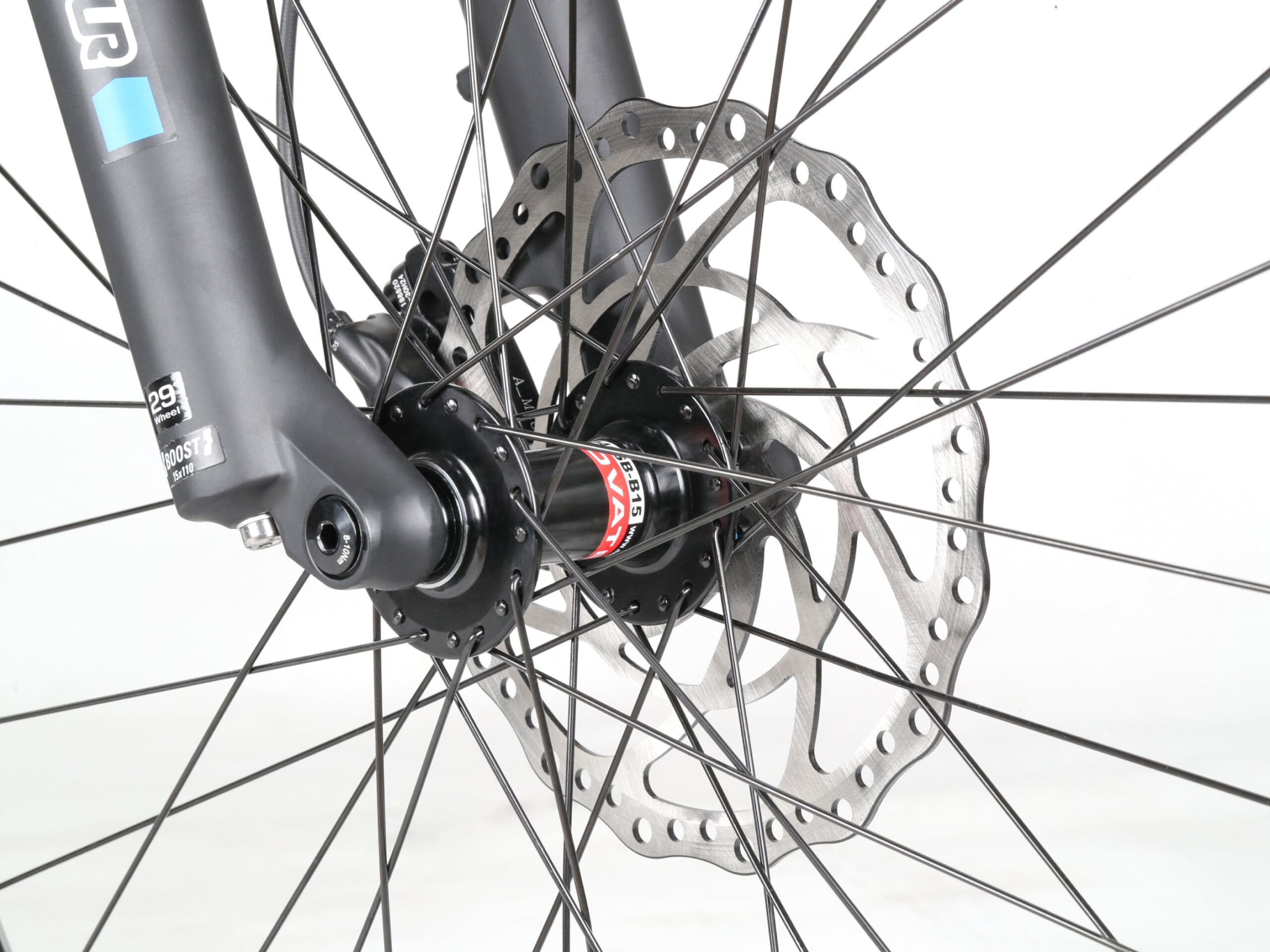

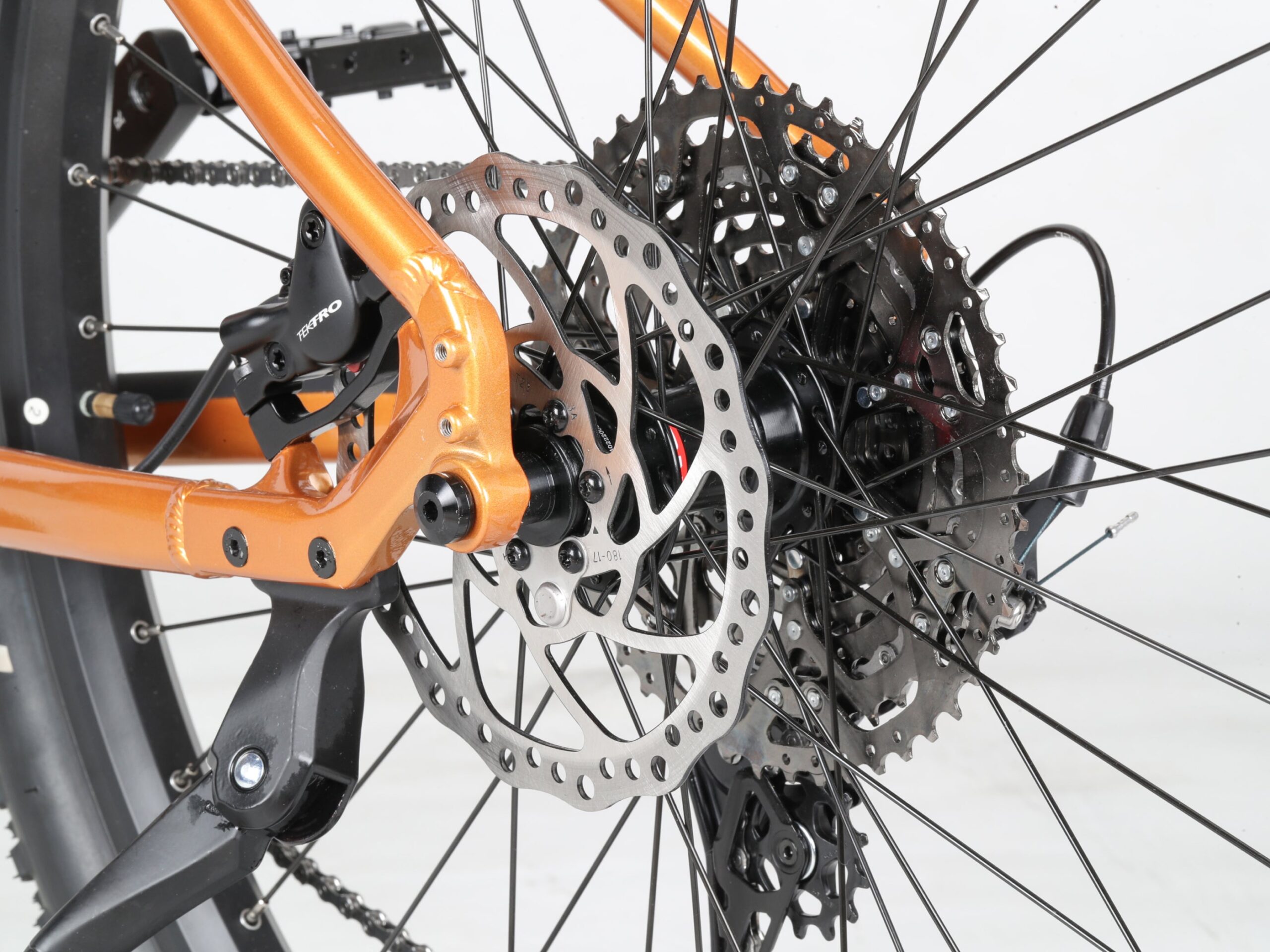

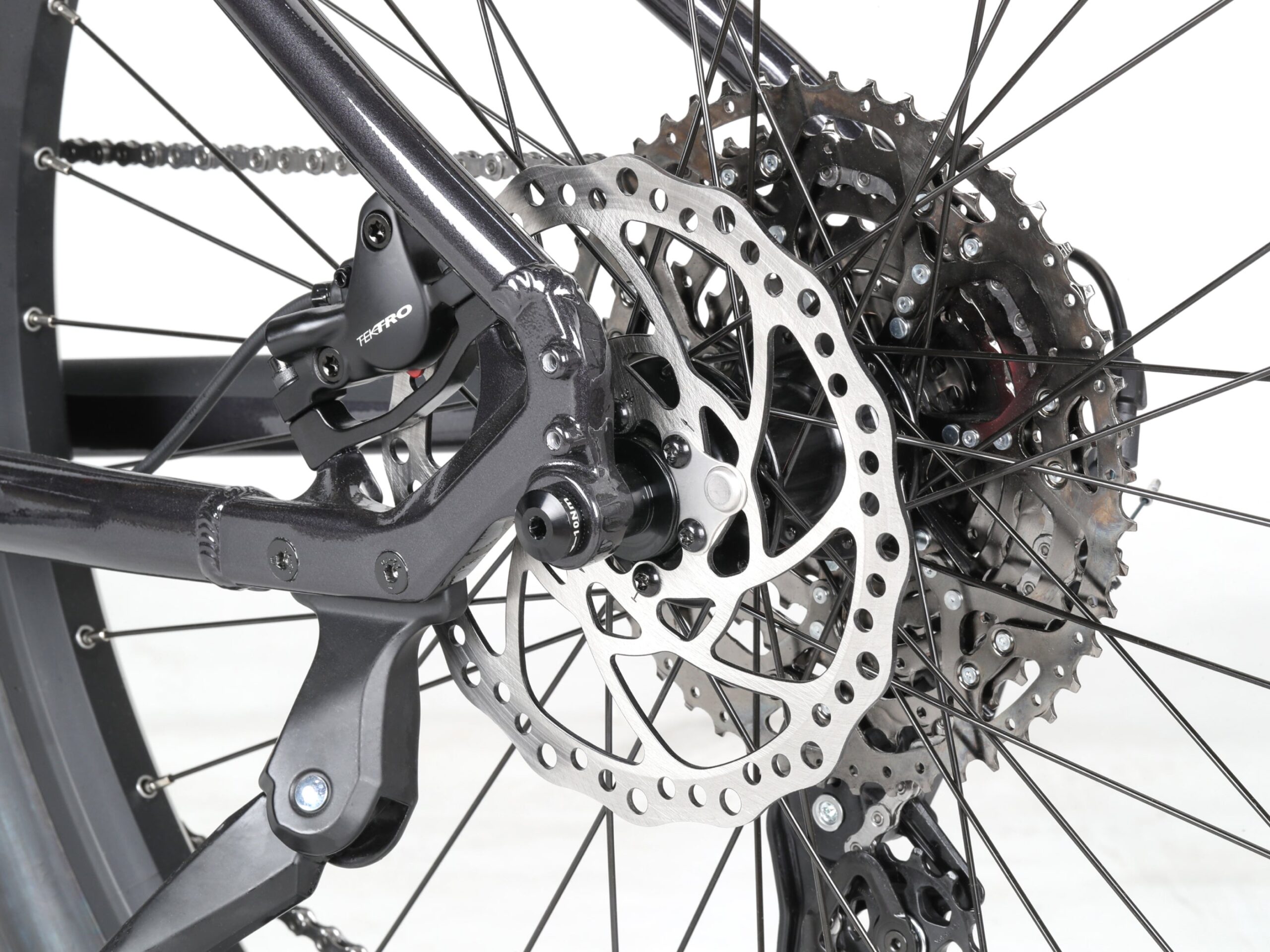

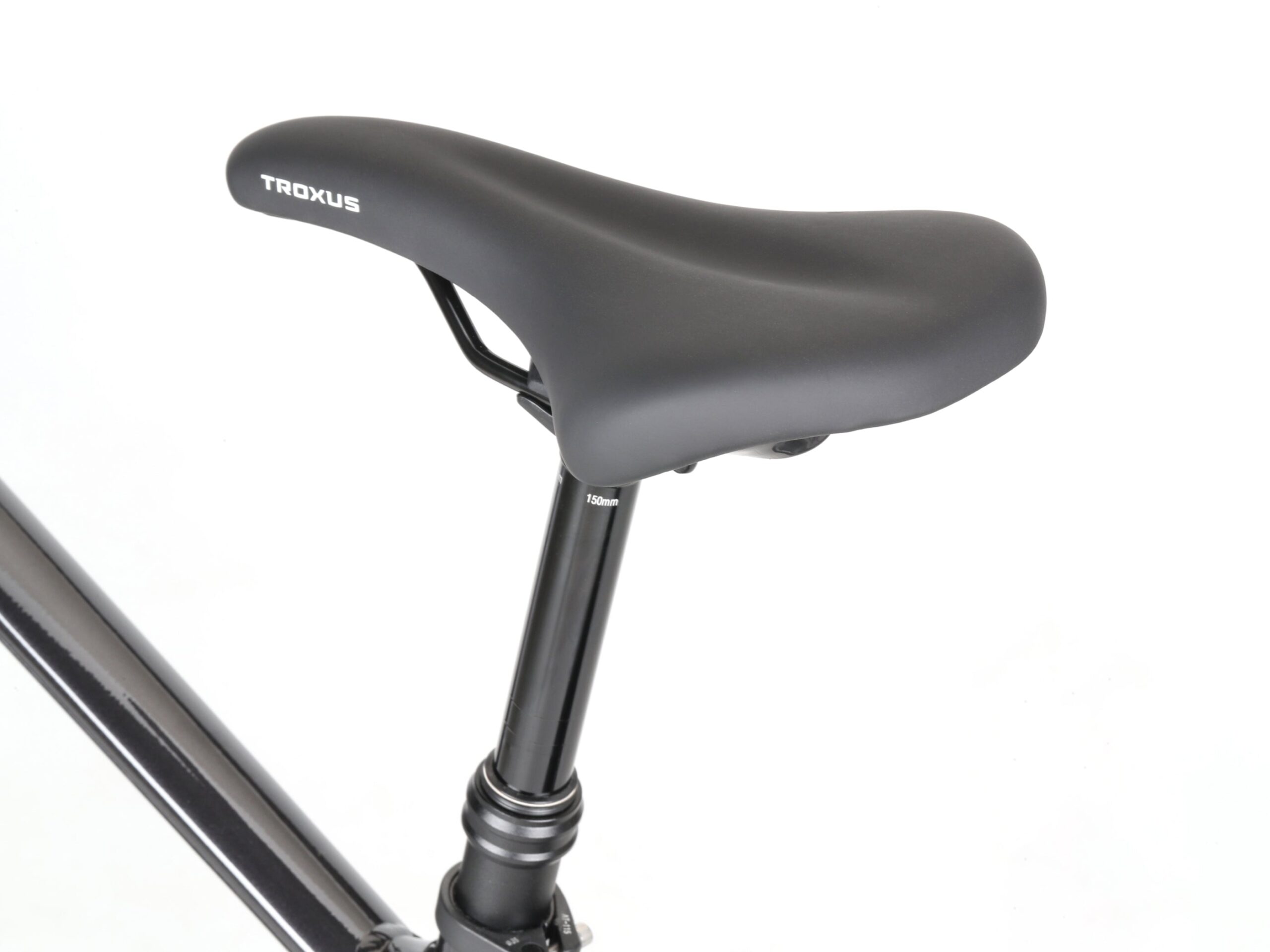

The Trailblazer is equipped with a premium Shimano® CUES E-bike specific 11-speed drivetrain, featuring a wide-range 11-50T cassette for smooth, precise shifting across all terrain types. The Suntour® XCM 34 suspension fork with 120mm travel and 15mm thru-axle soaks up rocks and roots, while 29″x2.4″ Kenda® MTB Booster tires provide excellent traction and control. Tektro® hydraulic brakes with 203mm front and 180mm rear rotors deliver confident stopping power in all conditions. A Zoom® dropper post (125-150mm drop, depending on frame size) allows instant saddle adjustment for descending confidence and technical maneuvering.
Precision Engineering and Durability
Built around a robust aluminum frame, the Trailblazer features modern trail geometry with a 66.5° head tube angle and 74° seat tube angle for stable, confident handling. The frame is designed with thru-axles front and rear (15mm front, 12mm rear Boost 148mm) for maximum stiffness and wheel security. The Bafang® color display with Bluetooth provides clear ride data and connectivity, while the multi-function remote keeps controls at your fingertips. With a maximum load capacity of 300 lbs and a net weight of 60.5 lbs, this bike strikes the perfect balance of durability and rideability.
Technical Specifications
E-System
| Motor | Bafang® 48V/500W Mid-Motor, 130Nm Max. Torque |
| Battery | UL-2271 Certified, 48V/15Ah (720Wh) with Samsung® Cells |

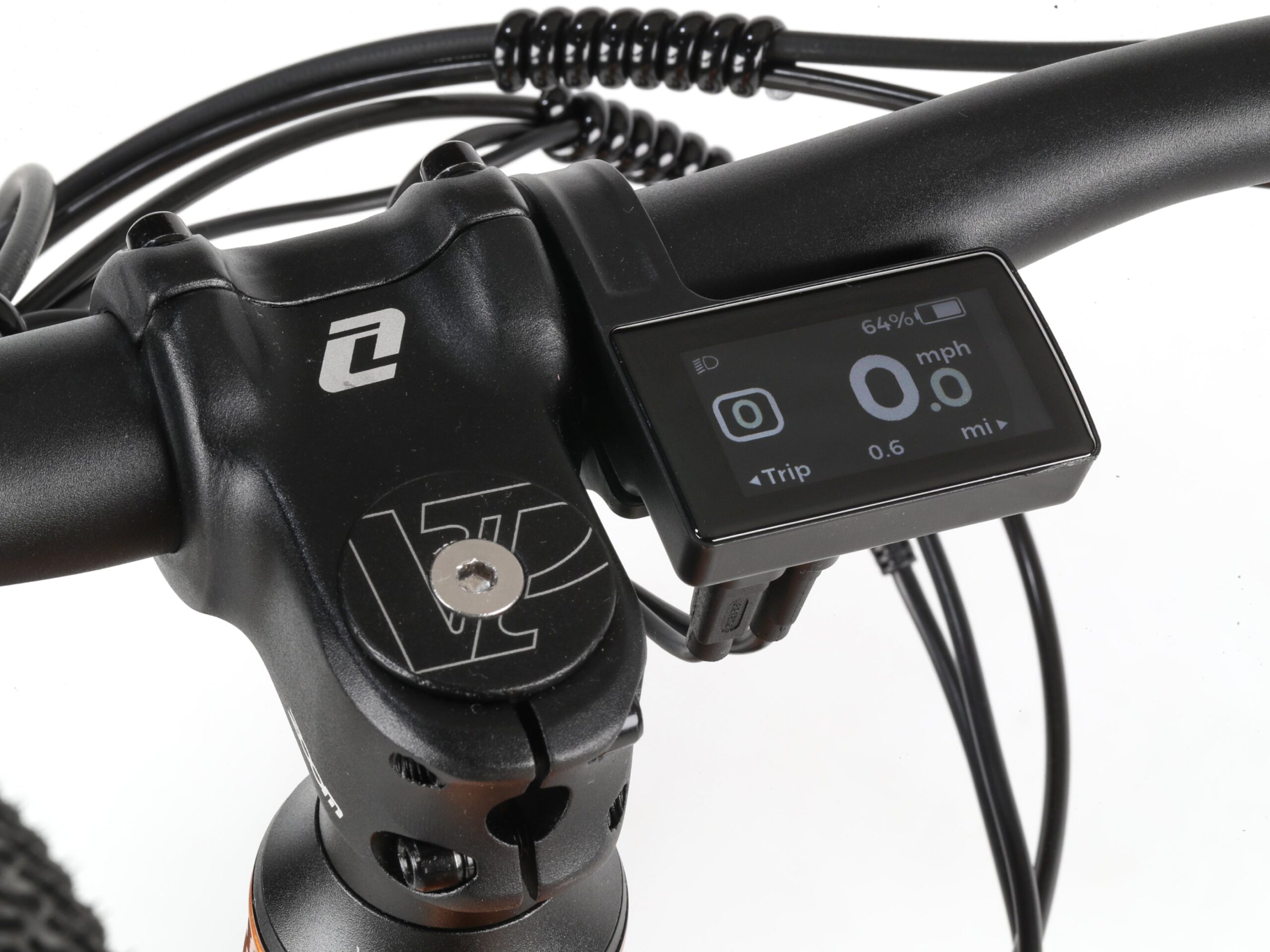

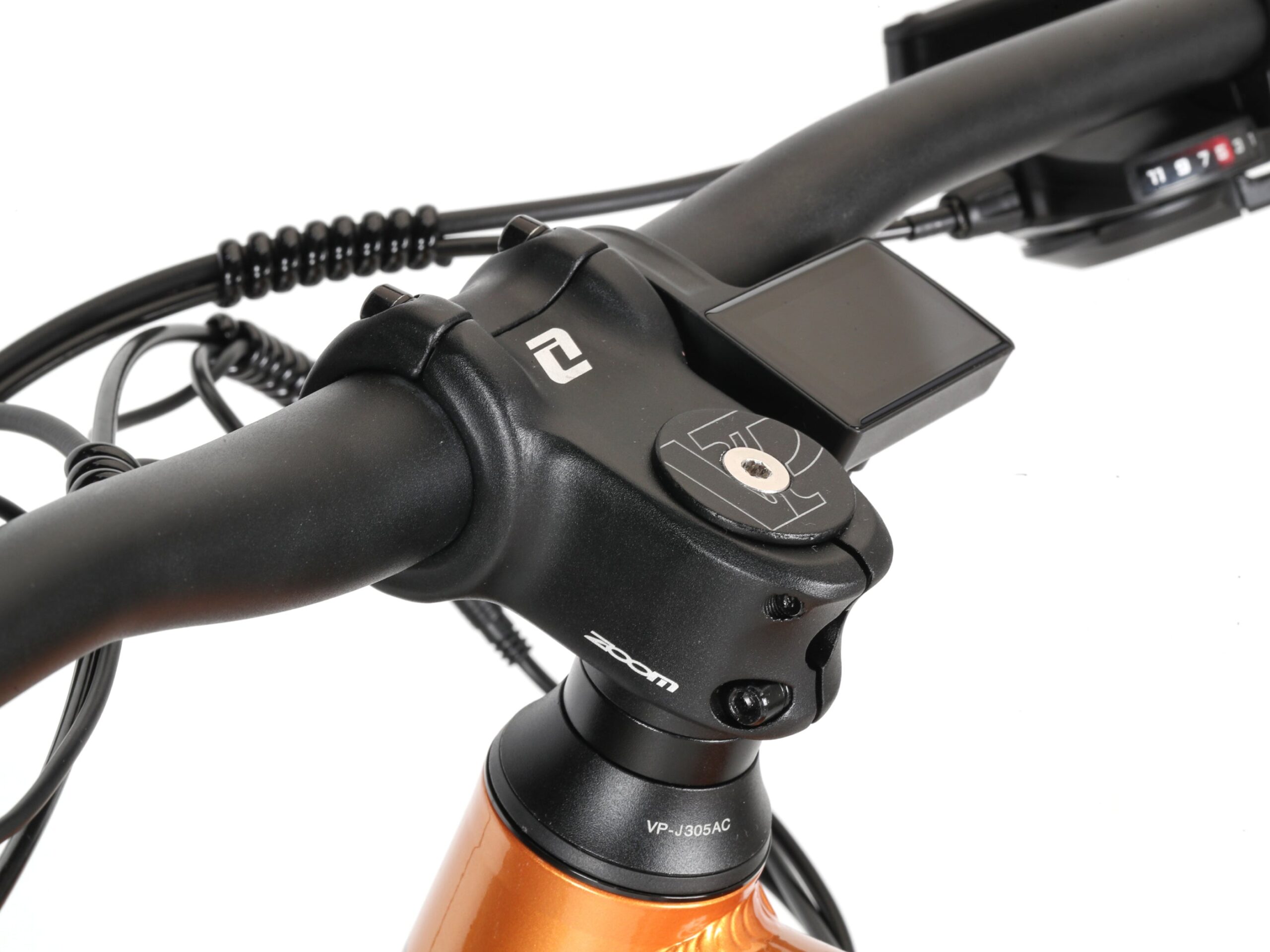

| Display | Bafang® Color Display, Bluetooth, w/ Multi-Function Remote |
| Sensor | Torque & Cadence Sensors Included In Mid-Motor |

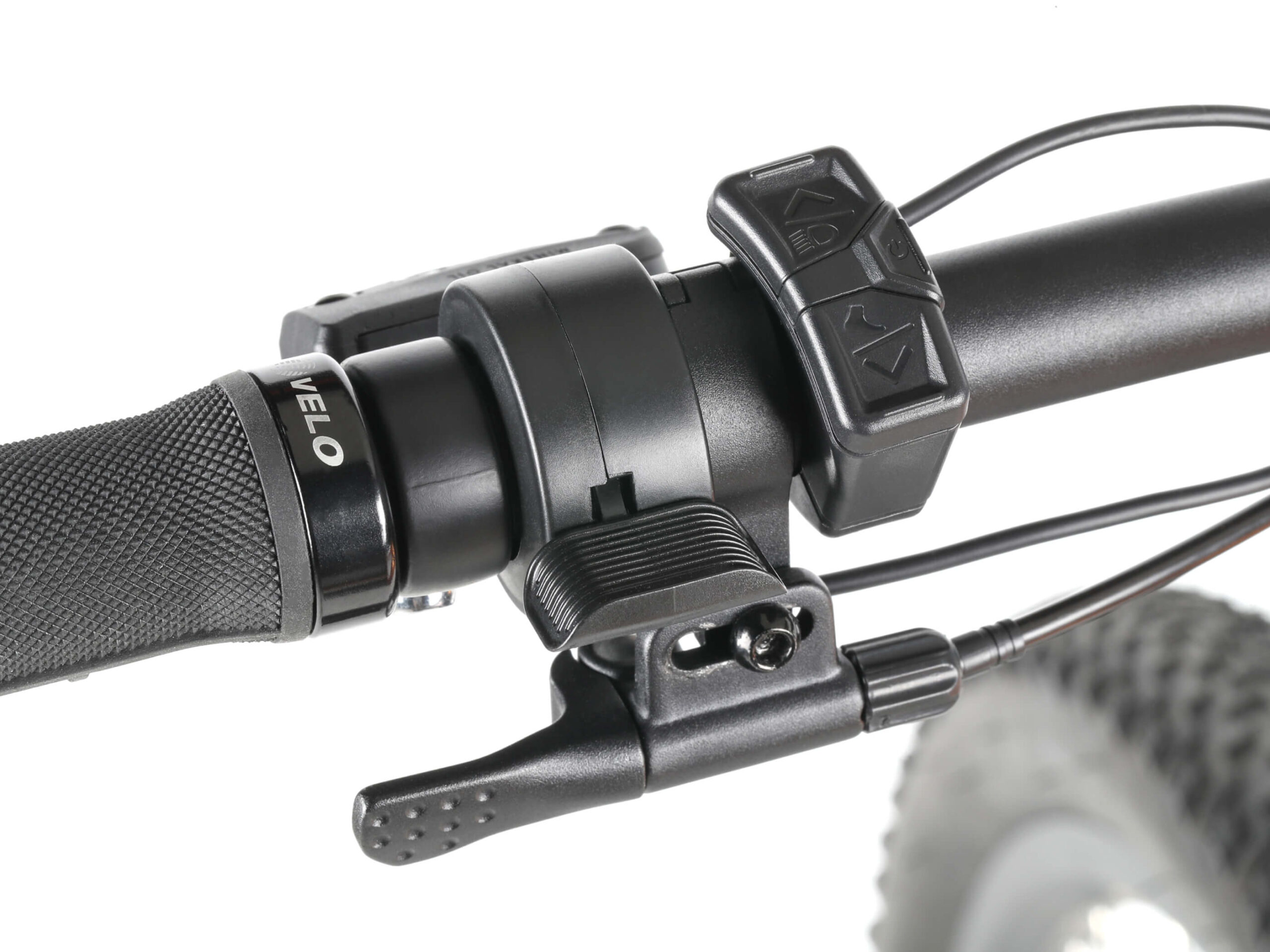

| Throttle | Optional Thumb Throttle on Handlebar (Class 2) |
| Pedal Assist | 5-Level (Eco, Tour, Sport, Sport +, Boost) |
| Max Speed | 20 MPH (Pedal Assist) |
| Max Range | Up to 60 Miles Per Charge |
| Charger | 3A / 100-240V Input / 54.6V Output |
Components
| Frame | Aluminum Frame, Internal Battery |
| Fork | Suntour® XCM 34 Suspension Fork, 120mm Travel, 15mm Thru-Axle |
| Tires | KENDA® MTB Booster 29″x2.4″ |
| Rear Derailleur | Shimano® CUES, SGS, 11-Speed |
| Cassette | Shimano® 11-Speed, 11-50T |

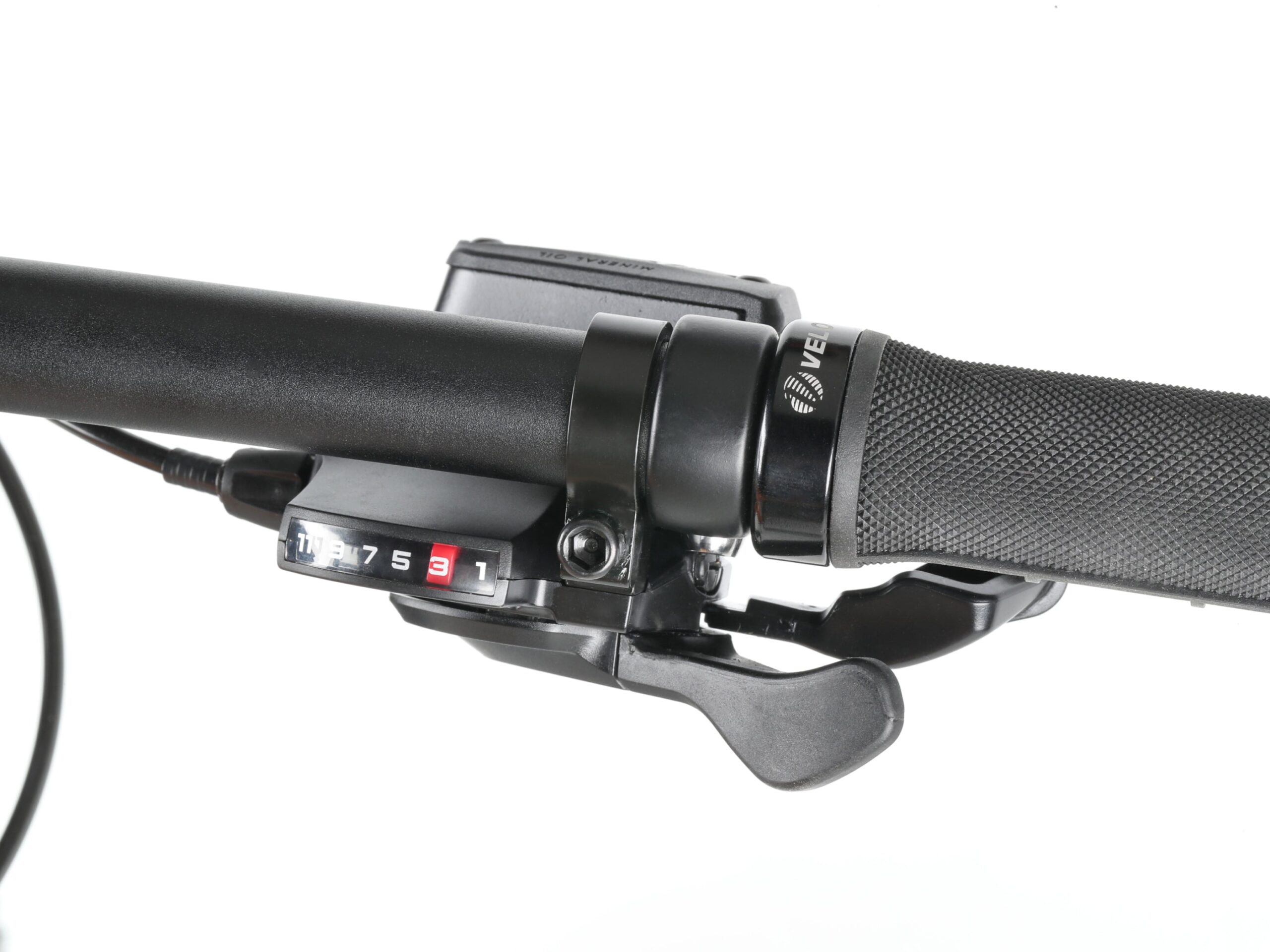

| Shifter | Shimano® CUES 11-Speed |
| Brakes | Tektro® Hydraulic, w/ Brake Sensors / Rotors: 203mm Front / 180mm Rear |
| Crankset | Aluminum, Bafang® 36T, w/ Alloy Chainguard, 170mm |
| Seat Post | 30.9mm, Zoom® Dropper Post (125mm Small / 150mm Medium & Large) |
| Hubs | Novatech Sealed Bearing, Thru-Axle: Front 15x110mm Boost / Rear 12x148mm Boost |
| Rims | Alloy, Double Wall, 30mm Inner Width, 36H |
| Handlebar | Alloy, 31.8mm x 760mm, 25mm Rise |
Weight & Load
| Net Weight | 60.5 lbs |
| Weight Limit | 300 lbs Maximum Load |
Size & Fit
The Trailblazer is available in three frame sizes to accommodate a wide range of riders, featuring modern geometry for optimal trail performance.
| Measurement | Small (15″) | Medium (17″) | Large (19″) |
|---|---|---|---|
| Recommended Height | 5’0″ – 5’5″ | 5’5″ – 5’10” | 5’9″ – 6’4″ |
| Seat Tube Length (A) | 381 mm | 432 mm | 483 mm |
| Effective Top Tube (E) | 605 mm | 615 mm | 639 mm |
| Head Tube Angle (D) | 66.5° | 66.5° | 66.5° |
| Seat Tube Angle (B) | 74° | 74° | 74° |
| Wheelbase (J) | 1223 mm | 1233 mm | 1257 mm |
| Frame Reach (K) | 417 mm | 427 mm | 451 mm |
| Frame Stack (L) | 656 mm | 656 mm | 656 mm |
Additional information
| Color | Burnt Orange, SG Charcoal |
|---|---|
| Frame | L, M, S |
